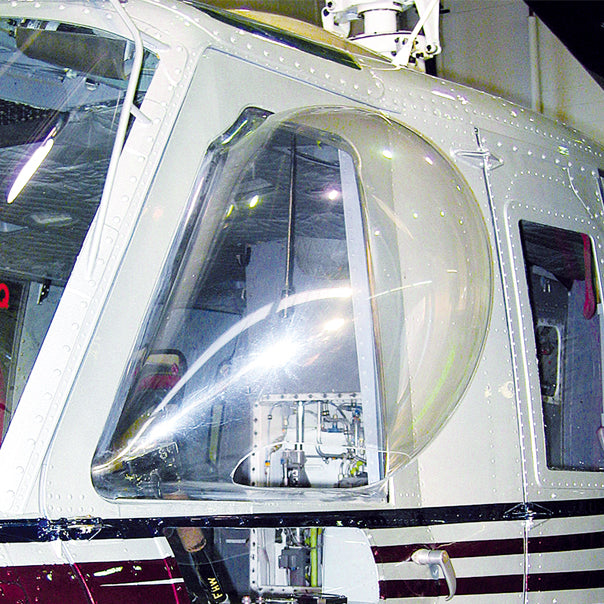

Vertical Reference Door Modification Kit LH

Part Number: D412-711-021
Aircraft Models: Bell - 212

Price:
Left seat long line operation has never been more straightforward. DART Aerospace has a complete line of accessories for left hand pilot operations, accessories that will improve your performance and enhance your comfort. With DART Aerospace's Vertical Reference Door, you'll have no trouble seeing below you. The door allows you to maneuver with precision when conducting any sort of vertical reference work. If your window needs to be replaced due to the wear and tear o... Read more
Left seat long line operation has never been more straightforward. DART Aerospace has a complete line of accessories for left hand pilot operations, accessories that will improve your performance and enhance your comfort. With DART Aerospace's Vertical Reference Door, you'll have no trouble seeing below you. The door allows you to maneuver with precision when conducting any sort of vertical reference work. If your window needs to be replaced due to the wear and tear of daily operation, try DART Aerospace's Replacement Vertical Reference Window.  *Critical engine instruments are removed from the co-pilot instrument panel and fitted to the door within the co-pilot's field of vision. Consists of all required parts and hardware to convert an OEM door for vertical reference operations, includes half bubble window, latches, arm rest & hardware. Wiring harness & duplicate instruments not included. 1 kit modifies 1 door. Read less

Description

Left seat long line operation has never been more straightforward. DART Aerospace has a complete line of accessories for left hand pilot operations, accessories that will improve your performance and enhance your comfort. With DART Aerospace's Vertical Reference Door, you'll have no trouble seeing below you. The door allows you to maneuver with precision when conducting any sort of vertical reference work. If your window needs to be replaced due to the wear and tear of daily operation, try DART Aerospace's Replacement Vertical Reference Window.  *Critical engine instruments are removed from the co-pilot instrument panel and fitted to the door within the co-pilot's field of vision. Consists of all required parts and hardware to convert an OEM door for vertical reference operations, includes half bubble window, latches, arm rest & hardware. Wiring harness & duplicate instruments not included. 1 kit modifies 1 door.

Key Features

N/A

Key Benefits

  • Also available: Vertical Reference Crew Comfort Shoulder Harness
  • Door modification kit allows operators to modify their own doors

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01285 204B Vertical Reference Door Installation
STC EASA - Europe IM180-SI-0008 214B/214B1 Vertical Reference Door Installation
STC EASA - Europe RC 1137 212/412 Vertical Reference Door Installation
STC TCCA - Canada SH92-30 204B Vertical Reference Door Installation
STC TCCA - Canada SH92-54 205A/205A1/205B Vertical Reference Door Installation
STC TCCA - Canada SH92-55 212/412/412EP Vertical Reference Door Installation
STC TCCA - Canada SH92-56 214B/214B1 Vertical Reference Door Installation
STC FAA - USA SR00911NY 204B Vertical Reference Door Installation
STC FAA - USA SR00937NY 205A/205A1/205B/210 Vertical Reference Door Installation
STC FAA - USA SR00938NY 212/412 Vertical Reference Door Installation
STC FAA - USA SR00939NY 214B/214B1 Vertical Reference Door Installation

OEM Cross References

N/A

External Warning

Sales to ask customer what AC its being installed on - need to sell the applicable wiring harness and instrument panel Separately. DIY kit. Consists of all required parts and hardware to convert an OEM door for vertical reference operations, includes half bubble window, latches, arm rest & hardware. Door, Wiring harness & duplicate instruments not included. Not recommended for jettisonable doors.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Requires approved dual cargo release prior installation

Installation Time

24 hrs + 5 hrs initial install

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.00 lbs / 0.91 kg net weight increase

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
