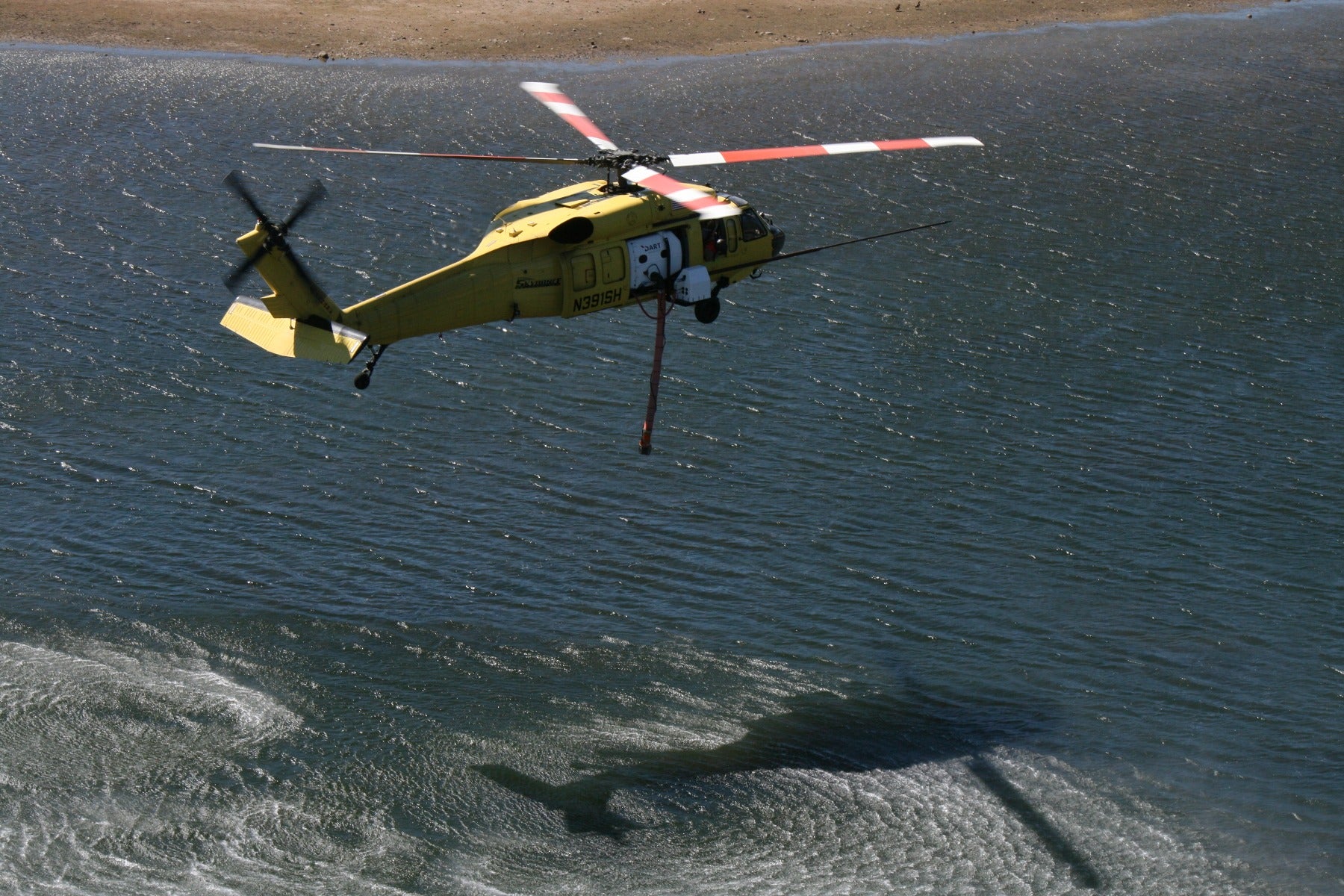

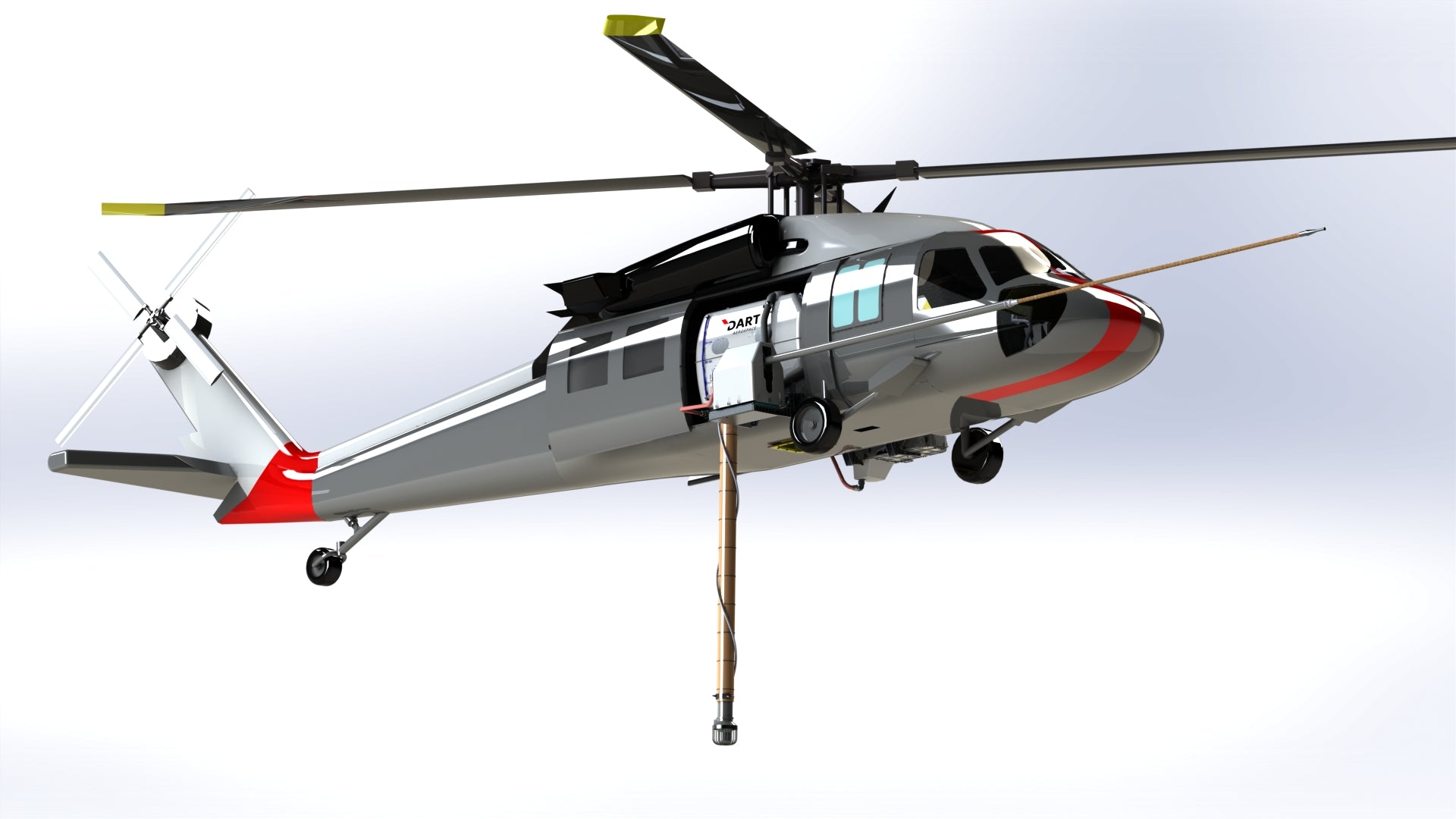

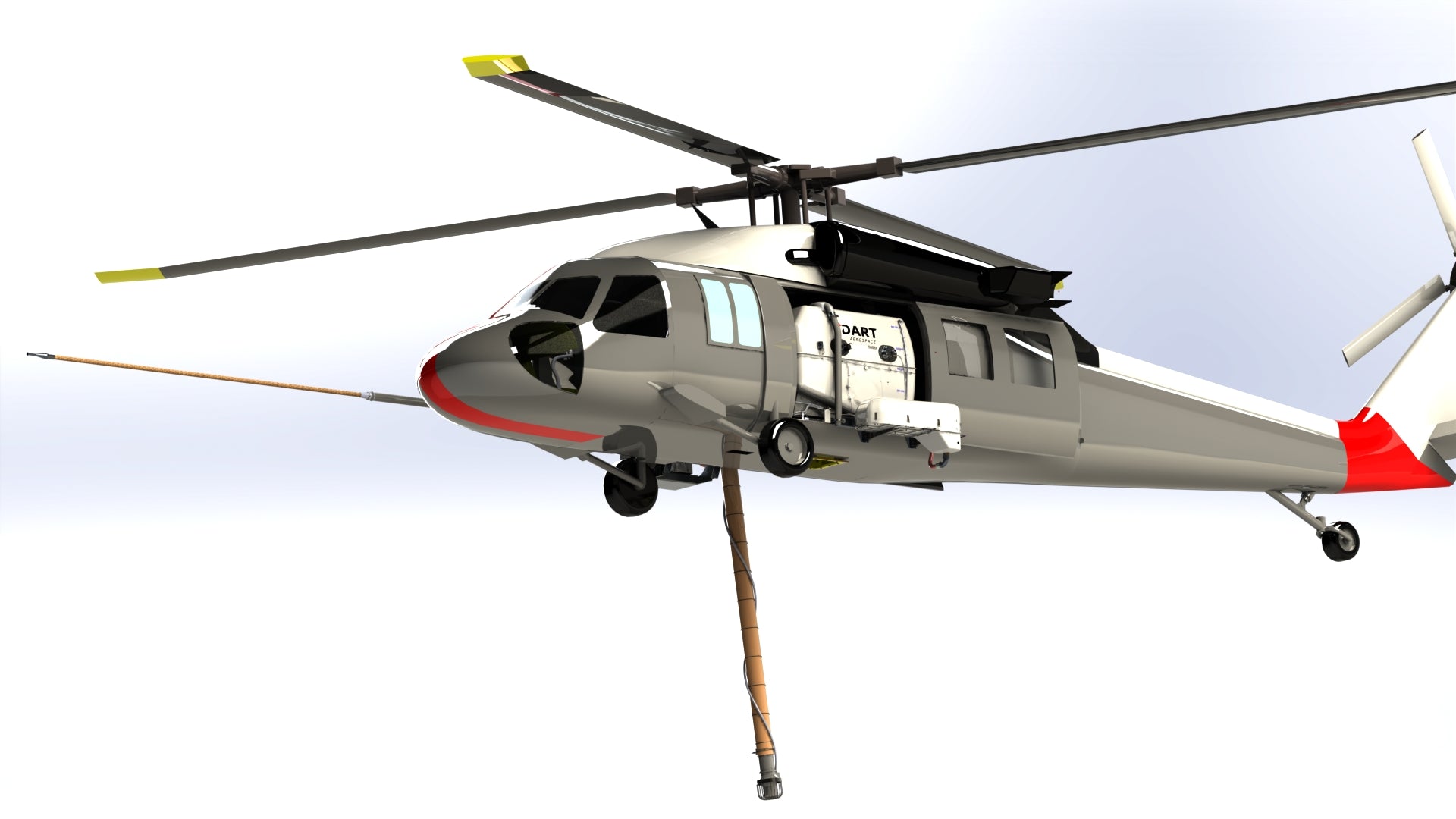

UH-60/S-70 SkyCannon™ - High Rise Firefighting System

Mission Equipment
Part Number: 370-000000-003-BCE
Aircraft Models: Sikorsky - S-70

Price:

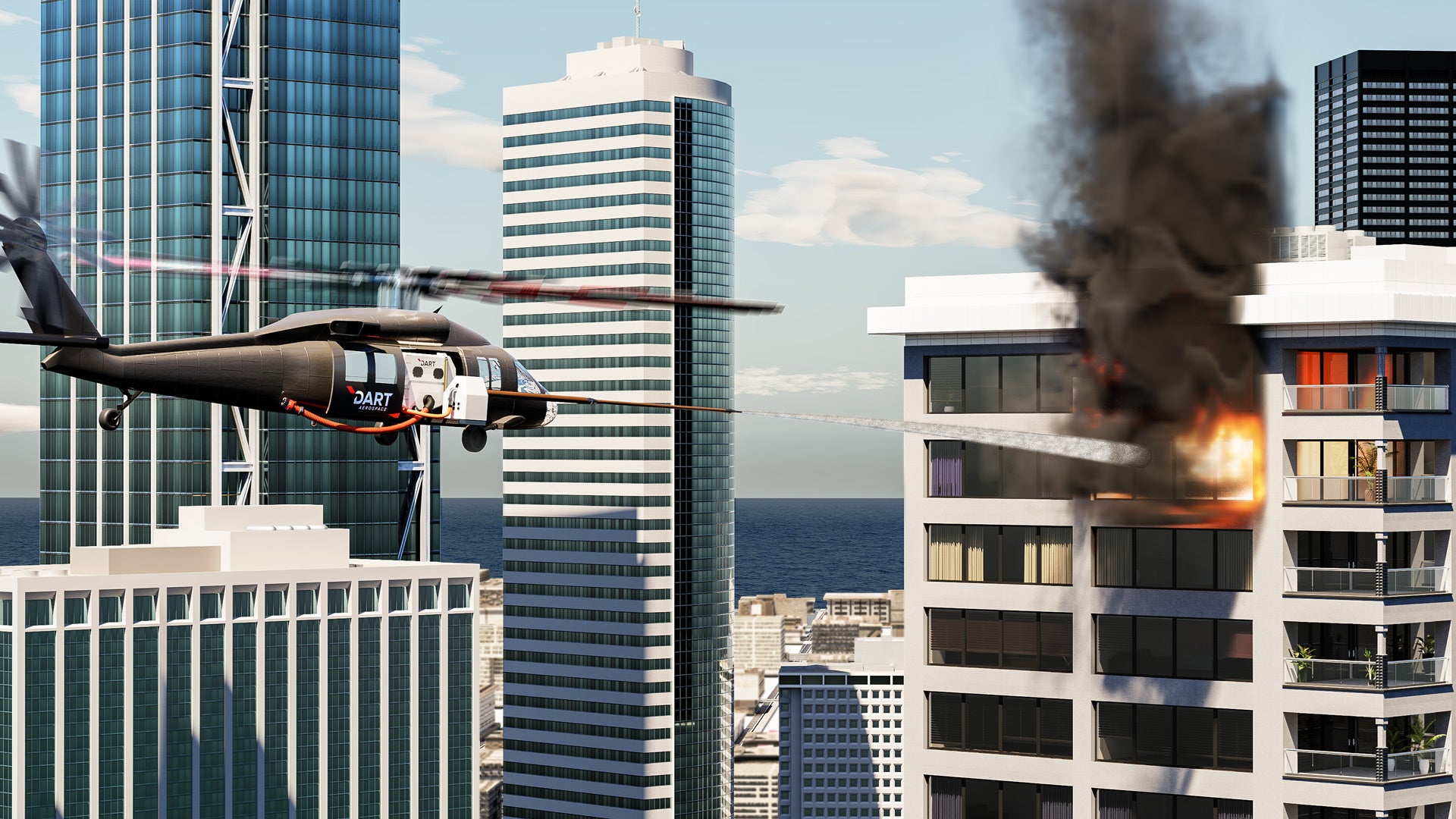

DART's SkyCannon™ can control and contain high-rise fires, slowing the spread of flames through out the building while allowing ground based fighters to evacuate endangered occupants and combat the fire internally.
*Part number is for 370i tank w/ skycannon provisions + the 570 skycannon

Description

DART's SkyCannon™ can control and contain high-rise fires, slowing the spread of flames through out the building while allowing ground based fighters to evacuate endangered occupants and combat the fire internally.
*Part number is for 370i tank w/ skycannon provisions + the 570 skycannon

Key Features

  • Durable composite internal tank
  • Optional, hover refill snorkel
  • Low-pressure, high-volume spray
  • Double safety lock mechanism prevents boom interference with main and tail rotors
  • Boom extends at least one-meter past rotor diameter, reducing rotor wash factor
  • Kit includes infrared camera and distance measuring equipment

Key Benefits

  • Designed specifically for combating high-rise building fires
  • Provides ability to reach beyond ground-based firefighting efforts
  • Boom operated by crew member on separate, user-friendly control console
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02657SE EH-60A/HH-60L/S-70A/UH-60A

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

VNE 135 KIAS / 30 KIAS with Boom deployed

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 1728 lbs / 784 kg (includes 370i tank)

Load Capacity And Volume

  • Volume: 850 gal / 3218 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
