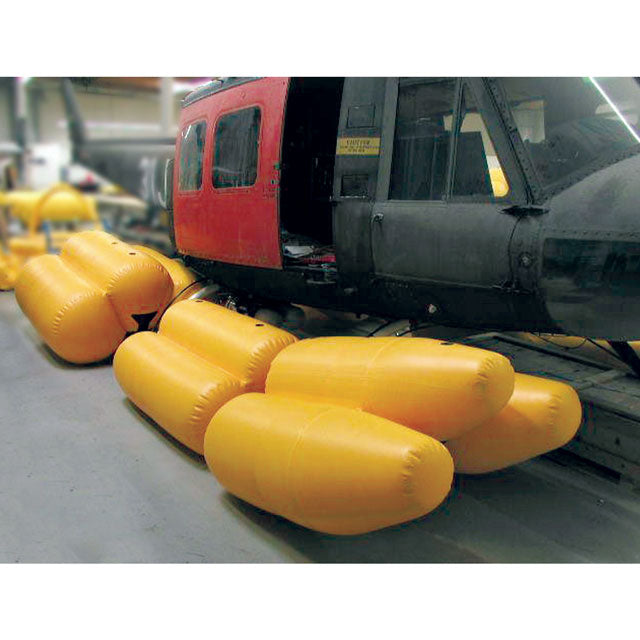

UH-1H Tri-Bag Float System, Internal Hoist Compatible

The UH-1H Emergency Float Kit consists of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, float inflation reservoirs located on a belly mounted rack, a collective-mounted float switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. *Includes protection for the RH Mid Float to prevent chafing when installed in conjunction with internal hoists.
