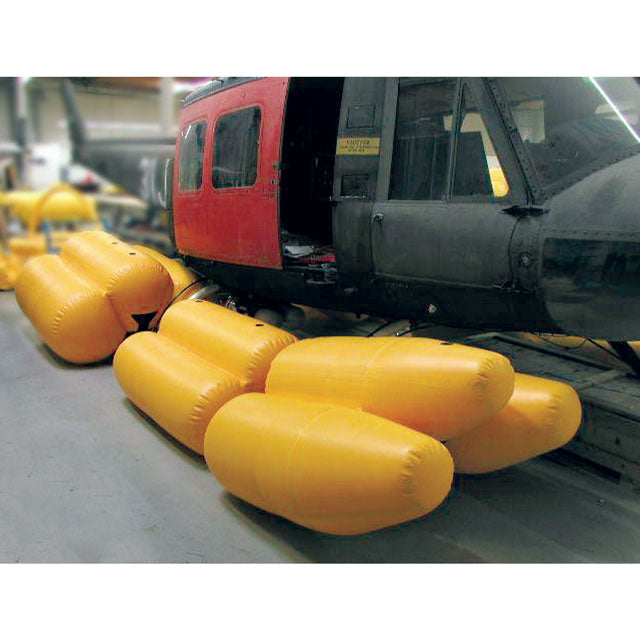

UH-1H Tri-Bag Float System, External Hoist Compatible

Mission Equipment
Part Number: 644.3203
Aircraft Models: Bell - UH-1

Price:
The UH-1H Emergency Float Kit consists of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, float inflation reservoirs located on a belly mounted rack, a collective-mounted float switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to t... Read more
The UH-1H Emergency Float Kit consists of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, float inflation reservoirs located on a belly mounted rack, a collective-mounted float switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. *Includes protection for the RH Mid Float to prevent chafing when installed in conjunction with external hoists. Read less

Description

The UH-1H Emergency Float Kit consists of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, float inflation reservoirs located on a belly mounted rack, a collective-mounted float switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. *Includes protection for the RH Mid Float to prevent chafing when installed in conjunction with external hoists.

Key Features

  • Installs on high gear
  • Will be compliant with EASA OPS requirements

Key Benefits

  • Can install on DART, OEM & AAI float compatible skidtubes

Approvals

N/A

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

40 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 224.50 lbs / 101.83 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
