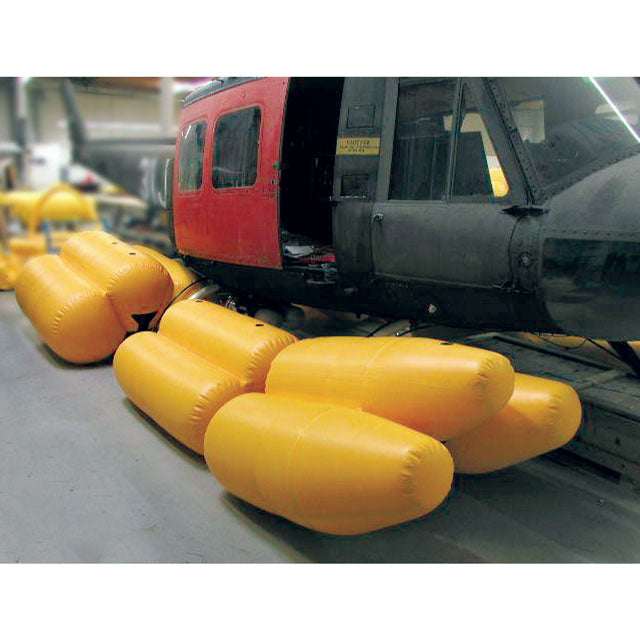

UH-1H Tri-Bag Float System

Mission Equipment
Part Number: 644.3201
Aircraft Models: Bell - UH-1

Price:
The UH-1H Emergency Float Kit consists of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, float inflation reservoirs located on a belly mounted rack, a collective-mounted float switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to t... Read more
The UH-1H Emergency Float Kit consists of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, float inflation reservoirs located on a belly mounted rack, a collective-mounted float switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. *Kit includes Fwd, Mid & Aft Tri-Bag floats. Price is for complete float system. Read less

Description

The UH-1H Emergency Float Kit consists of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, float inflation reservoirs located on a belly mounted rack, a collective-mounted float switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. *Kit includes Fwd, Mid & Aft Tri-Bag floats. Price is for complete float system.

Key Features

  • Kit includes (at customer option) integrated liferafts
  • No life limit on inflatables (Floats & Liferafts)
  • Exchange program available
  • Kit includes Fwd, Mid & Aft Tri-Bag Floats
  • Installs on high gear

Key Benefits

  • Significant weight reduction
  • Reduced installation time
  • Can install on DART, OEM & AAI float compatible skidtubes

Approvals

N/A

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

40 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 224.00 lbs / 101.60 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
