Twin Pak E-Z Access Kit

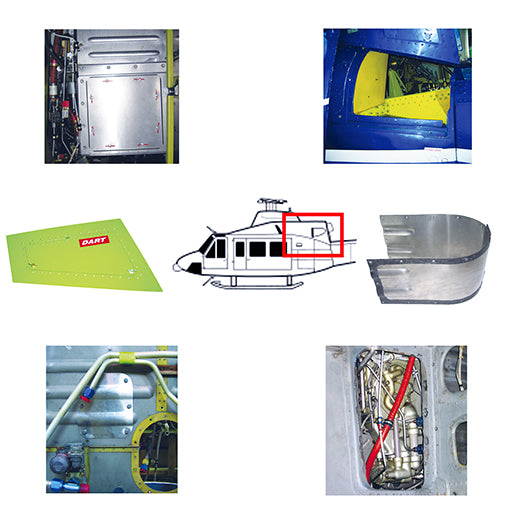

The D412-705-011 includes all sub kits: The D412-705-013 Intake Plenum Access Panel Kit lets you upgrade the intake plenum with a removable panel for easier access. No more cutting yourself on the intake plenum sheet metal! With the D412-705-015 Drive Shaft Tunnel Modification Kit, you can create a removable section in the drive shaft tunnel, eliminating the need to remove the complete tunnel to access the fuel nozzles. The D412-705-017 N1 Gearbox Access Panel Kit creates a larger opening, allowing you to gain access to other components and providing a larger window to conduct inspections. The D412-705-019 C-Box Oil Cooler Line Support Access Kit provides easier hands-free access to the oil cooler lines. The D412-705-021 Oil Pressure Transmitter Access Panel provides access to the right hand oil pressure transmitter, which is normally inaccessible. The D412-705-023 Oil Cooler Support Removable Lower Panel replaces the rivets along the top and forward edges of the panels with bolts so that they can be easily removed for maintenance. *1 kit completes 1 aircraft, includes all sub-kits, sub-kits can be installed in any combination. Sub-kits include: D412-705-013, D412-705-015, D412-705-017, D412-705-019, D412-705-021, D412-705-023. Price is per aircraft.
