Step Protective Trim Kit

Part Number: D412-775-013

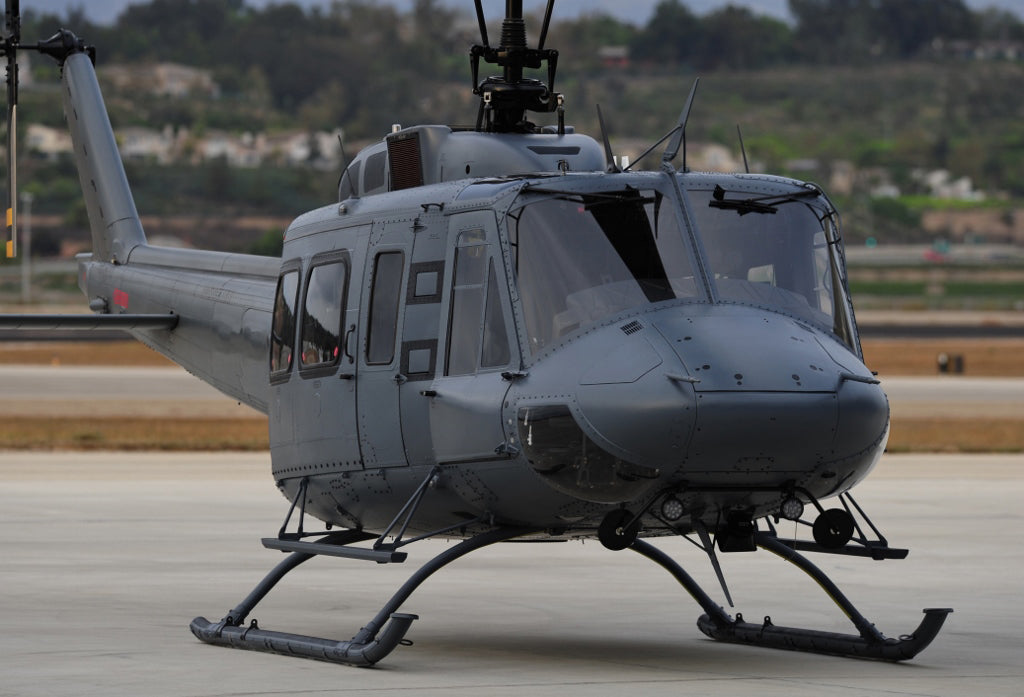

Aircraft Models: Bell - 205
Price:
Login to see prices and leadtimes

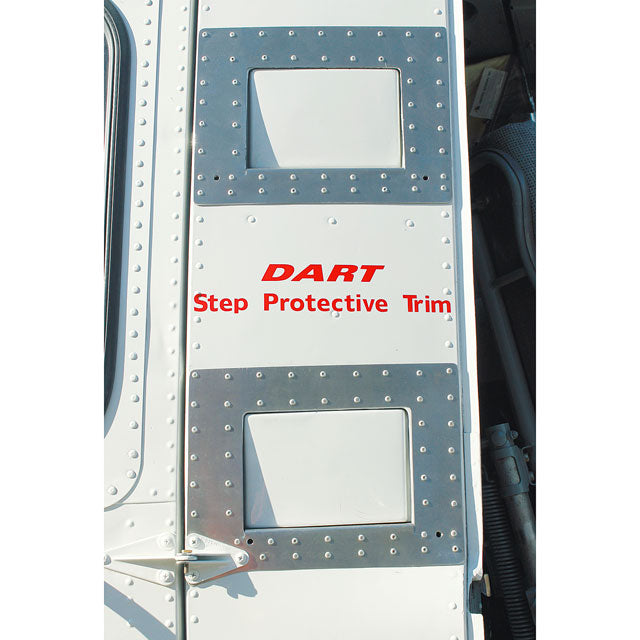

DART Aerospace Protective Trim Kits feature stainless steel doublers that protect aircraft skin and structures in often damaged areas. Step Protective Trim Kit consists of 2 stainless steel doublers that install around the RH post steps between the crew and hinge panel doors to protect the edges of the aircraft skin from damage. *Completes 1 aircraft.

Description

DART Aerospace Protective Trim Kits feature stainless steel doublers that protect aircraft skin and structures in often damaged areas. Step Protective Trim Kit consists of 2 stainless steel doublers that install around the RH post steps between the crew and hinge panel doors to protect the edges of the aircraft skin from damage. *Completes 1 aircraft.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01529 204B/205A1/212/214B/214B1/412/412EP Protective Trim Kit
STC TCCA - Canada SH08-53 204B/205A1/205B/212/214B/214B1/412/412CF/412EP Protective Trim Kit
STC FAA - USA SR02692NY 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP Protective Trim Kit

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 1.25 lbs / 0.57 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
