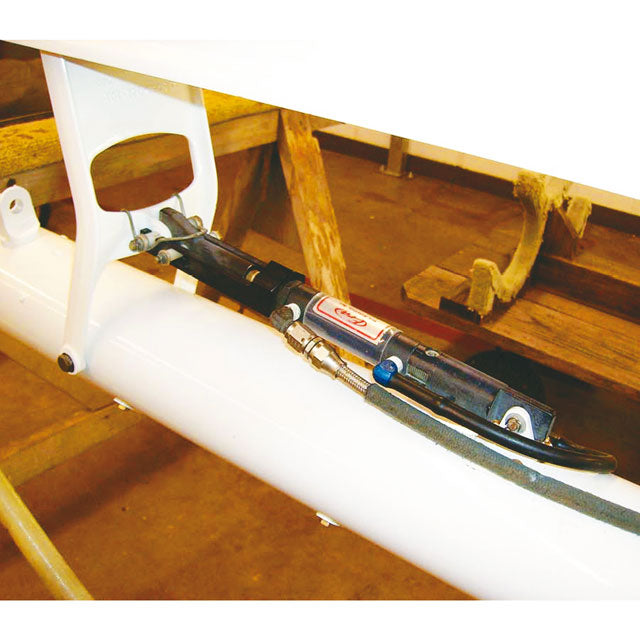

Step Actuator, LH

Part Number: 41232-000-001-001
Aircraft Models: Bell - 412
Price:
The Step Actuator Release System replaces the OEM electrical linear step actuators with pneumatic actuators. This modification is designed to keep the passenger steps in the extended position at all times, except during float inflation. Upon float inflation, nitrogen released from the storage bottle will cause the actuators to retract and allow the passenger steps to free fall or be forced down by the inflating bag. *Modifies existing OEM step. Price is per side.

Description

The Step Actuator Release System replaces the OEM electrical linear step actuators with pneumatic actuators. This modification is designed to keep the passenger steps in the extended position at all times, except during float inflation. Upon float inflation, nitrogen released from the storage bottle will cause the actuators to retract and allow the passenger steps to free fall or be forced down by the inflating bag. *Modifies existing OEM step. Price is per side.

Key Features

  • Step remains in extended position at all times except when floats inflate
  • Modifies the existing OEM step

Key Benefits

  • Retracts automatically when floats inflate
  • Reduces maintenance costs
  • Reduces downtime
  • Quick & easy installation

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada LoA P-11-0206 412/412EP Step Actuator Release System
STC FAA - USA SR09400RC 412/412EP Step Actuator Release System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

5 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.00 lbs / 0.91 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
