Description

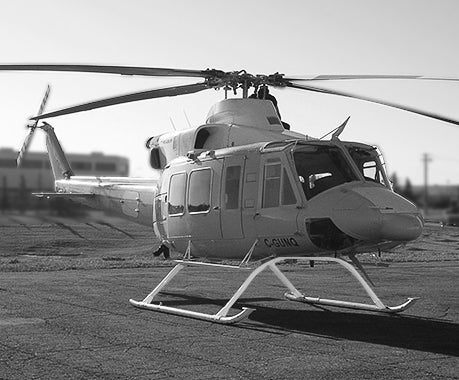

Helicopter pilots count on DART Aerospace Landing Gear for a safe and secure landing anywhere - anytime. This exclusive, new 39-inch Aft crosstube is 12 inches higher than the standard height crosstube and requires less maintenance. It provides extra ground clearance for the installation of water bombing tanks and other belly-mounted equipment. Also available as part of D412-594-031/-131 landing gear installations.
*Replacement crosstubes for DART 39" / 99.06 cm extended height landing gear D412-594-031/-131 (actual measurement: 39" / 99.06 cm from ground to bottom of undeflected crosstube). Must be installed with D205-634-041/-141 skidtubes and K10004 heavy duty saddle kit. Not compatible with OEM Skidtubes.
Key Features
- Compatible with belly-mounted equipment
- Out-of-the-box painted white
- Ready to install
- Strong stainless steel construction
- 12" / 30 cm higher than standard high landing gear
- Also available: - Cable guards - Tuning Kit - Gross weight towing options - Cap assembly bumper kits
Key Benefits
- Extra height (39 inches) for increased ground clearance
- New material technology: corrosion-resistant stainless steel
- Increased resistance to fatigue
- No liquid penetrant inspection required
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | 10016828, Rev 1 | 204B/205A/205A1/212/214B/214B1/412/412EP | Extended Height Landing Gear |
| STC | TCCA - Canada | SH03-6 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | Extended Height Landing Gear |
| STC | FAA - USA | SR01742NY | 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P | Extended Height Landing Gear |
