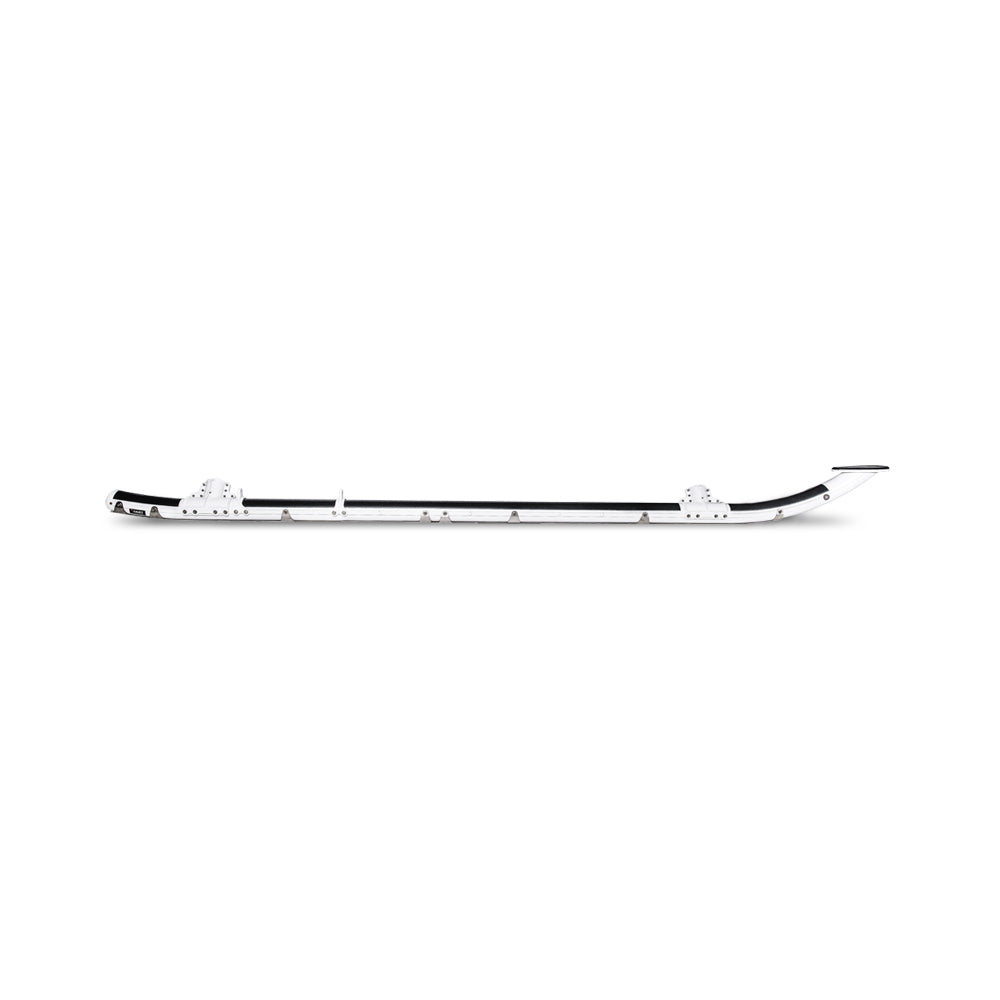

Skidtube with Thru-Bolt Standard Wearplates Fits LH or RH

Part Number: D205-634-113
Aircraft Models: Bell - 205

Price:
We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace's revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength ... Read more
We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace's revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength of the I-beam made from 6061-T6 aluminum. In DART Aerospace skidtubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skidtubes. DART thru-bolt wearplates feature 2 full-length wearplates without integrated wearbars, installed with thru-bolts. The thru-bolt makes installation or replacement quick and easy, eliminates clamps over the skidtube and prevents the wearplate from rotating on the skidtube. The wearplates come in 2 pieces, which are individually replaceable. In addition they are LH/RH interchangeable, which reduces spares inventory. *Includes full-length wearplates installed with thru-bolts without integrated wearbars and saddles. Compatible on DART & OEM Crosstubes. For 214B / B-1 models, the DART D205-634-113 skidtubes must be installed with the DART D212-664-107/-207 crosstubes standard or D212-664-101/-201 crosstube high. Compatible with L8500R-1/-2 Airglass Ski on Bell 212/412. Read less

Description

We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace's revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength of the I-beam made from 6061-T6 aluminum. In DART Aerospace skidtubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skidtubes. DART thru-bolt wearplates feature 2 full-length wearplates without integrated wearbars, installed with thru-bolts. The thru-bolt makes installation or replacement quick and easy, eliminates clamps over the skidtube and prevents the wearplate from rotating on the skidtube. The wearplates come in 2 pieces, which are individually replaceable. In addition they are LH/RH interchangeable, which reduces spares inventory. *Includes full-length wearplates installed with thru-bolts without integrated wearbars and saddles. Compatible on DART & OEM Crosstubes. For 214B / B-1 models, the DART D205-634-113 skidtubes must be installed with the DART D212-664-107/-207 crosstubes standard or D212-664-101/-201 crosstube high. Compatible with L8500R-1/-2 Airglass Ski on Bell 212/412.

Key Features

  • Now TCCA/FAA/EASA approved to 12,200 lb gross weight
  • Patented I-beam construction
  • CNC machined split saddles
  • Manufactured from 6061-T6 aluminum
  • Thru-bolt wearplate installation
  • Compatible with DART and OEM Crosstubes (Except on Bell 214B/B-1: compatible on DART Crosstubes only)

Key Benefits

  • 10 times more resistant to crushing due to I-beam construction

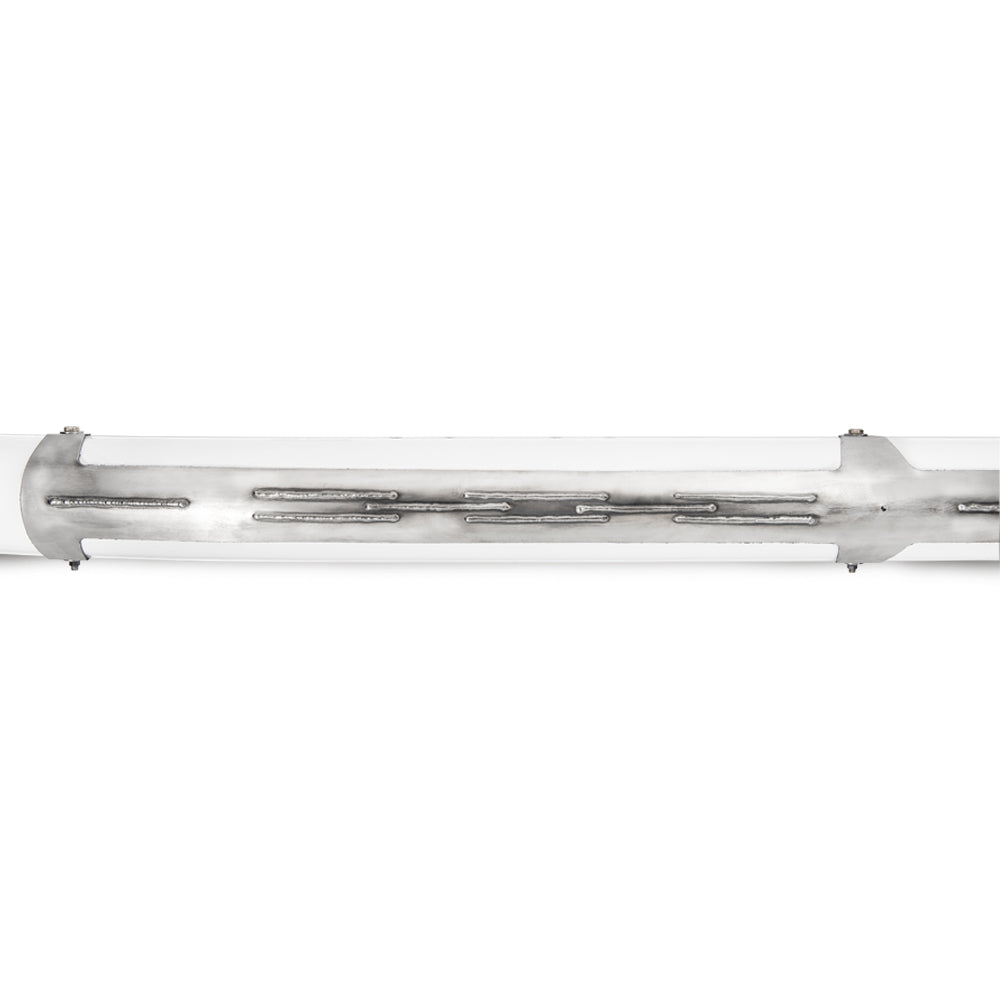

  • Full length stainless steel wearplates installed with thru-bolt design for quick and easy installation or replacement
  • FAA approved for UH-1H
  • Split saddles make installation easier even in the field
  • Reduced inventory of spares
  • Repairable/weldable

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01303 204B/205A/205A1/205B/212/214B/214B1/412/412EP D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits
STC TCCA - Canada SH96-88 204B/205A/205A1/205B/212/214B/214B1/412/412CF/412EP D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits
STC FAA - USA SR00563NY 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits
STC JCAB - Japan STC-55-1-TYO 412/412EP D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits

OEM Cross References

OEM Replacement / 205-050-152-060
OEM Replacement / 205-050-400-011
OEM Replacement / 205-050-400-012
OEM Replacement / 205-050-400-073
OEM Replacement / 412-320-115
OEM Replacement / 412-320-116
OEM Replacement / 412-320-119
OEM Replacement / 412-320-120
OEM Replacement / 412-320-123
OEM Replacement / 412-320-124
OEM Replacement / 205-050-400-074
OEM Replacement / 205-050-400-105
OEM Replacement / 205-050-400-106
OEM Replacement / 205-050-152-059
OEM Replacement / 412-050-023-101
OEM Replacement / 412-050-023-102
OEM Replacement / 412-050-023-105
OEM Replacement / 412-050-023-106
OEM Replacement / 412-050-030-101
OEM Replacement / 412-050-030-102
OEM Replacement / 412-050-034-101
OEM Replacement / 412-050-034-102
OEM Replacement / 412-050-043-101
OEM Replacement / 412-050-043-102

External Warning

N/A

Prerequisite

N/A

Compatible With

Airglass Ski: L8500R-1/L8500R-2 (Bell 212/412); DART & OEM Crosstubes.

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
