Description

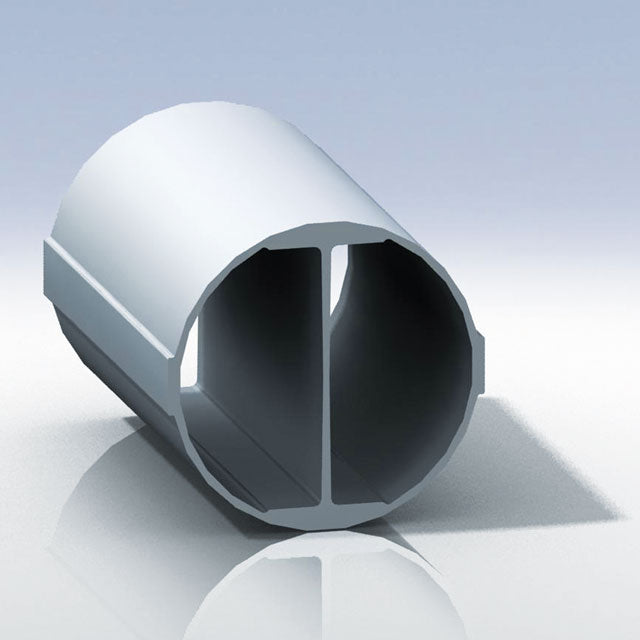

We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace's revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength of the I-beam made from 6061-T6 aluminum. In DART Aerospace skidtubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skidtubes. Comes standard with full-length stainless steel tungsten carbide welded wearplates.
*Comes with 4 full length stainless steel tungsten carbide welded wearplates with corresponding gaskets & 2 additional wearplates at the saddle locations. Pre-drilled for compatibility with Bristol WSPS Kit. Compatible with OEM settling protectors (requires D117-762-101).
Key Features
- Patented I-beam construction
- Includes full-length stainless steel wearplates with tungsten carbide welds
- LH/RH interchangeable
- Manufactured from 6061-T6 aluminum
- Installs with OEM saddles
- Compatible with Bristol skid deflector
Key Benefits
- 10 times more resistant to crushing due to I-beam construction
- Compatible with OEM crosstubes, saddles and ground handling wheels
- Reduced inventory of spares (tubes are not handed)
- Repairable/weldable
- Full length stainless steel wearplates with tungsten carbide welds
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DGCA - Mexico | IA-376/2016 | BK117A1/BK117A3/BK117A4/BK117B1/BK117B2/BK117C1/BK117C2(EC145) | Installation of skid tubes |
| STC | EASA - Europe | 10017063, Rev. 1 | BK117A1/BK117A3/BK117A4/BK117B1/BK117B2/BK117C1/EC145(BK117C2)/EC145T2 | D117-762 Approved OEM Replacement Skidtube |
| STC | TCCA - Canada | LoA RDIMS-4374899 | BK117A1/BK117A3/BK117A4/BK117B1/BK117B2/BK117C1/EC145(BK117C2)/EC145T2 | D117-762 Approved OEM Replacement Skidtube |
| STC | FAA - USA | SR01853SE | BK117A1/BK117A3/BK117A4/BK117B1/BK117B2/BK117C1/EC145(BK117C2)/EC145T2 | D117-762 Approved OEM Replacement Skidtube |
