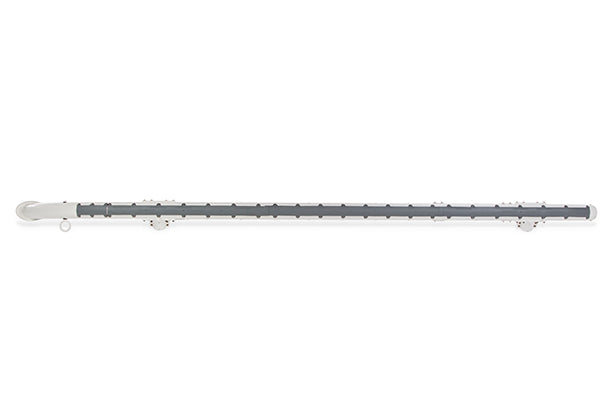

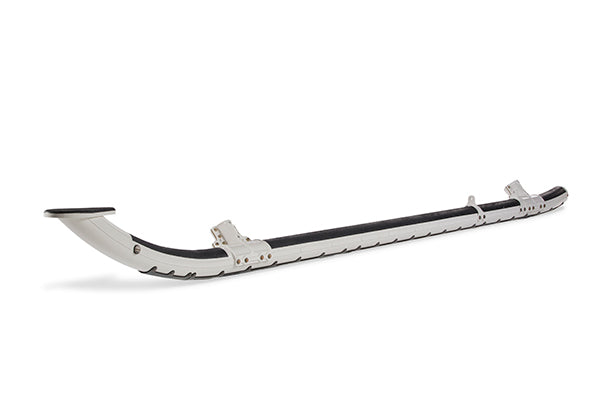

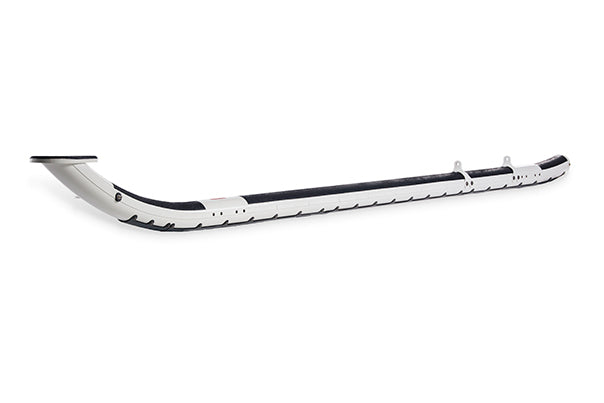

Skidtube with Standard Wearplates Fits LH or RH

Part Number: D205-634-011
Aircraft Models: Bell - 205

Price:
We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace’s revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength ... Read more
We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace’s revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength of the I-beam made from 6061-T6 aluminum. In DART Aerospace skidtubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skidtubes. Comes standard with full-length tungsten carbide welded wearplates. Also now available with heavier duty run-on landing wearplates that feature 2 full-length stainless steel wear bars with more areas of generously overlaid highly wear resistant tungsten carbide compared to any other available wearplates. *Includes full-length stainless steel wearplates and saddles. Compatible on DART and OEM Crosstubes. For 214B / B-1 models, the DART D205-634-XXX Skidtubes must be installed with the DART D212-664-XXX Crosstubes. Compatible with L8500R-1/-2 Airglass Ski on Bell 212/412. Read less

Description

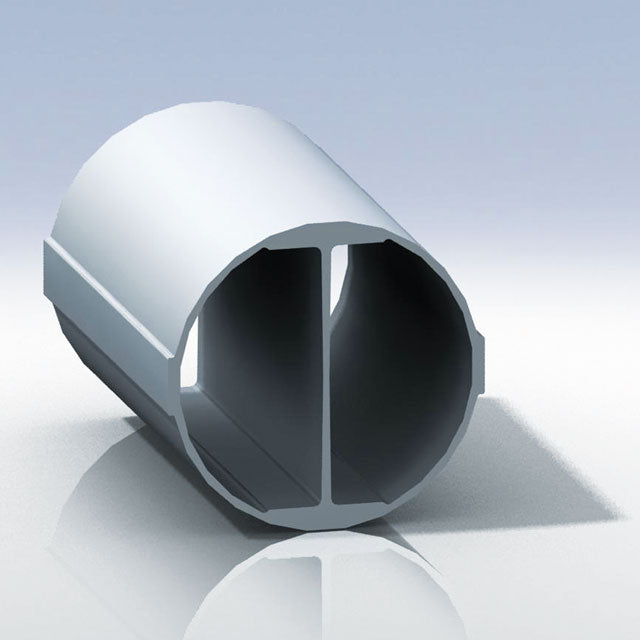

We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace’s revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength of the I-beam made from 6061-T6 aluminum. In DART Aerospace skidtubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skidtubes. Comes standard with full-length tungsten carbide welded wearplates. Also now available with heavier duty run-on landing wearplates that feature 2 full-length stainless steel wear bars with more areas of generously overlaid highly wear resistant tungsten carbide compared to any other available wearplates. *Includes full-length stainless steel wearplates and saddles. Compatible on DART and OEM Crosstubes. For 214B / B-1 models, the DART D205-634-XXX Skidtubes must be installed with the DART D212-664-XXX Crosstubes. Compatible with L8500R-1/-2 Airglass Ski on Bell 212/412.

Key Features

  • Now TCCA/FAA/EASA approved to 12,200 lb gross weight
  • Includes standard full-length wearplates
  • Patented I-beam construction
  • CNC machined split saddles
  • Manufactured from 6061-T6 aluminum
  • Compatible with DART and OEM Crosstubes (Except on Bell 214B/B-1: compatible on DART Crosstubes only)

Key Benefits

  • 10 times more resistant to crushing due to I-beam construction
  • Split saddles make installation easier even in the field
  • FAA approved for UH-1H
  • Reduced inventory of spares (tubes are not handed)
  • Repairable/weldable
  • Wearplates are LH/RH interchangeable

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01303 204B/205A/205A1/205B/212/214B/214B1/412/412EP D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits
STC TCCA - Canada SH96-88 204B/205A/205A1/205B/212/214B/214B1/412/412CF/412EP D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits
STC FAA - USA SR00563NY 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits
STC JCAB - Japan STC-55-1-TYO 412/412EP D204-635 & D205-634 Approved OEM Replacement Skidtube & Optional Modification Kits

OEM Cross References

OEM Replacement / 205-050-152-060
OEM Replacement / 205-050-400-011
OEM Replacement / 205-050-400-012
OEM Replacement / 205-050-400-073
OEM Replacement / 412-320-115
OEM Replacement / 412-320-116
OEM Replacement / 412-320-119
OEM Replacement / 412-320-120
OEM Replacement / 412-320-123
OEM Replacement / 412-320-124
OEM Replacement / 205-050-400-105
OEM Replacement / 205-050-400-106
OEM Replacement / 205-050-152-059
OEM Replacement / 205-050-400-074
OEM Replacement / 412-050-023-101
OEM Replacement / 412-050-023-102
OEM Replacement / 412-050-023-105
OEM Replacement / 412-050-023-106
OEM Replacement / 412-050-030-101
OEM Replacement / 412-050-030-102
OEM Replacement / 412-050-034-101
OEM Replacement / 412-050-034-102
OEM Replacement / 412-050-043-101
OEM Replacement / 412-050-043-102

External Warning

On 214B/B-1 Models, The D205-634-XXX Skidtubes can only be installed with DART D212-664-107/-207 Crosstubes (Standard) or DART D212-664-101/-201 Crosstubes (High).

Prerequisite

N/A

Compatible With

Airglass Ski: L8500R-1/L8500R-2

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 41.00 lbs / 18.60 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
