Single Mirror Installation RH

Part Number: D350-561-141
Aircraft Models: Airbus - AS350

Price:

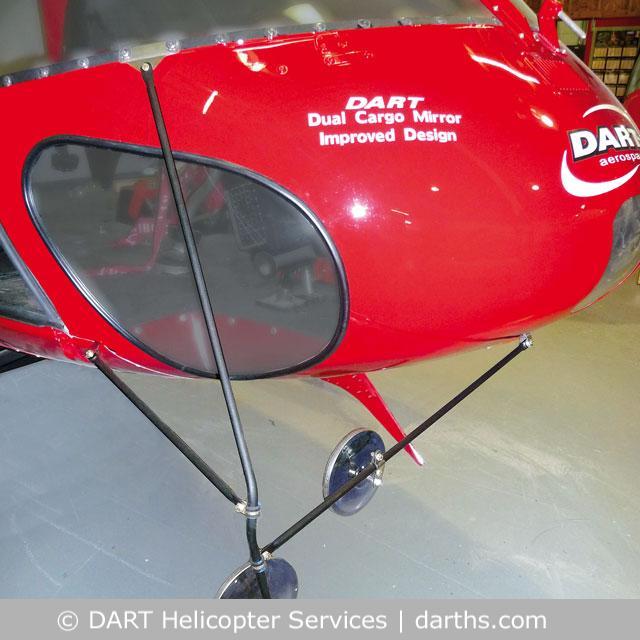

The DART Cargo Mirror gives the pilot a clear view of the load and line for accurate pickup and release. The Cargo Mirrors for the AS350/AS355 consists of a lightweight, stainless steel frame that attaches to existing fastener locations on the aircraft nose to simplify installation. The dual mirror installation provides the pilot with simultaneous viewing of both the cargo hook and the load. *Provides view of hook/load, 6" convex mirror. Sturdier design reduces vibration. Not compatible with LH Mirror.

Description

The DART Cargo Mirror gives the pilot a clear view of the load and line for accurate pickup and release. The Cargo Mirrors for the AS350/AS355 consists of a lightweight, stainless steel frame that attaches to existing fastener locations on the aircraft nose to simplify installation. The dual mirror installation provides the pilot with simultaneous viewing of both the cargo hook and the load. *Provides view of hook/load, 6" convex mirror. Sturdier design reduces vibration. Not compatible with LH Mirror.

Key Features

  • Available for LH or RH

Key Benefits

  • Sturdy lightweight stainless steel construction
  • Simple installation

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10017074 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cargo Mirror Installation
STC FAA - USA SH856NE AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cargo Mirror Installation
STC TCCA - Canada SH91-20 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cargo Mirror Installation

OEM Cross References

OEM Replacement / 350-200264-03

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

LH Mirror

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.50 lbs / 1.13 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
