Single Mirror Installation

Mission Equipment
Part Number: D206-558-041
Aircraft Models: Bell - 206A/B

Price:

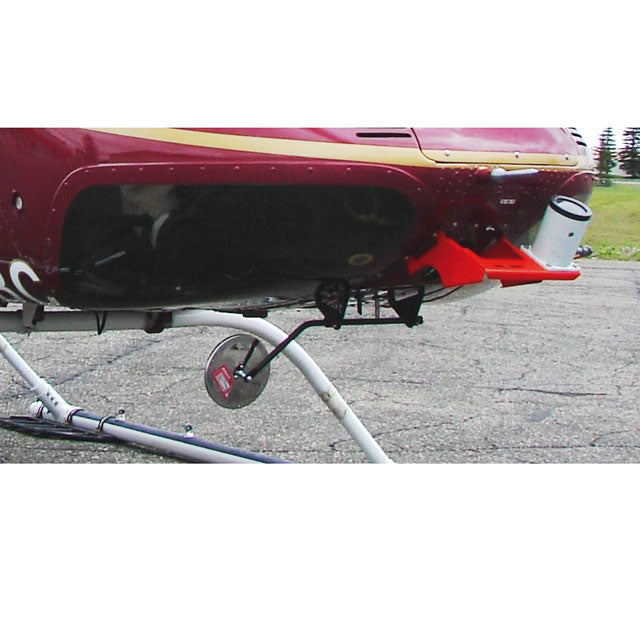

The DART Aerospace Cargo Mirror allows the pilot to view the hook/load for safe hookup and release. The Dual Mirror Kit is used primarily for pilot training. Using the control cable inside the cabin, the cargo mirror can be easily adjusted or stowed for cruise flight. *Provides view of hook/load, 6" convex mirror, control cable for easy adjustment or stowing for cruise flight. Not compatible with Dual Light from Luminator 930-500-50-1.

Description

The DART Aerospace Cargo Mirror allows the pilot to view the hook/load for safe hookup and release. The Dual Mirror Kit is used primarily for pilot training. Using the control cable inside the cabin, the cargo mirror can be easily adjusted or stowed for cruise flight. *Provides view of hook/load, 6" convex mirror, control cable for easy adjustment or stowing for cruise flight. Not compatible with Dual Light from Luminator 930-500-50-1.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 0796/3034 206A/206B/206L/206L1/206L3/206L4/407 Utility Equipment Kit
STC ANAC - Brazil 2010S10-08 206A/206B/206L1/206L3/206L4/407 Utility Equipment Kit
STC FAA - USA SH1031NE 206A/206B/206L/206L1/206L3/206L4/407 Utility Equipment Kit
STC TCCA - Canada SH92-17 206A/206B/206L/206L1/206L3/206L4/407 Utility Equipment Kit

OEM Cross References

OEM Replacement / 206-175-203

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Dual Light from Luminator: 930-500-50-1; Retractable Landing Light

Flight Restrictions

Mirror should be stowed for flight over 78 Kias (91 mph)

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.40 lbs / 1.09 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
