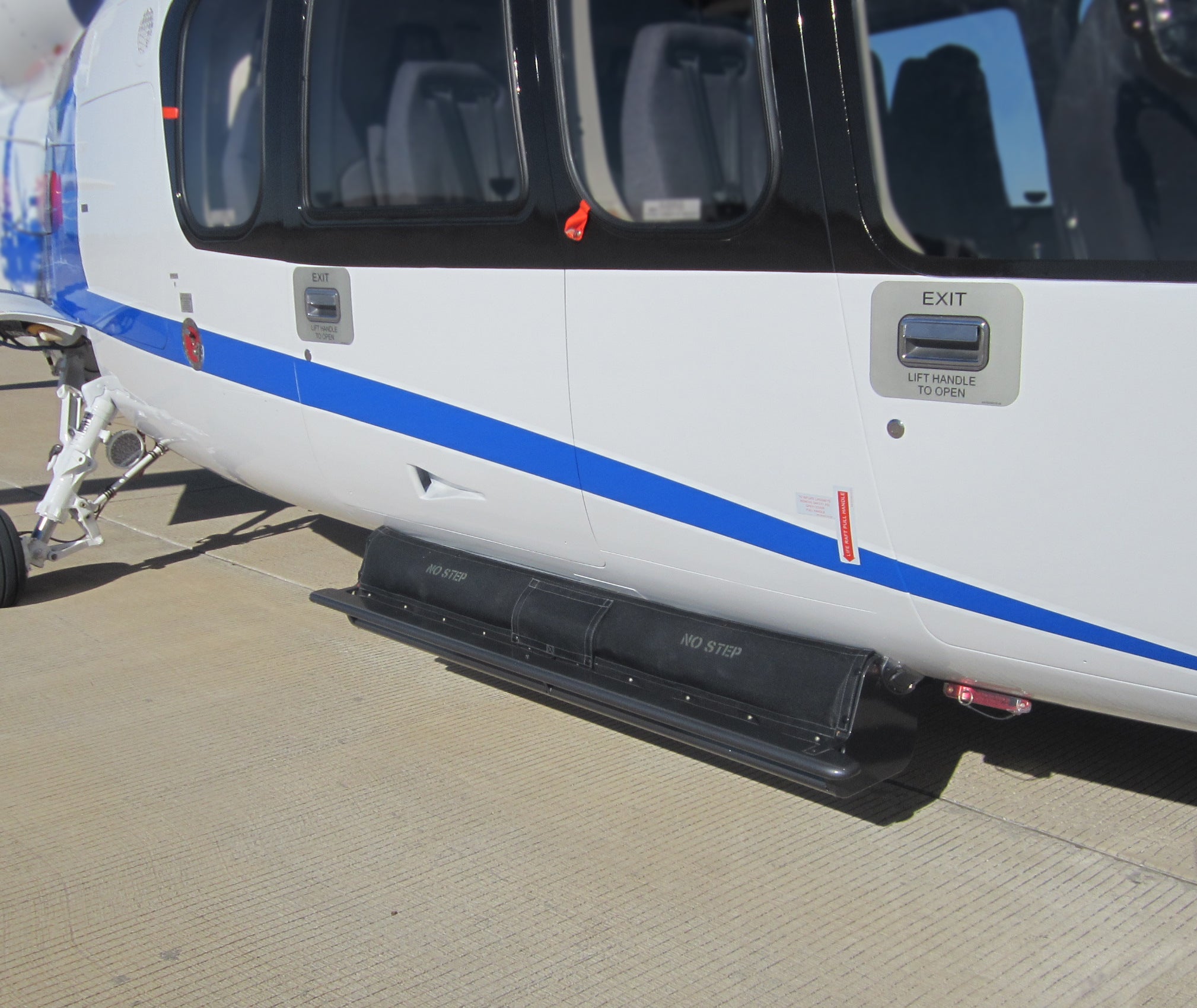

S-76D External Lightweight Emergency Liferafts

Mission Equipment
Part Number: 650.2002
Aircraft Models: Sikorsky - S-76

Price:
The liferaft pod assemblies are comprised of an aluminum pod with a fabric top cover, a 10-man reversible liferaft and an integrated composite passenger step. Designed with twin tube construction, a canopy, a survival kit and a fabric cover and meets all applicable TS0-C70a and EASA OPS requirements. This lighter weight system translates into increased payload for every single offshore mission. The liferafts can be mechanically activated via any one of the 3 inflation... Read more
The liferaft pod assemblies are comprised of an aluminum pod with a fabric top cover, a 10-man reversible liferaft and an integrated composite passenger step. Designed with twin tube construction, a canopy, a survival kit and a fabric cover and meets all applicable TS0-C70a and EASA OPS requirements. This lighter weight system translates into increased payload for every single offshore mission. The liferafts can be mechanically activated via any one of the 3 inflation levers: 1 t-handle located in the cockpit and 2 external belly mounted handles (in case the helicopter capsizes). Available through Sikorsky only. *Available through Sikorsky only. One (1) kit replaces LH/RH OEM steps. Read less

Description

The liferaft pod assemblies are comprised of an aluminum pod with a fabric top cover, a 10-man reversible liferaft and an integrated composite passenger step. Designed with twin tube construction, a canopy, a survival kit and a fabric cover and meets all applicable TS0-C70a and EASA OPS requirements. This lighter weight system translates into increased payload for every single offshore mission. The liferafts can be mechanically activated via any one of the 3 inflation levers: 1 t-handle located in the cockpit and 2 external belly mounted handles (in case the helicopter capsizes). Available through Sikorsky only. *Available through Sikorsky only. One (1) kit replaces LH/RH OEM steps.

Key Features

  • LH/RH step assemblies with integrated liferaft (replaces OEM steps)
  • Includes two 10-Man integrated liferafts
  • Fully reversible liferafts with survival kits
  • Compliant with EASA OPS and TSO-C70a requirements
  • No life limit on inflatables (On-condition liferafts)
  • Includes independent mechanical activation system with interior/exterior liferafts activation handles (no squib pyrotechnic)
  • Inflation system includes one (1) reservoir only
  • Includes quick release hose to disconnect from aircraft
  • Patented lightweight urethane-coated fabric
  • Hoist and cargo hook compatible configurations available
  • Corrosion resistant reservoir, stainless steel hoses, fittings & valves
  • Includes boarding ramps and lightweight canopy
  • Designed with multi air-holding chambers
  • Ability to accommodate customer supplied ELT

Key Benefits

  • Worldwide R&O support
  • Exchange program available
  • Significant weight reduction vs. in-cabin liferafts
  • No fuselage skin modification necessary
  • Reduced ownership cost: no life limit on liferafts
  • Increased safety with Integrated liferafts vs. in-cabin liferafts
  • Saves cabin space vs. in-cabin liferafts
  • Best lead time
  • Industry leading turn-around-time
  • Complete aftermarket retrofit: operator/owner installed
  • Spare parts availability
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
Aircraft Type Certificate Aircraft Type Certificate H1NE S-76D S-76D Lightweight Emergency Liferaft Kit

OEM Cross References

N/A

External Warning

Replaces 650.2001.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
