Replacement Engine Mounts


Part Number: D205-770-011

Aircraft Models: Bell - 205

  • In stock

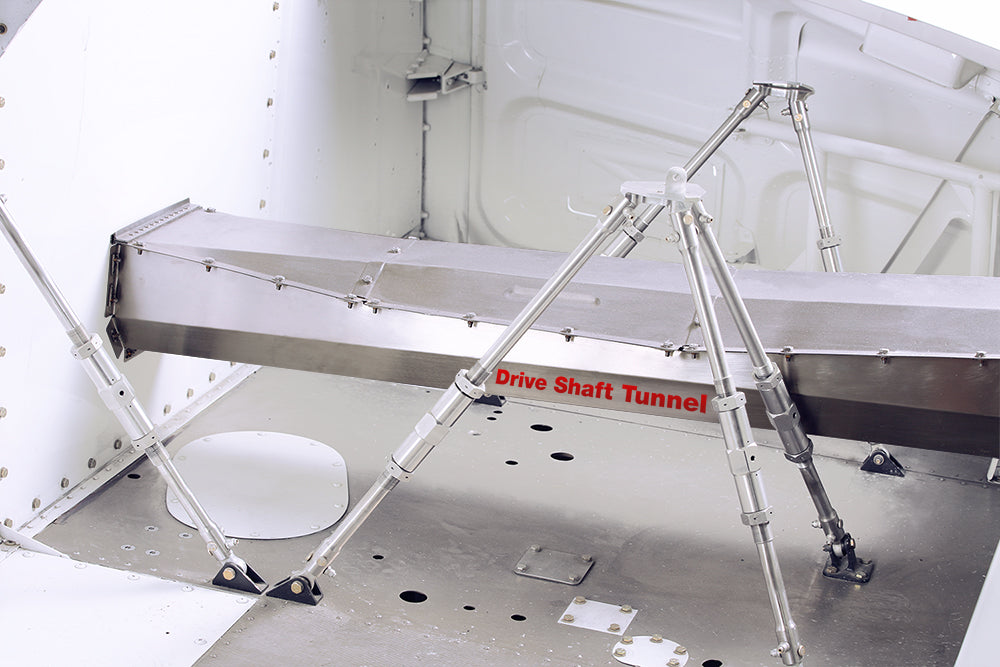

The DART Replacement Engine Mount Kit features adjustable turnbuckles to ease engine alignment. The tripod, bipod and monopod include CNC machined fittings and a stainless steel construction for increased durability. *Replaces the OEM Tripod Assembly (p/n 205-060-105-001, Bipod Assembly (p/n 205-060-106-001) and Tube Assembly (p/n 205-060-107-001) that is used to install the T5317A/B/BCV engines & T5313B engines in 205A1/B helicopters. Tripod ships unassembled, if required for field installation ask to have shipped assembled (surcharges apply).

Key Features

  • Durable machined construction
  • Stainless steel
  • Includes mono, bi & tripod mounts with adjustable turnbuckles
  • User-friendly system for engine alignment

Key Benefits

  • Increased strength and durability
  • Stainless steel construction
  • Reduces time to complete engine alignment

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01528 205A1 Replacement Engine Mounts
STC TCCA - Canada SH08-8 205A1/205B Replacement Engine Mounts
STC FAA - USA SR02070SE UH-1H Replacement Engine Mounts
STC FAA - USA SR02690NY 205A1/205B/210 Replacement Engine Mounts

OEM Cross References

N/A

External Warning

Tripod ships unassembled.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

12 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 14.60 lbs / 6.62 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
