R66 Spray System

Mission Equipment
Part Number: 266-000000-001
Aircraft Models: Robinson - R66

Price:

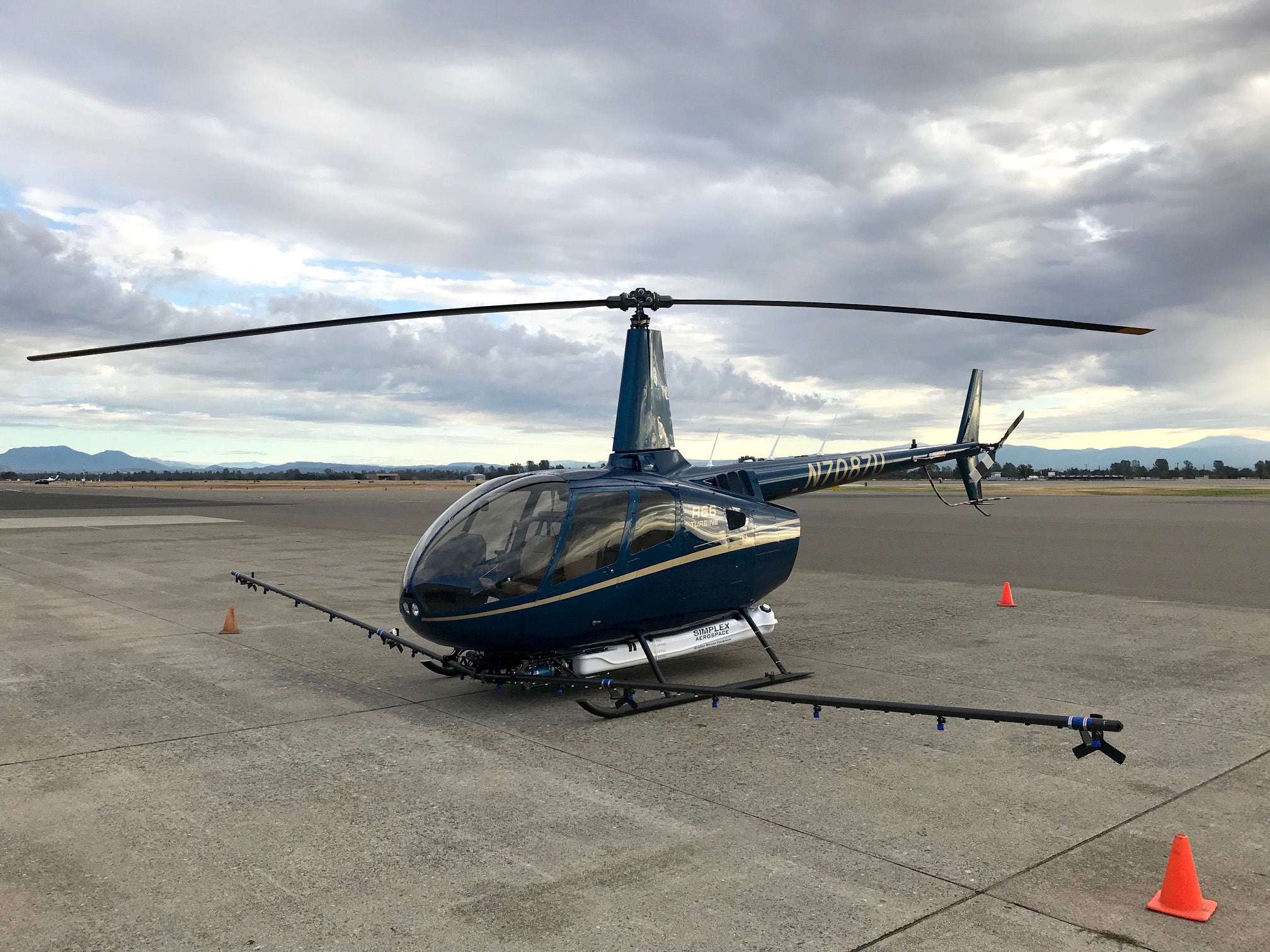

DART's Simplex Model 266 Spray System for the Robinson R66 is the market leading option for Robinsion agricultural spraying. With the highest VNE, lightweight construction and most STC validations and from a reputable international brand. The system consists of a belly mounted carbon fiberglass tank, with a 492 liters (130 gallons) liquid capacity. The forward mounted carbon fiber booms have a width of 10 meters / 33 feet. Other features include an electric driven spray pump and motor, dual sight tubes & fill ports, and atomizer compatibility.

Description

DART's Simplex Model 266 Spray System for the Robinson R66 is the market leading option for Robinsion agricultural spraying. With the highest VNE, lightweight construction and most STC validations and from a reputable international brand. The system consists of a belly mounted carbon fiberglass tank, with a 492 liters (130 gallons) liquid capacity. The forward mounted carbon fiber booms have a width of 10 meters / 33 feet. Other features include an electric driven spray pump and motor, dual sight tubes & fill ports, and atomizer compatibility.

Key Features

  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Forward mounted carbon fiber booms
  • Electrically driven spray pump and motor
  • Dual sight tubes & fill ports

Key Benefits

  • Market leader: Fastest VNE, lightest weight, most approvals
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes
  • New improved Jettison door eliminates leakage
  • Atomizer and GPS/Flow Control compatible

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02629SE R66 Installation of 266 Spray System
STC TCCA - Canada SH19-34 R66 Installation of 266 Spray System
STC DGCA - Mexico IA-578/2019 R66 Installation of 266 Spray System
STC CAAC - China VSTC0934 R66 Installation of 266 Spray System
ANAC - Brazil 2019S05-16 R66 Installation of 266 Spray System
STC DCA - Malaysia VSTC/2021/008 R66 Installation of Model 266 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

VNE limited to 103 KIAS with booms installed, 126 KIAS without

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 222 lbs / 100 kg

Load Capacity And Volume

  • Volume: 130 gal / 492 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
