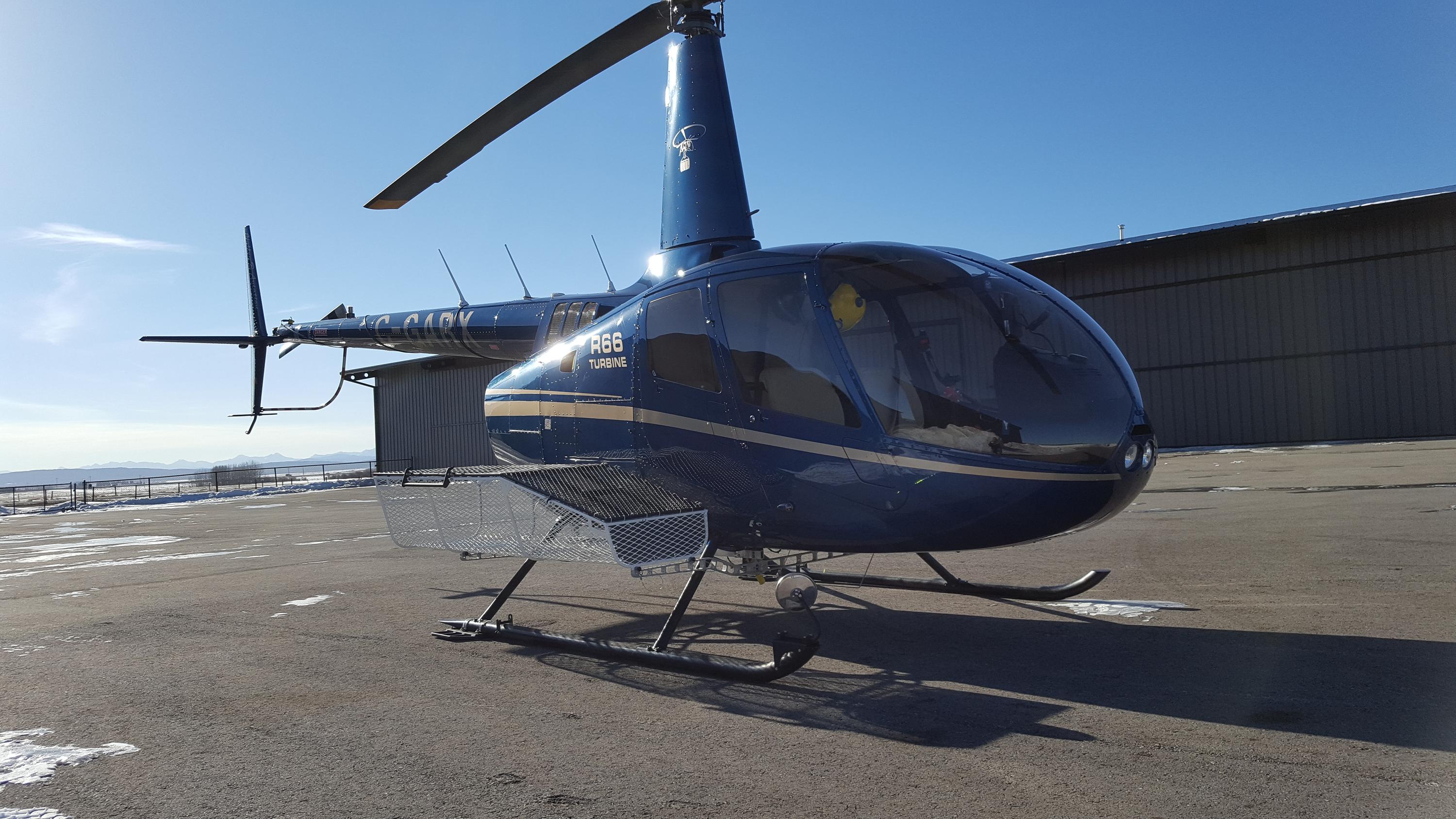

R66 Heli-Utility-Basket™ - RH side

Mission Equipment
Part Number: D066-1016-012
Aircraft Models: Robinson - R66

Price:
The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. ... Read more
The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. *Optional step available. Optional gas spring spring for forward lid available. Not compatible with DART Emergency Flotation System. Price is per side. Read less

Description

The DART Heli-Utility-Basket™ is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system. *Optional step available. Optional gas spring spring for forward lid available. Not compatible with DART Emergency Flotation System. Price is per side.

Key Features

  • Split lid for versatility of cargo
  • Self-locking handle on aft lid
  • Gas spring on aft lid assists with closing/opening and keeps lid closed/opened
  • Durable scratch resistant finish
  • Easy bolt on installation
  • Includes pip pins for quick removal and installation
  • Heavy duty lid doubles as a step or walkway for maintenance
  • Flat bottom design accommodates more types of cargo
  • Carrying handles

Key Benefits

  • Corrosion-resistant stainless steel construction
  • Installs on low and high gear
  • Approved to be flown on left-hand or right-hand side
  • No VNE restriction
  • Allows unobstructed passenger egress
  • Fixed provisions also available separately for easy transfer

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH17-7 R66 Installation of Heli-Utility-Basket
STC FAA - USA SR03917NY R66 Installation of Heli-Utility-Basket
STC EASA - Europe 10062495 R66 Heli-Utility_Basket

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

+/- 12 Hours

Dimensions And Weight

  • Length: 76" / 1.9m
  • Width: 24" / 0.61m
  • Weight Display: 74.4 lbs / 33.7 kg

Load Capacity And Volume

  • Volume: 14.5 ft3 / 0.41 m3
  • Load Capacity: 175 lbs / 79.4 kg

Technical Documentation

N/A

Downloads

N/A
