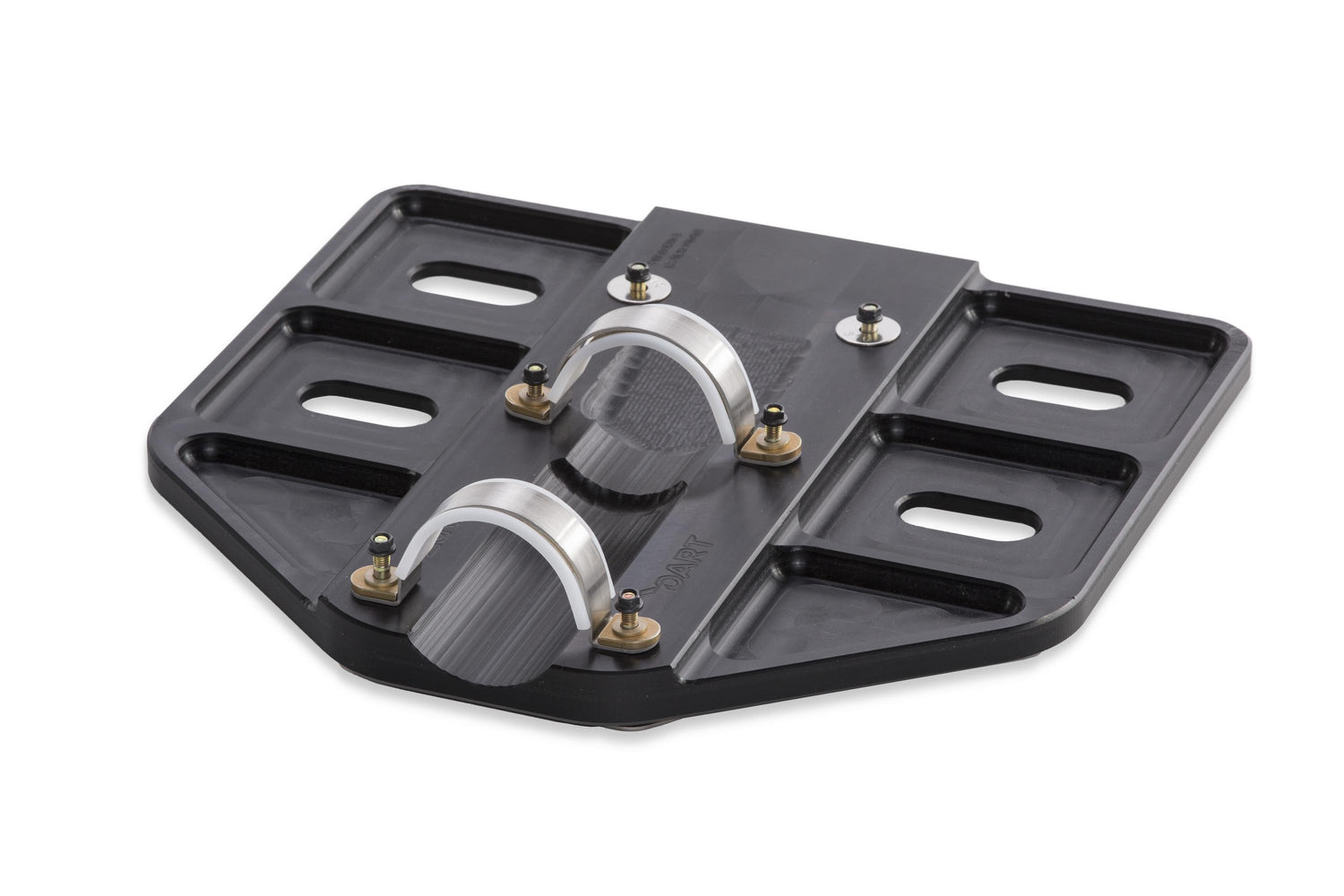

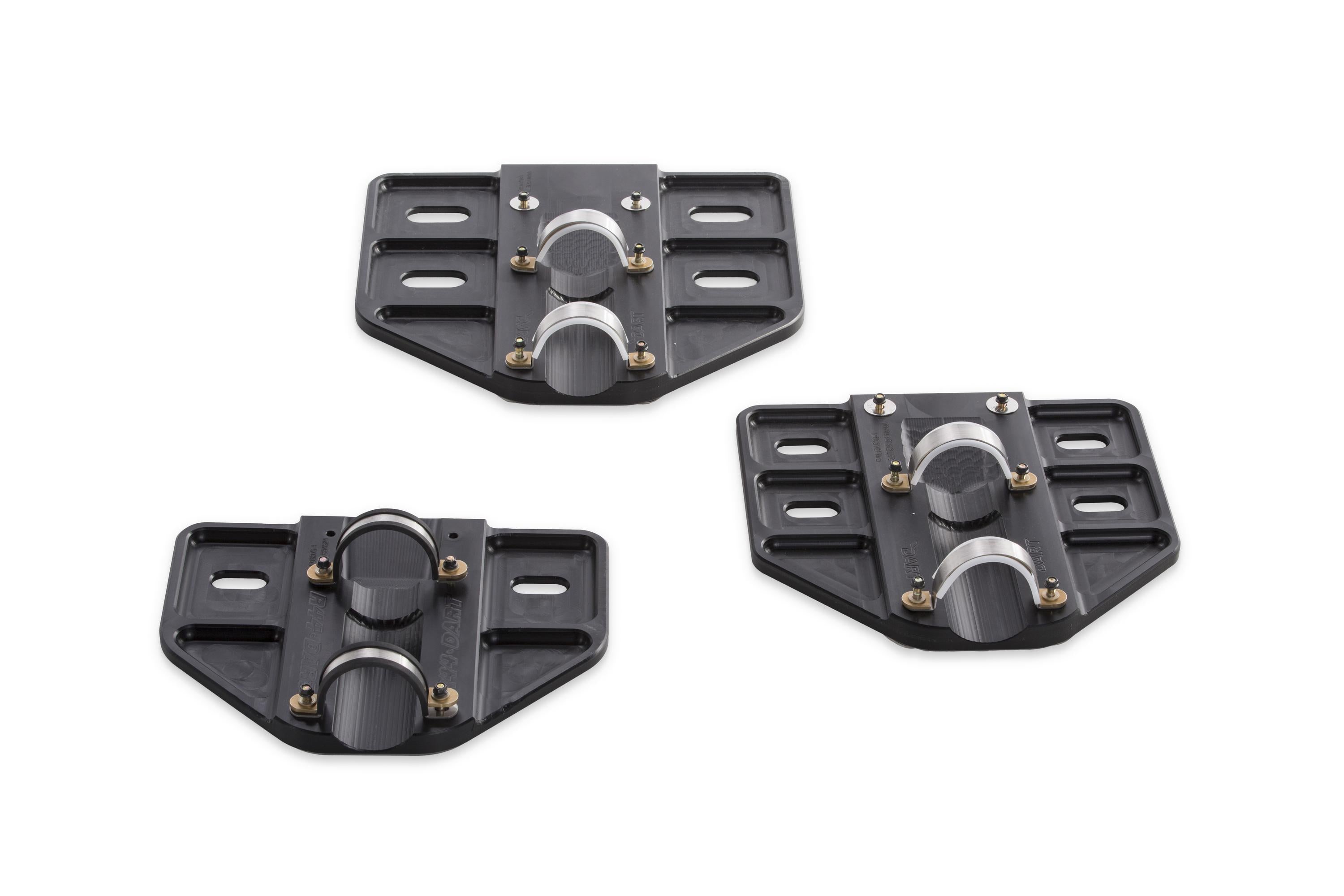

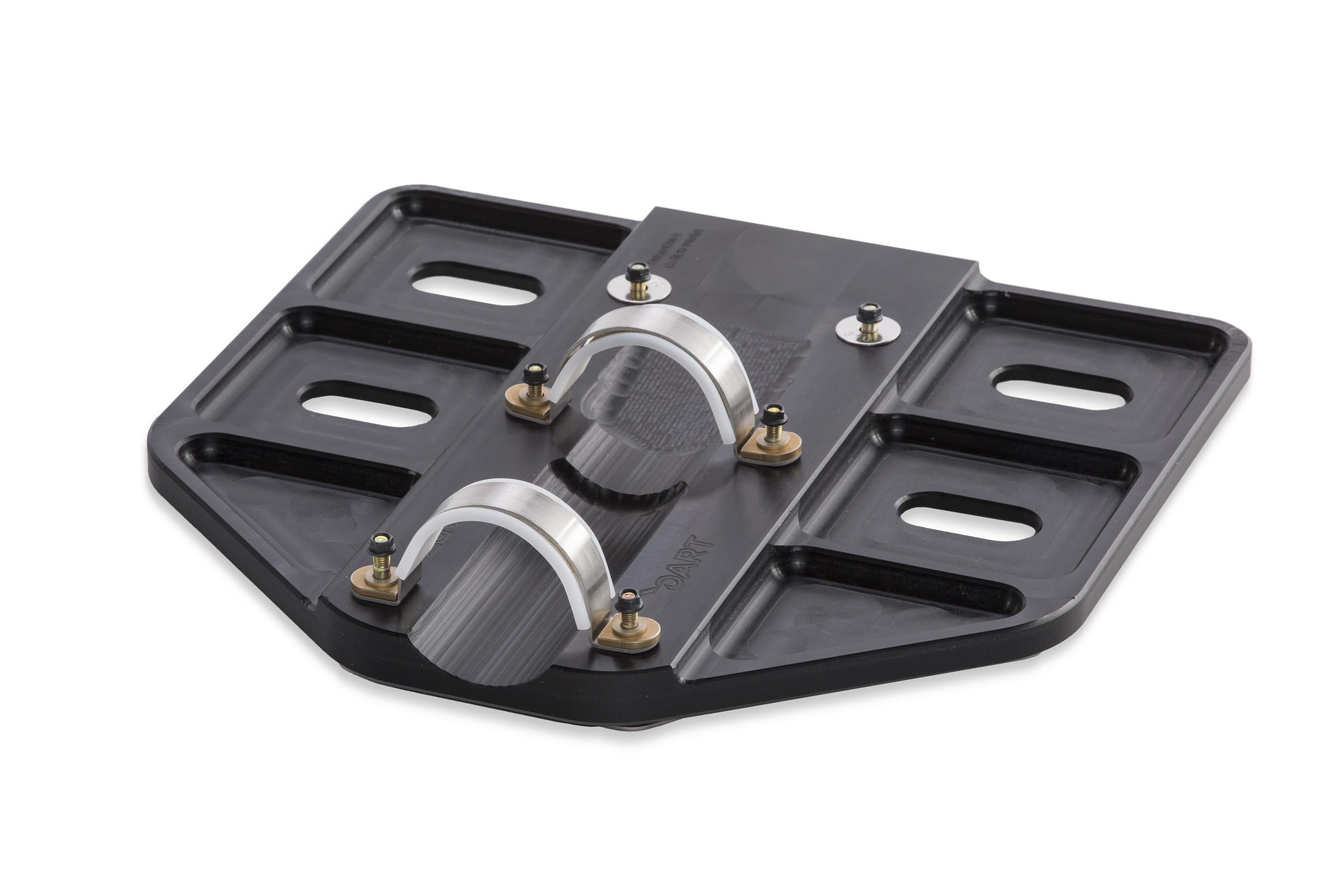

R66 Bearpaws with Wearplates - Large

Mission Equipment
Part Number: D066-1001-013
Aircraft Models: Robinson - R66

Price:
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; i... Read more
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *15" wide footprint. Compatible with DART/Apical floats (DSI 9720-011 required). Price is per aircraft. Read less

Description

For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *15" wide footprint. Compatible with DART/Apical floats (DSI 9720-011 required). Price is per aircraft.

Key Features

  •   Wearplates included
  • CNC machined UHMW polymer provides consistent load transfer

Key Benefits

  • No modifications to skidtube required
  • Larger footprint

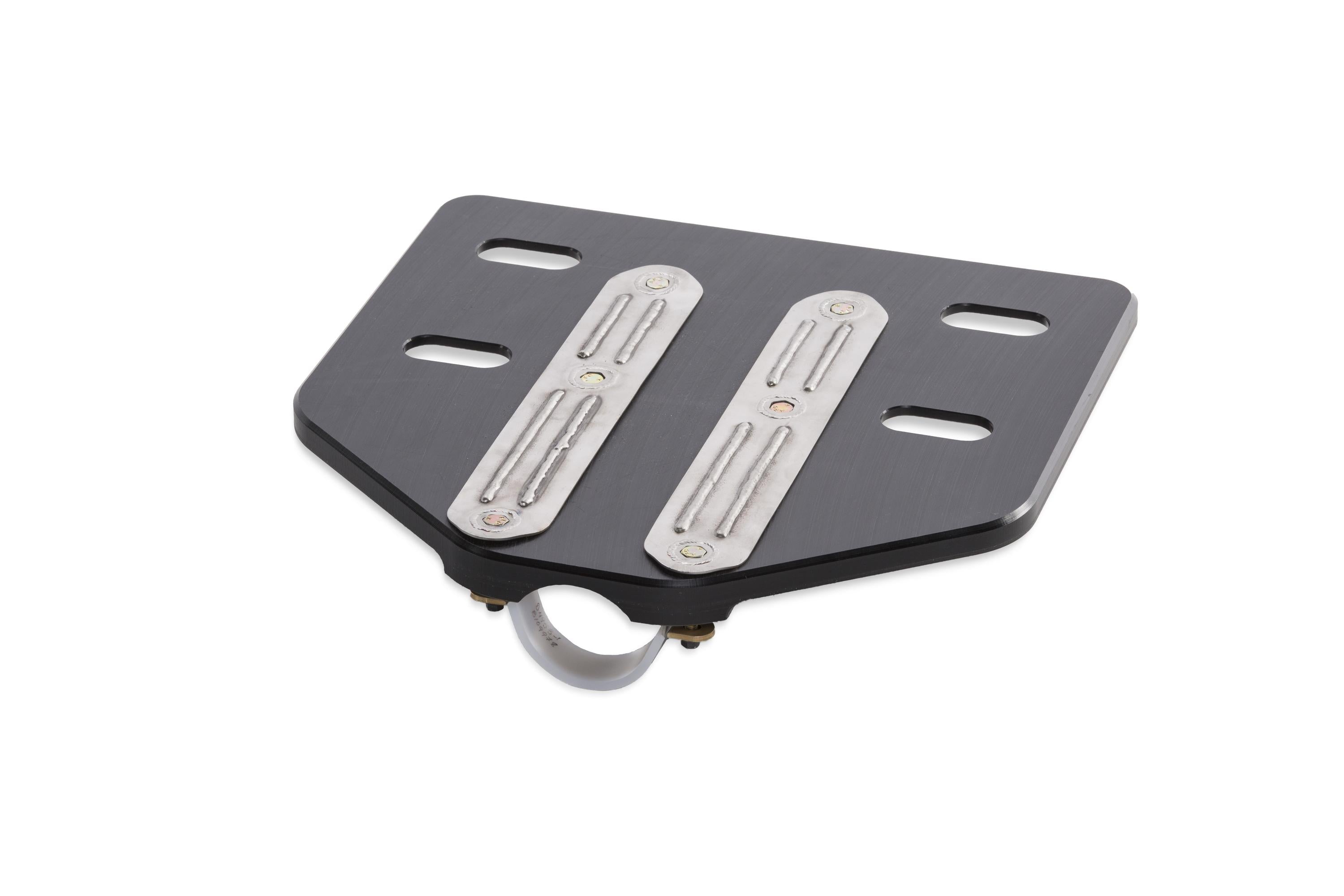

  • Wearplates provide anti-slip and wear protection
  • Wearplates ease installation of bearpaws
  • High strength polymer with memory, deflects under critical point loading without failure and returns to original shape when unloaded
  • Keeps tail high in soft terrain to prevent tail strikes
  • Lightweight
  • Easy to install
  • Won't chip, crack or break

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH13-43 R66 Utility Equipment Installation
STC FAA - USA SR03370NY R66 Utility Equipment Installation
STC EASA - Europe 10050454 R66 D066-1001 Bearpaw Installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

DART Floats; OEM Skidtubes

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 9.80 lbs / 4.41 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
