R44 Spray System

Mission Equipment
Part Number: 244-000000-200
Aircraft Models: Robinson - R44

Price:

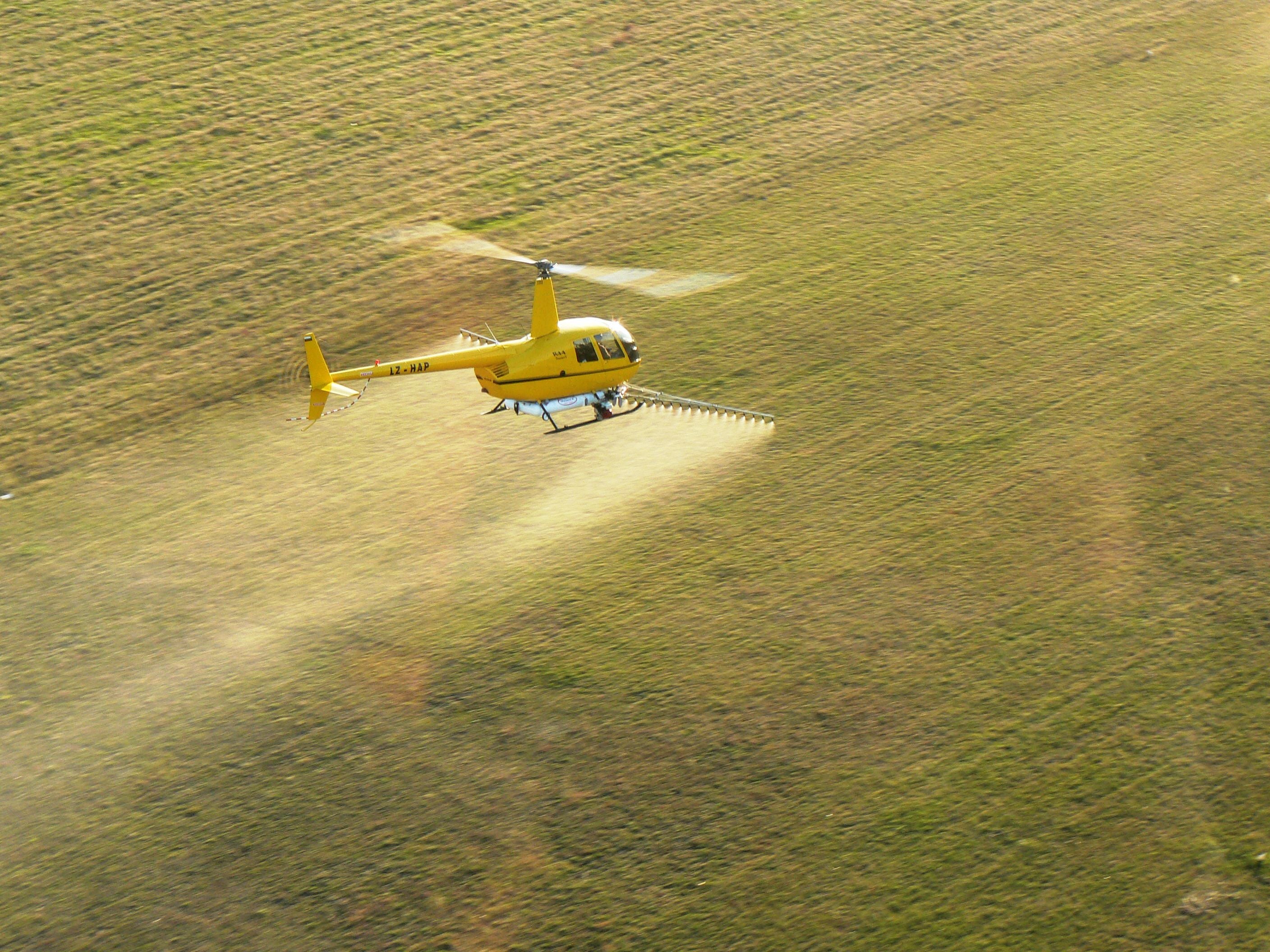

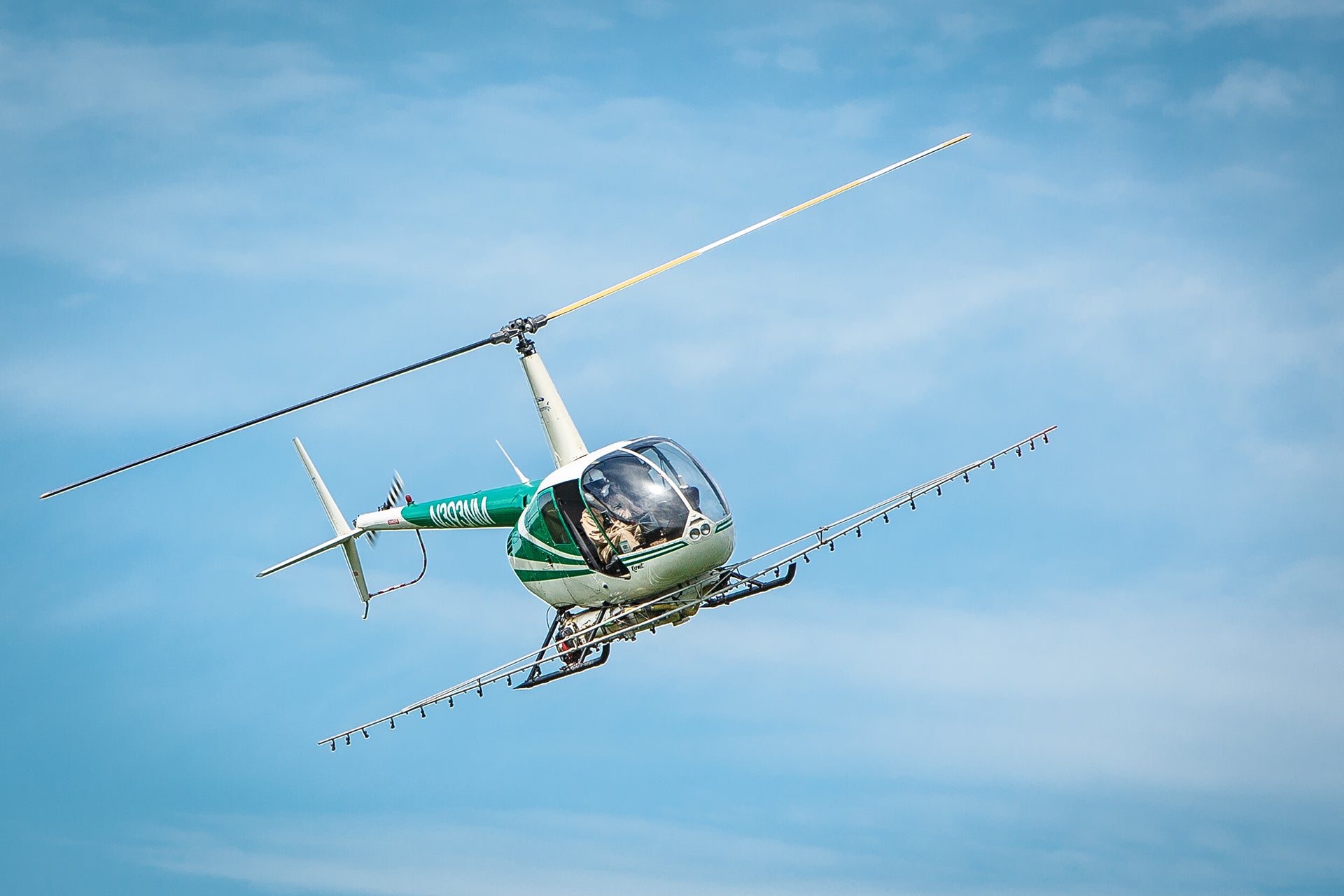

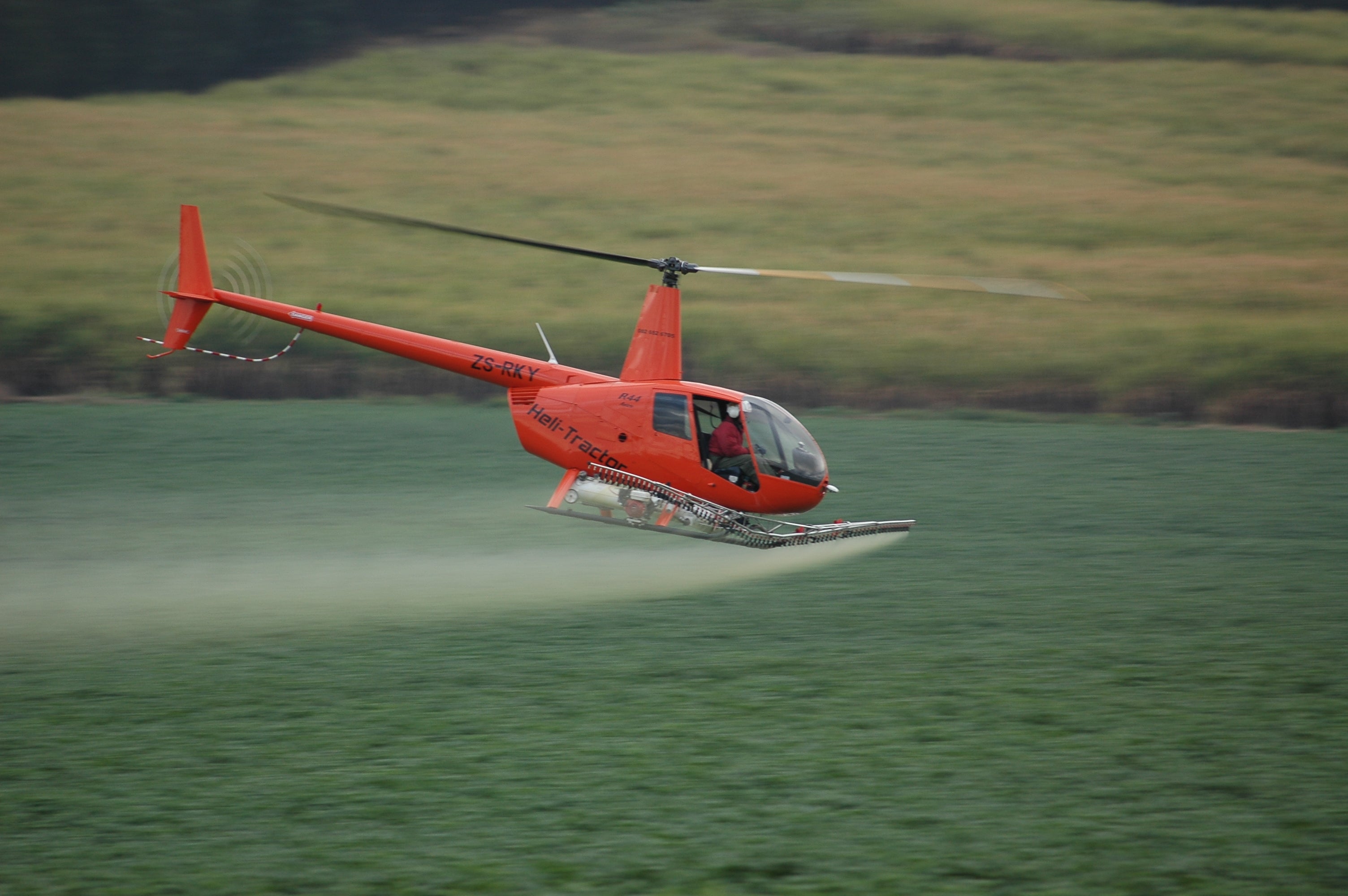

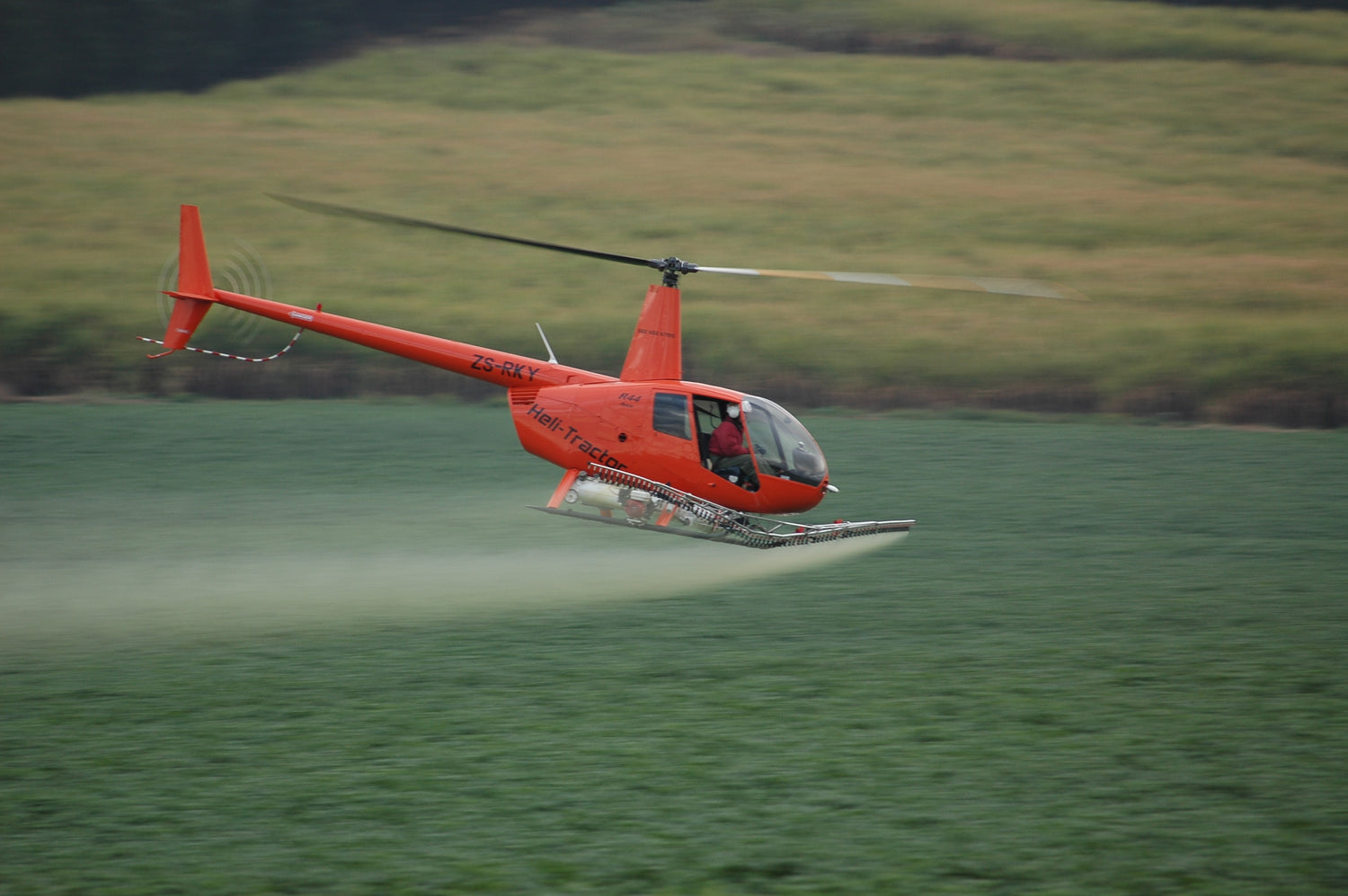

DART's Simplex Aerospace Model 244 Spray System for the Robinson R44. The system consists of a belly mounted carbon fiberglass tank, which holds 492 liters (129 gallons) of liquid.

Description

DART's Simplex Aerospace Model 244 Spray System for the Robinson R44. The system consists of a belly mounted carbon fiberglass tank, which holds 492 liters (129 gallons) of liquid.

Key Features

  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Non-corrosive parts/components
  • Forward mounted aluminum booms
  • Gas driven spray pump/motor

Key Benefits

  • The only 44 system w/ simultaneous cargo hook access
  • Aerodynamic design results in low drag
  • FAA certified for day VFR
  • Compatible with 12 or 24 volt Robinsons
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR00286BO R44/R44II Installation of 244 Spray System
STC TCCA - Canada 5010-O-13-0215 R44/R44II Installation of 244 Spray System
STC DGCA - Mexico IA-434/2017 R44II Installation of 244 Spray System
STC CAAC - China VSTC0443 R44/R44II Installation of 244 Spray System
STC ANAC - Brazil 2015S05-06 R44/R44II Installation of 244 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 206 lb / 93 kg

Load Capacity And Volume

  • Volume: 130 gal / 492 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
