Description

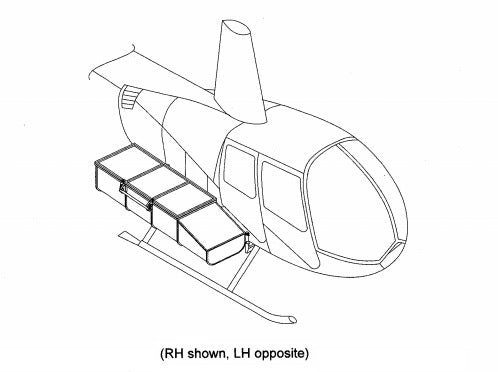

The DART Cargo Basket features a quick release mounting system, that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of a high resistance steel for extra durability. Enhanced safety with an innovative double locking mechanism, that ensures the basket lid will not open, even if the handle is not completely latched.
Key Features
- Self locking handle catches basket lid if not closed completely
- No Tooling required to remove basket
- Mounting provisions can be easily removed
- Compatible with C014-27 (standard gear) or C014-30 (ext. gear)
Key Benefits
- Hinged lid with self-locking handle
- Quick release basket, no tools required
- Quick release mechanism attached to protruding beams, not the landing gear
- Protruding beams attach directly to fuselage
- Pilot can remove/install basket without maintenance staff
- Welded steel structure for extra durability
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH10-48 | R44/R44II | Cargo Basket Installation |
| STC | FAA - USA | SR02991NY | R44/R44II | Cargo Basket Installation |
| STC | EASA - Europe | 10050758 | R44/R44II | Cargo Basket Installation |
