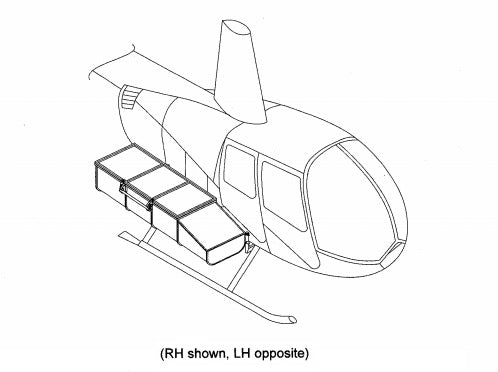

R44 QR Cargo Basket Installation, LH

Mission Equipment
Part Number: D044-1087-011
Aircraft Models: Robinson - R44

Price:
The DART Cargo Basket features a quick release mounting system, that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of a high resistance steel for extra durability. Enhanced safety with an innovative double locking mechanism, that ensures the basket lid will not open, even if the handle is not completely latched.

Description

The DART Cargo Basket features a quick release mounting system, that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of a high resistance steel for extra durability. Enhanced safety with an innovative double locking mechanism, that ensures the basket lid will not open, even if the handle is not completely latched.

Key Features

  • Self locking handle catches basket lid if not closed completely
  • No Tooling required to remove basket
  • Mounting provisions can be easily removed
  • Compatible with C014-27 (standard gear) or C014-30 (ext. gear)

Key Benefits

  • Hinged lid with self-locking handle
  • Quick release basket, no tools required
  • Quick release mechanism attached to protruding beams, not the landing gear
  • Protruding beams attach directly to fuselage
  • Pilot can remove/install basket without maintenance staff
  • Welded steel structure for extra durability

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH10-48 R44/R44II Cargo Basket Installation
STC FAA - USA SR02991NY R44/R44II Cargo Basket Installation
STC EASA - Europe 10050758 R44/R44II Cargo Basket Installation

OEM Cross References

OEM Replacement / 90601-01-02

External Warning

Only one basket may be installed at a time, LH or RH.

Prerequisite

N/A

Compatible With

Compatible with C014-27 (standard gear) or C014-30 (ext. gear)

Not Compatible With

N/A

Flight Restrictions

None

Installation Time

N/A

Dimensions And Weight

  • Length: 75.3"/1.92m
  • Width: 21" / 0.53m
  • Weight Display: 53.4lb / 24.2kg

Load Capacity And Volume

  • Volume: 13.3ft3 /0.38m3
  • Load Capacity: 175 lbs / 79.4 kg

Technical Documentation

N/A

Downloads

N/A
