Quick Release Maintenance Step, RH

Part Number: D139-799-212
Aircraft Models: AgustaWestland - AW139

Price:
Our Maintenance Step Kit provides a secure work platform that is ideally located on the left and/or right side of the aircraft roof so that it can be used by the pilot and maintenance personnel to perform inspections on the main rotor and transmission. The fixed provisions install easily with bolts into existing plug locations (for blade fold and mooring provisions) at STA 5795.0 and 5128.3 and the quick release step secures to fixed provisions in seconds locking in p... Read more
Our Maintenance Step Kit provides a secure work platform that is ideally located on the left and/or right side of the aircraft roof so that it can be used by the pilot and maintenance personnel to perform inspections on the main rotor and transmission. The fixed provisions install easily with bolts into existing plug locations (for blade fold and mooring provisions) at STA 5795.0 and 5128.3 and the quick release step secures to fixed provisions in seconds locking in place with 2 push pins. Step can then be removed without tools for improved aesthetic and weight savings. Fabricated from sturdy CNC machined components, the Maintenance Steps feature a non-slip embossed relief pattern for added personnel safety and a machined design for additional durability. *Provisions install at existing plug locations at STA 5795.0 and 5128.3 on the LH roof. Not compatible with MR Blade Fold & Helicopter Mooring Provisions kit. Cannot be used for mooring/securing the helicopter. 1 kit completes the RH side of the aircraft. Read less

Description

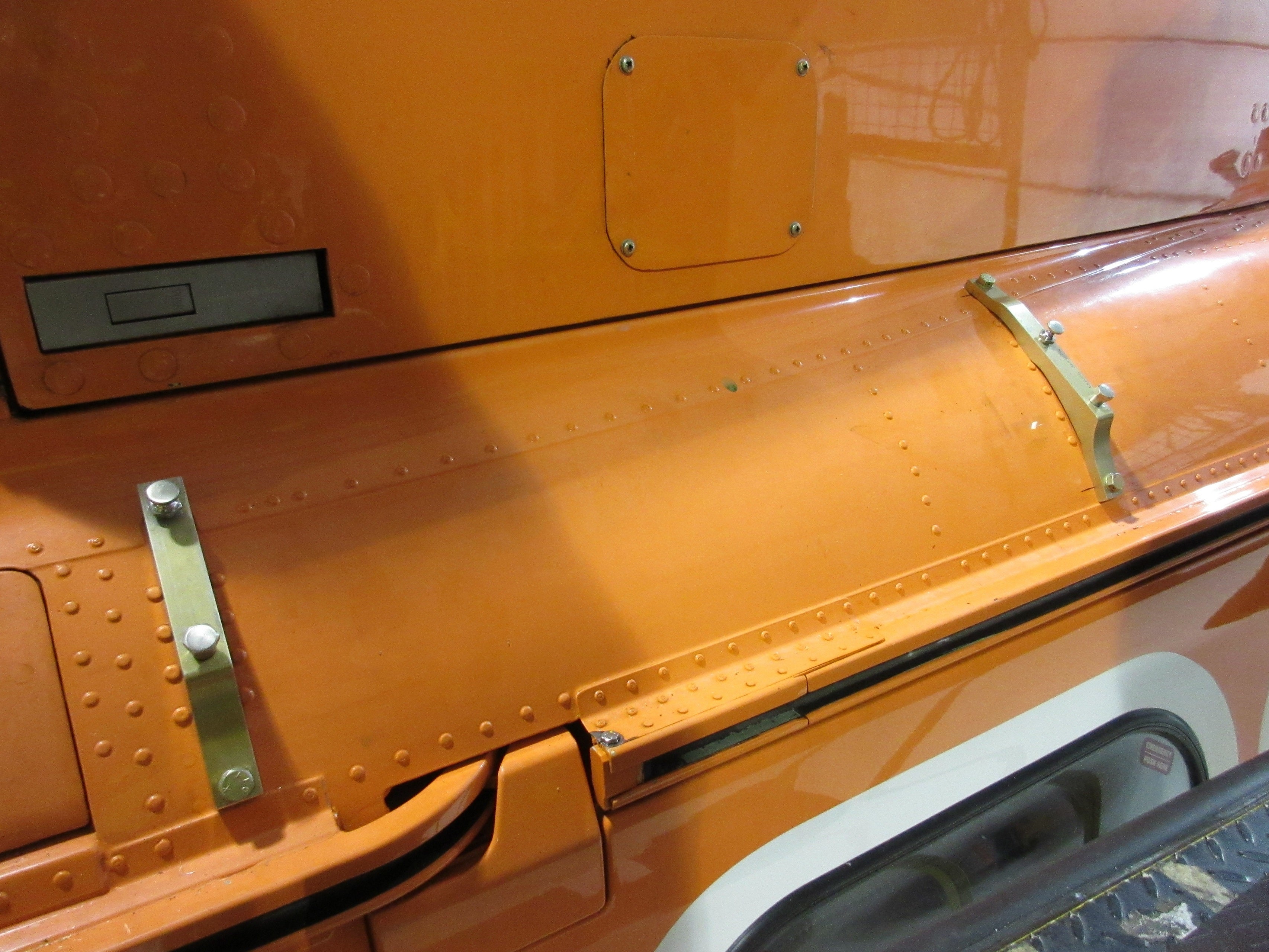

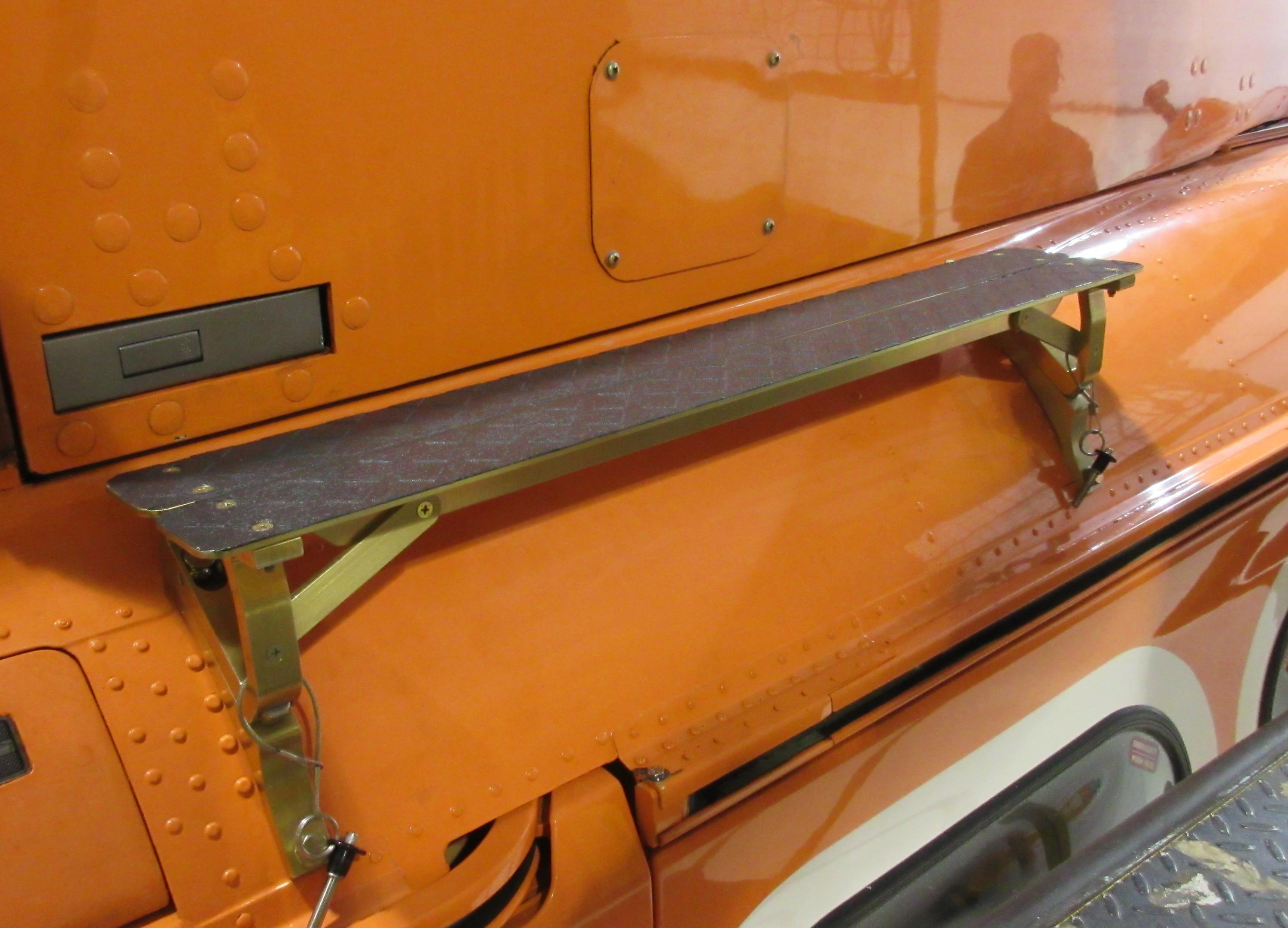

Our Maintenance Step Kit provides a secure work platform that is ideally located on the left and/or right side of the aircraft roof so that it can be used by the pilot and maintenance personnel to perform inspections on the main rotor and transmission. The fixed provisions install easily with bolts into existing plug locations (for blade fold and mooring provisions) at STA 5795.0 and 5128.3 and the quick release step secures to fixed provisions in seconds locking in place with 2 push pins. Step can then be removed without tools for improved aesthetic and weight savings. Fabricated from sturdy CNC machined components, the Maintenance Steps feature a non-slip embossed relief pattern for added personnel safety and a machined design for additional durability. *Provisions install at existing plug locations at STA 5795.0 and 5128.3 on the LH roof. Not compatible with MR Blade Fold & Helicopter Mooring Provisions kit. Cannot be used for mooring/securing the helicopter. 1 kit completes the RH side of the aircraft.

Key Features

  • Quick release
  • Provides a secure work platform
  • Sturdy CNC machined components
  • Non-slip embossed relief pattern
  • Installs on the right side of the aircraft roof

Key Benefits

  • Ideal to perform inspections on main rotor and transmission
  • Easy installation
  • Weight savings compared to permanently installed maintenance steps

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-444/2017 AB139/AW139 Maintenance Kit Installations
STC CAAC - China VSTC0869 AB139/AW139 Installation of D139-799 Maintenance Kits
STC DCA - Malaysia VSTC/2022/016 AB139/AW139 Installation of DART D139-799 Maintenance Kits
STC EASA - Europe 10038656, Rev 1 AW139 Maintenance Kit Installations
STC ANAC - Brazil 2012S02-13 AB139/AW139 Maintenance Kit Installations
STC TCCA - Canada LoA C-11-0841 AB139/AW139 Maintenance Kit Installations
STC FAA - USA SR02138SE AB139/AW139 Maintenance Kit Installations
STC JCAB - Japan STC-425-1-TYO AW139 Installation of D139-799-011/-012/-112 Maintenance Step Kits

OEM Cross References

N/A

External Warning

Cannot be used for mooring/securing the helicopter.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

MR Blade Fold & Helicopter Mooring Provisions Kit

Flight Restrictions

N/A

Installation Time

3 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: Weight of provisions only: 1.1 lbs / .50 kg - Weight with step installed: 6.2 lbs / 2.8 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
