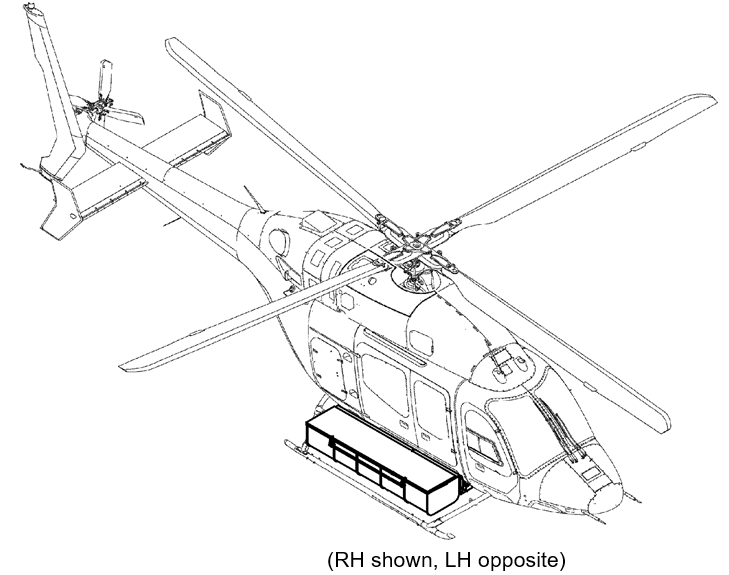

RH Quick Release Heli Utility Basket™


Part Number: D429-1085-012

Aircraft Models: Bell - 429

  • In stock

The DART Cargo Basket™ has a quick-release mounting system that allows the user to remove & install the basket quickly and without tools. The basket is made of high-resistance steel for added durability; coated with a high-gloss scratch-resistant white finish. Enhanced safety with a unique double locking system that prevents the basket lid from opening even if the handle is not fully latched. Ease of use using a gas spring to help open and close the lid.


Key Features

  • ONLY APPLICABLE TO POST SN 57081
  • Quick release basket, no tools required
  • Quick release mechanism attached to protruding beams, not the landing gear
  • Protruding beams attach directly to fuselage
  • Pilot can remove/install basket without maintenance staff
  • Welded steel structure for extra durability

Key Benefits

  • ONLY APPLICABLE TO POST SN 57081
  • Self locking handle catches basket lid if not closed completely
  • No Tooling required to remove basket
  • Mounting provisions can be easily removed

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH12-58 429 Cargo Basket Installation
STC FAA - USA SR03317NY 429 Cargo Basket Installation
STC EASA - Europe 10043360 429 Cargo Basket Installation

OEM Cross References

N/A

External Warning

Only applicable to Bell 429 GlobalRanger, Serial Number: 57081 & Subsequent. If the quick release mounting system is installed, the helicopter must be equipped with either the Quick Release Cargo Basket™ or the Quick Release Cabin Step™.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

The VNE is 130 KIAS with the Quick Release Basket™ installed, however the Basic Rotorcraft's VNE is more restricted, in which case the Lower VNE applies.

Installation Time

N/A

Dimensions And Weight

  • Length: 96.5" / 2.4m
  • Width: 24" / 0.61m
  • Weight Display: 111.3 lbs / 50.6kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: 300 lbs / 136.1 kg

Technical Documentation

N/A

Downloads

N/A
