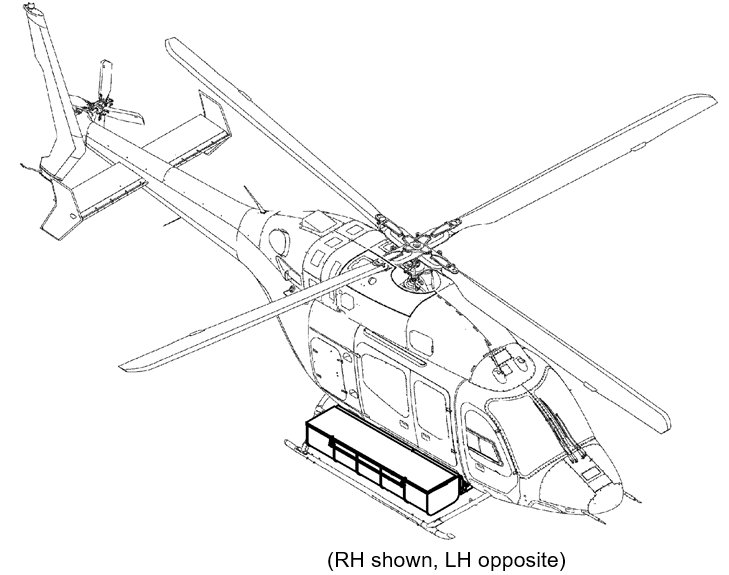

Quick Release Cargo Basket Installation, LH
Quick Release Cargo Basket Installation, LH

LH Quick Release Heli Utility Basket™


Part Number: D429-1085-011

Aircraft Models: Bell - 429

  • In stock
The DART Cargo Basket™ has a quick release mounting system that allows the user to remove & install the basket quickly and without tools. The basket is made of high-resistance steel for added durability; coated with a high-gloss scratch-resistant white finish. Enhanced safety with a unique double locking system that prevents the basket lid from opening even if the handle is not fully latched. Ease of use using a gas spring to help open and close the lid.

Key Features

  • The Quick Release system allows the basket to be removed & installed in one minute. No tools are required!!
  • Corrosion-resistant stainless steel construction with a glossy white powder coat
  • Protruding beams attach directly to the fuselage
  • Self-locking handle
  • Gas piston assisted lid
  • The required cabin step for the other side is incorporated

Key Benefits

  • Allows transportation of up to 300 Lbs (136 Kg) pounds of external cargo
  • Carry hazardous goods outside of the helicopter
  • The Quick Release system allows the basket to be removed & installed in one minute. No tools are required!!
  • If not entirely closed, the self-locking handle will catch the basket lid
  • Mounting provisions can readily be removed

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH12-58 429 Cargo Basket Installation
STC FAA - USA SR03317NY 429 Cargo Basket Installation
STC EASA - Europe 10043360 429 Cargo Basket Installation

OEM Cross References

N/A

External Warning

• Only applicable to Bell 429 GlobalRanger, Serial Number: 57081 & Subsequent. • If the quick release mounting system is installed, the helicopter must be equipped with either the Quick Release Cargo Basket™ or the Quick Release Cabin Step™.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

• The VNE is 130 KIAS with the Quick Release Basket™ installed, however the Basic Rotorcraft's VNE is more restricted, in which case the Lower VNE applies.

Installation Time

N/A

Dimensions And Weight

  • Length: 96.5" / 2.4m
  • Width: 24" / 0.61m
  • Weight Display: 111.3 lbs / 50.6kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: 300 lbs / 136.1 kg

Technical Documentation

N/A

Downloads

N/A
