Description

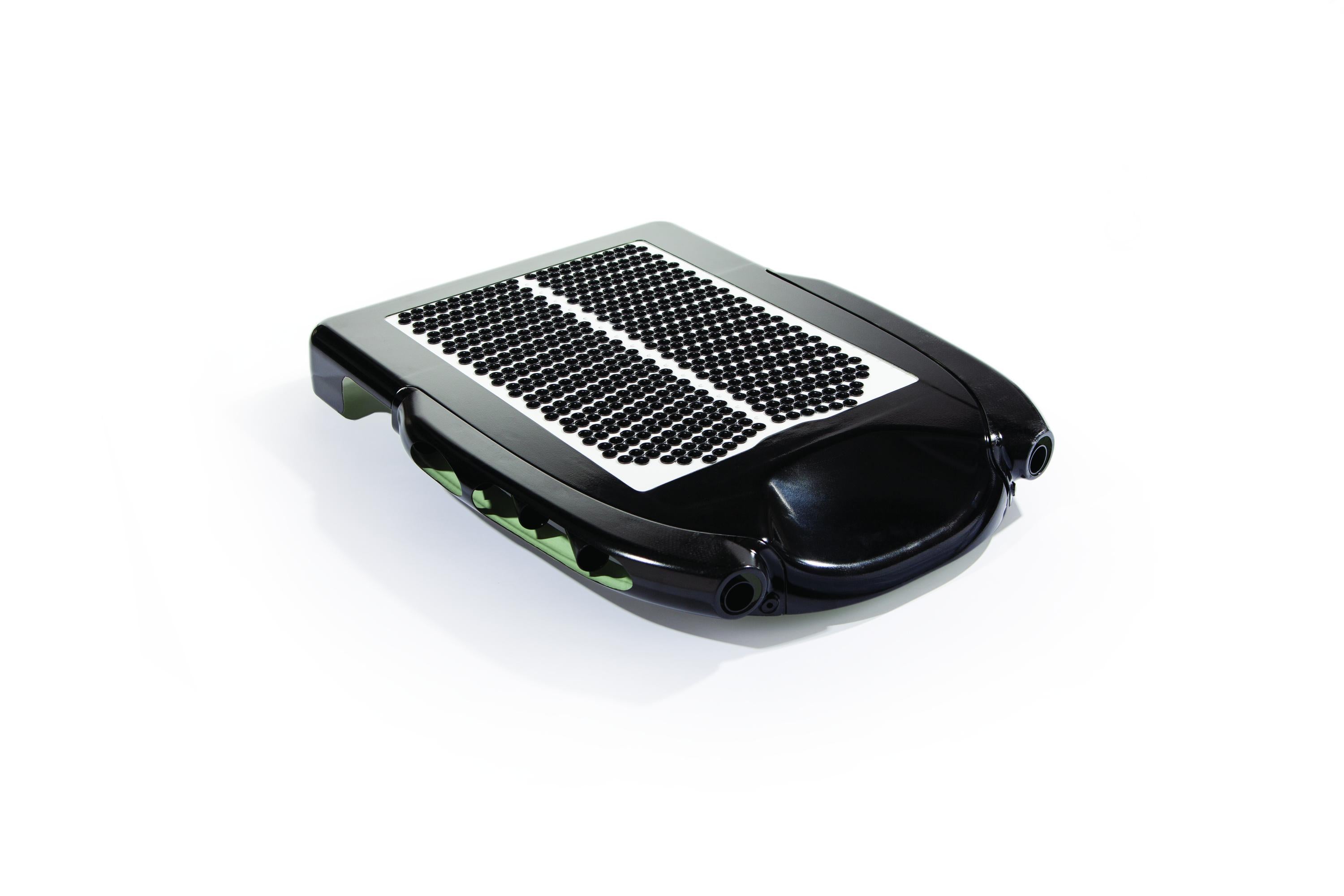

A totally redesigned, reengineered and retested engine air protection system that goes above and beyond its predecessor. This is what happens when you bring together the world's leading aerospace filtration company and the world's leading manufacturer of missionized equipment. What's more, the PA100 PUREair System increases operational availability and aircraft performance, while reducing overall maintenance and operational costs. MAJOR IMPROVEMENTS ON THE REDESIGNED SYSTEM: • Improved dust separation efficiency for AS350B/B1/B2/B3/BA • New panel location, latest generation of vortex tubes and revised tube layout. • Reduced bleed air • Optimized ejector design and no P2 bleed air valve • Filter efficient at all times • Improved FOD protection • New downstream FOD screen sitting on engine inlet • FOD protection even when cowl is open • Easier to install and maintain • Simplified installation (no P2 air valve) • No barrier filters to clean View Technical data
*For aircraft equipped with Turbomeca Arriel engines. Replaces part numbers 0617-71-01, 0617-71-02, 0617-71-03, 0617-71-04 & 0617-71-05. Mounts on existing engine cowling. Includes PALL technology, carbon fiber fairing with ejectors, transition duct, FOD screen, and hose. Compatible with VEMD.
Key Features
- Certified for use in falling and blowing snow
- Includes the latest PALL Aerospace vortex tube technology
- Improved FOD protection with the new downstream FOD screen
- Can be retrofitted on AS350/EC130 models equipped with Arriel engines
- Includes a lightweight fairing made of advanced design carbon fiber
Key Benefits
- Fit and Forget: Self-cleaning system is virtually maintenance free
- Better protection in all weather conditions
- Reduction of engine erosion damage
- Environmentally friendly solution: no need for chemical cleaning and filter replacement
- Increased protection against hot gas ingestion
Approvals
Approval type | Authority | Reference number | Aircraft approved | Description |
---|---|---|---|---|
STC | JCAB - Japan | STC-371-OSA | AS350B2/AS350B3/EC130B4 | PA100 PUREair System Installations |
STC | EASA - Europe | 10056574 Rev. 1 | AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 | Installation of Active Vortex Tube Inlet Filtration system (PA100 PUREair System) |
STC | JCAB - Japan | STC-372-OSA | AS350B/AS350B1/AS350BA | PA100 PUREair System Installation |
STC | SAAU – Ukraine | DTB0201 | AS350/AS350B2/AS350B3/EC130B4/EC130T2 | Installation of an active vortex tube inlet filtration system (PA100 PUREair System) |
STC | CAAC - China | VSTC0954 | AS350B1/AS350B2/AS350B3/EC130B4/EC130T2 | PA100 Pureair Filtration System |
STC | ANAC - Brazil | 2014S07-11 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 | Installation of an active vortex tube inlet filtration system (PA100 PUREair System) |
STC | TCCA - Canada | SH14-14 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 | Installation of an active vortex tube inlet filtration system (PA100 PUREair System) |
STC | FAA - USA | SR03538NY | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 | Installation of the PA100 PUREair System |
