New Skidtube, OEM Float & DART PMA Float Compatible - Fits LH or RH


Part Number: D412-742-021

Aircraft Models: Bell - 205

  • In stock
We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when submitted to abusive high cycle landings on tarmac or uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace’s revolutionary exclusive novel Skidtube shape takes the Skid Landing Gear to the next level. *Comes complete with saddles & full length Stainless Steel Wearplates & Wearpads. Pre-drilled for compatibility with OEM Cylindrical Float System p/n 412-050-013-117 Fwd/Mid (DART (Apical) p/n 20715.100) & 412-050-013-119 Aft (DART (Apical) p/n 20714.100). Also compatible with DART (Apical) Tri-Bag Floats. Compatible with D412-666 Gross weight handling kit.

Key Features

  • Novel one-piece Float Skidtube design
  • Compatible with OEM Float & DART PMA Float. Also compatible with DART Tri-Bag Floats
  • TCCA/FAA/EASA approved to 12,200 lb gross weight
  • LH/RH interchangeable
  • Includes standard Full-Length Thru-Bolt Wearplates
  • Pre-drilled holes for float installation
  • Comes with anti-corrosion primer
  • CNC machined split saddles (no keyway)
  • Compatible with DART and OEM Crosstubes

Key Benefits

  • 1-Piece Skid construction eliminates potential issues with Skid Extensions

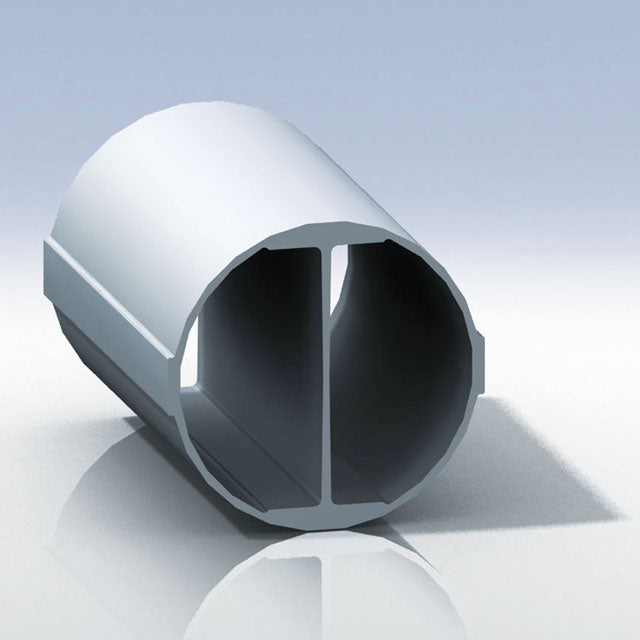

  • Exclusive novel Skidtube shape reduces denting on top and bottom of Skidtube
  • Thru-Bolt Wearplates provide easier installation and removal
  • Rubber coating on the inside of the Wearplates eliminate the need for gaskets
  • Split saddles make installation easier even in the field
  • Reduced inventory of spares (tubes are not handed)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01126 205A/205A1/205B/212/412/412CF/412EP/AB412/AB412EP D412-742 Approved Replacement Float Skidtube
STC TCCA - Canada SH05-37 205A1/205B/212/412/412CF/412EP D412-742 Approved Replacement Float Skidtube
STC FAA - USA SR01583SE 205A/205A1/205B/210/212/412/412CF/412EP/AB412/AB412EP D412-742 Approved Replacement Float Skidtube

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 72.4 lbs / 32.8 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
