Model 210 Spray System for B3

Mission Equipment
Part Number: 210-000000-002
Aircraft Models: Airbus - AS350

Price:

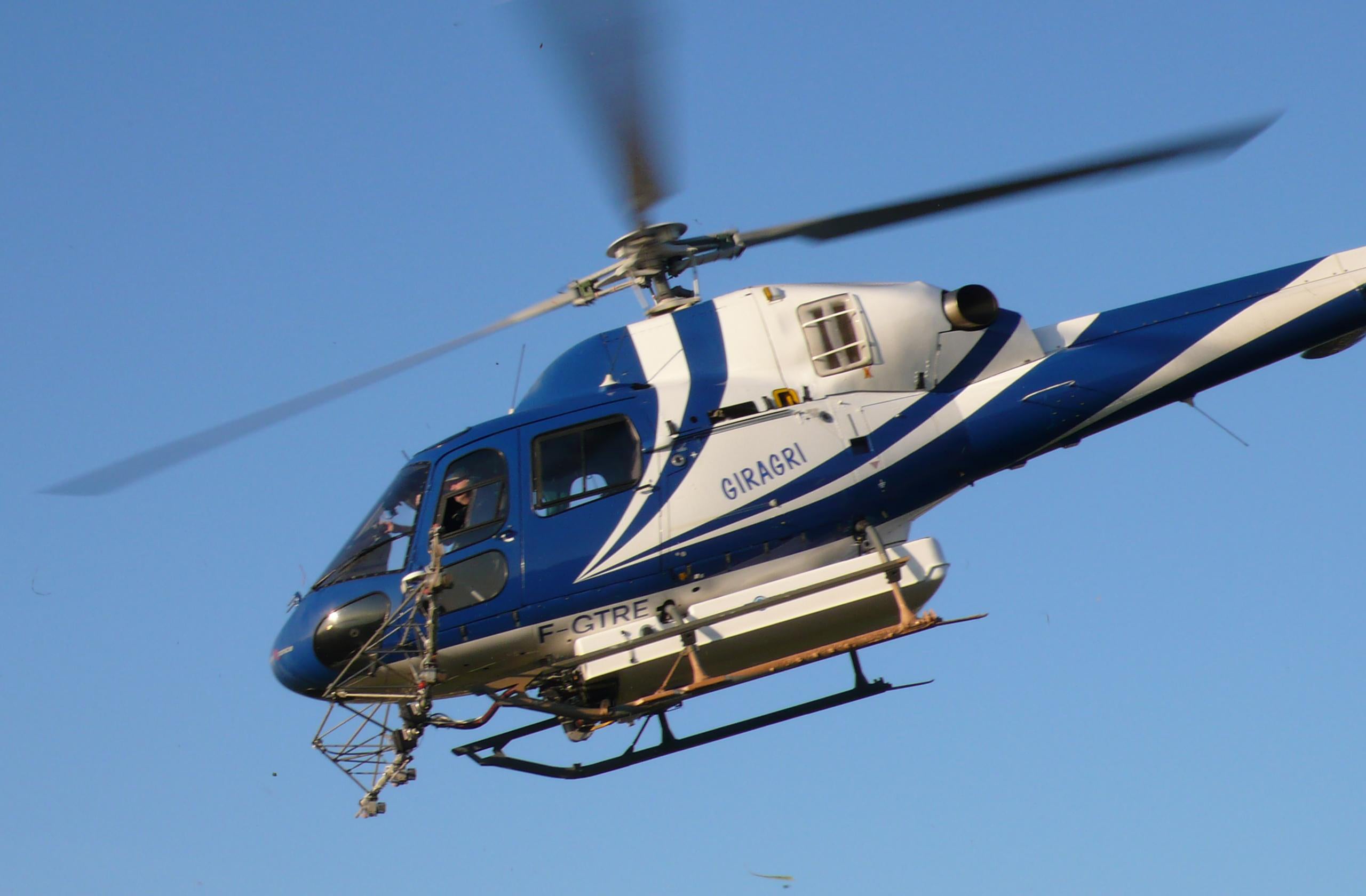

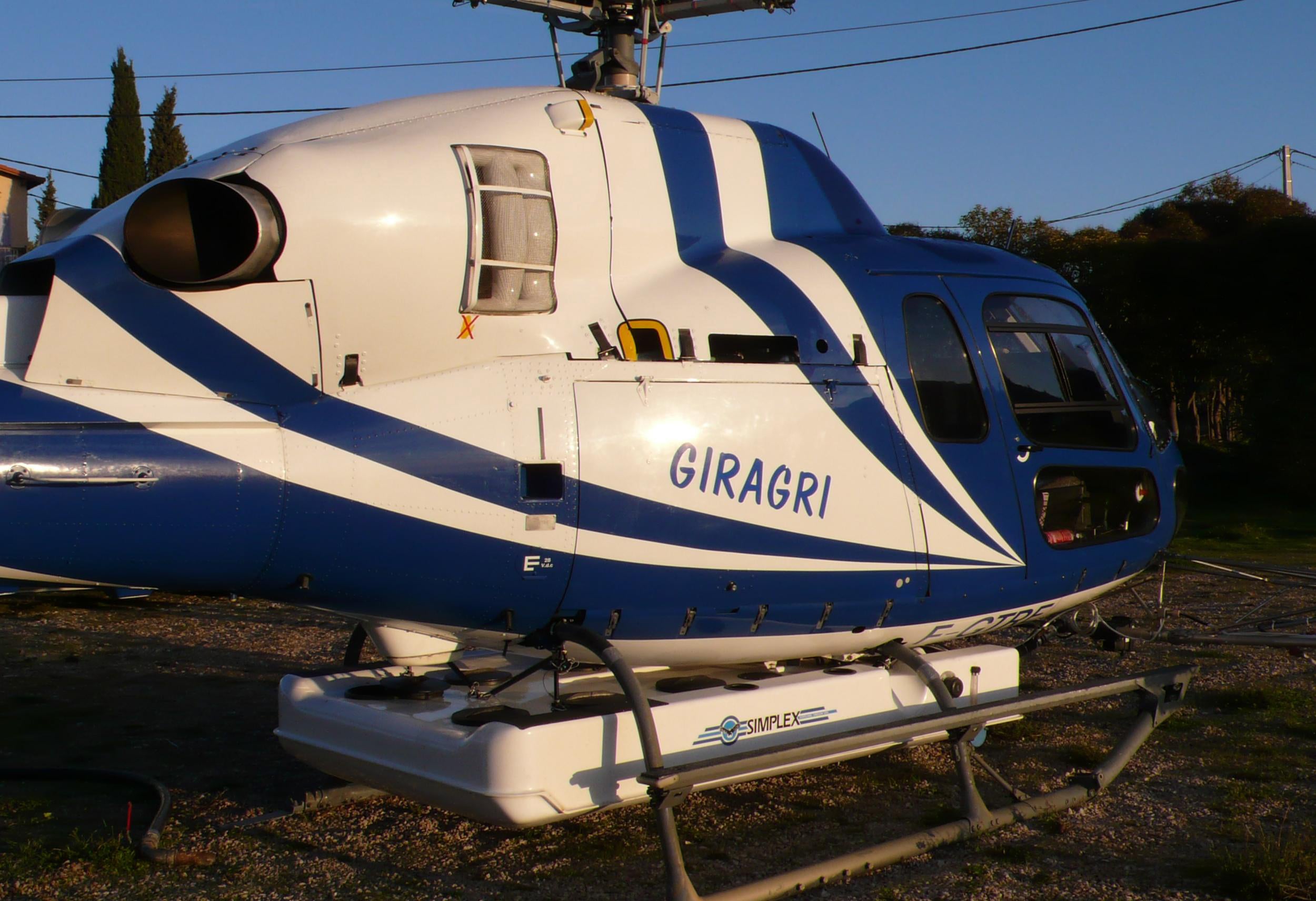

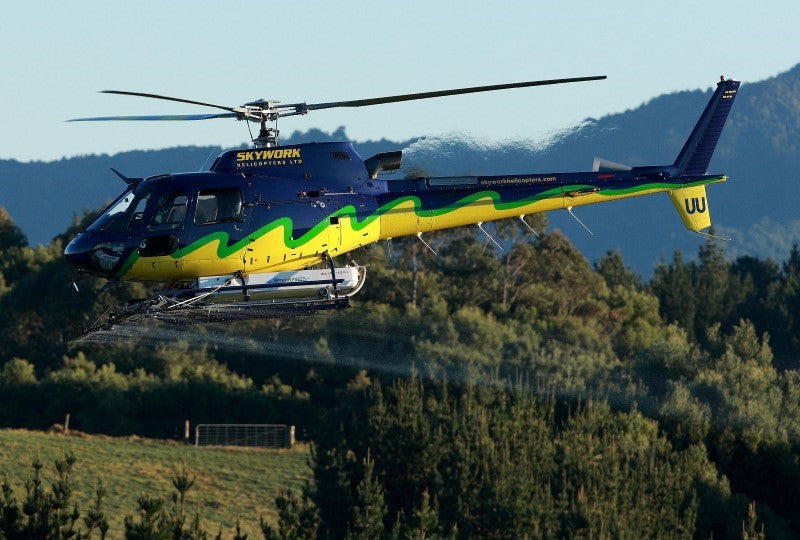

DART's Simplex Aerospace Model 210 Spray System for the Airbus Helicopters AS350 & 355 series. The system consists of a belly-mounted carbon fiberglass tank, which holds 1,007 liters (266 gallons) of liquid. The forward mounted boom has a standard width of 8 meters (25 ft) or optional width of 9 meters (29 ft).

Description

DART's Simplex Aerospace Model 210 Spray System for the Airbus Helicopters AS350 & 355 series. The system consists of a belly-mounted carbon fiberglass tank, which holds 1,007 liters (266 gallons) of liquid. The forward mounted boom has a standard width of 8 meters (25 ft) or optional width of 9 meters (29 ft).

Key Features

  • Certified for AS350 B3
  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Forward mounted (80% RD) booms (24ft/7m)
  • Electrically driven spray pump and motor
  • Optional rotary atomizers and flow meter.
  • 57 Nozzle Ports

Key Benefits

  • Aerodynamic design results in low drag
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available (200-500000-002)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR00890SE AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Installation of 210 Spray System
STC EASA - Europe IM.R.S.01514 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Installation of 210 Spray System
STC TCCA - Canada SH12-42 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Installation of 210 Spray System
STC DGCA - Mexico IA-263/2014 AS350 Installation of 210 Spray System
STC CAAC - China VSTC0819 AS350B1/AS350B2/AS350B3 Installation of 210 Spray System
STC ANAC - Brazil 2017S02-10 AS350 Installation of 210 Spray System
STC FAA - USA SR00889SE AS355E/AS355F/AS355F1/AS355F2/AS355N Installation of 210 Spray System
STC EASA - Europe IM.R.S.01502 AS355E/AS355F/AS355F1/AS355F2/AS355N Installation of 210 Spray System
STC ANAC - Brazil 2017S02-09 AS355 Installation of 210 Spray System
STC TCCA - Canada NAPA LoA 4/22/2013 AS355 Installation of 210 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 255 lb / 166 kg

Load Capacity And Volume

  • Volume: 266 gal / 1007 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
