Medium Bell Fire Attack™ System

Mission Equipment
Part Number: 304-000000-002
Aircraft Models: Bell - 205

Price:

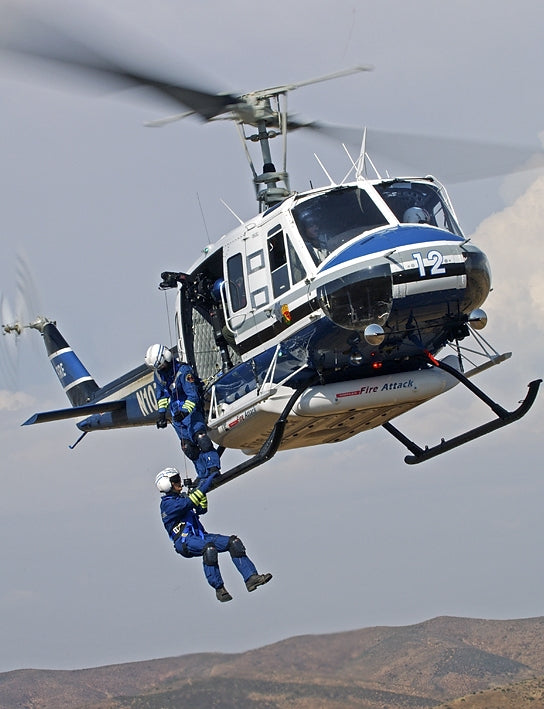

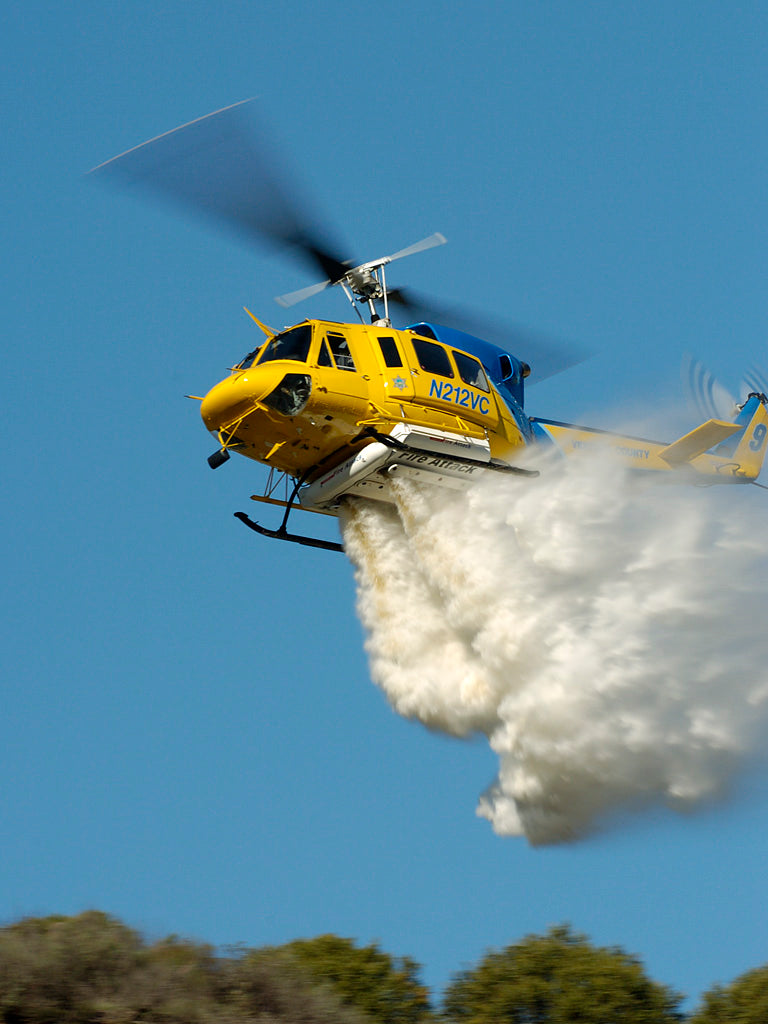

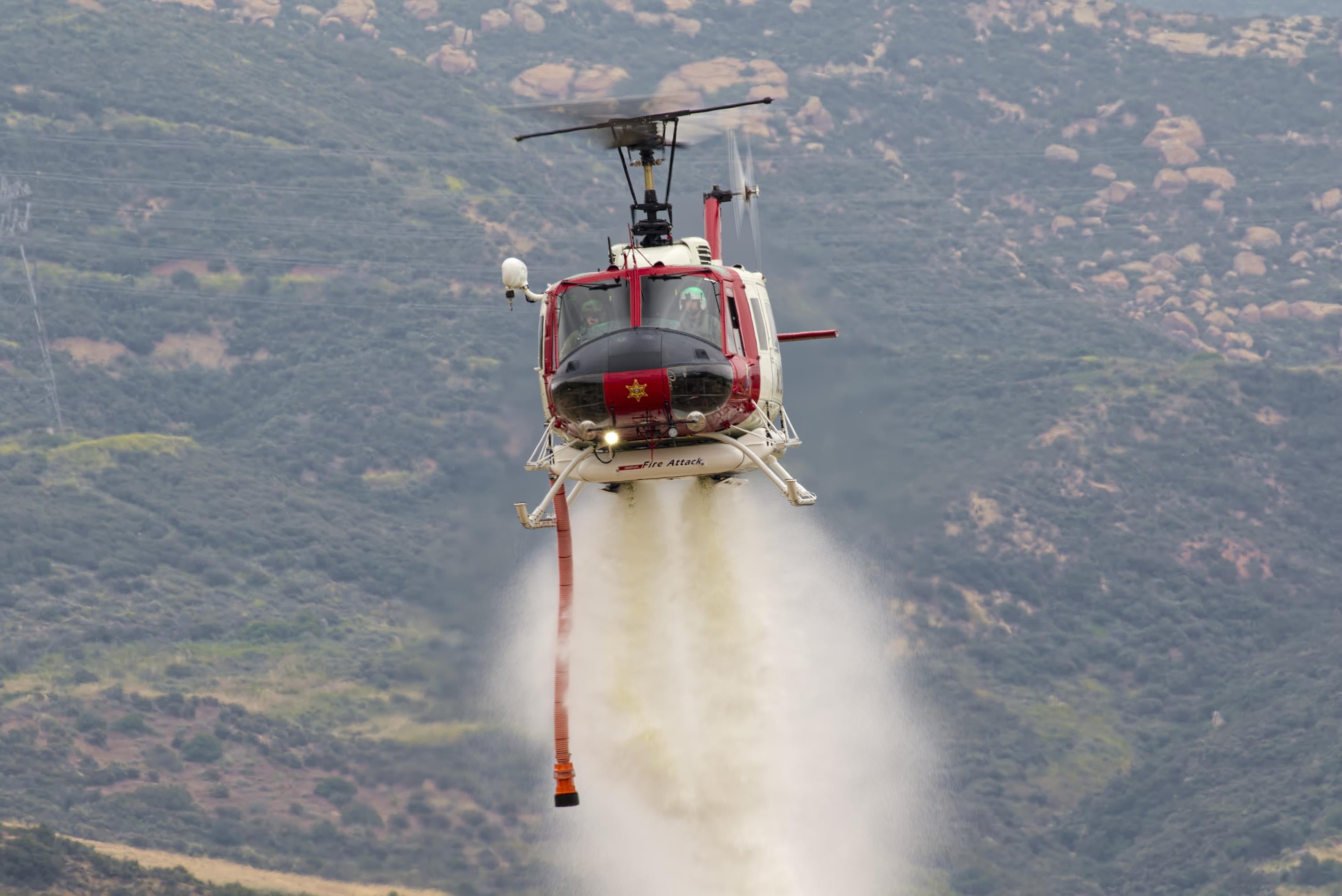

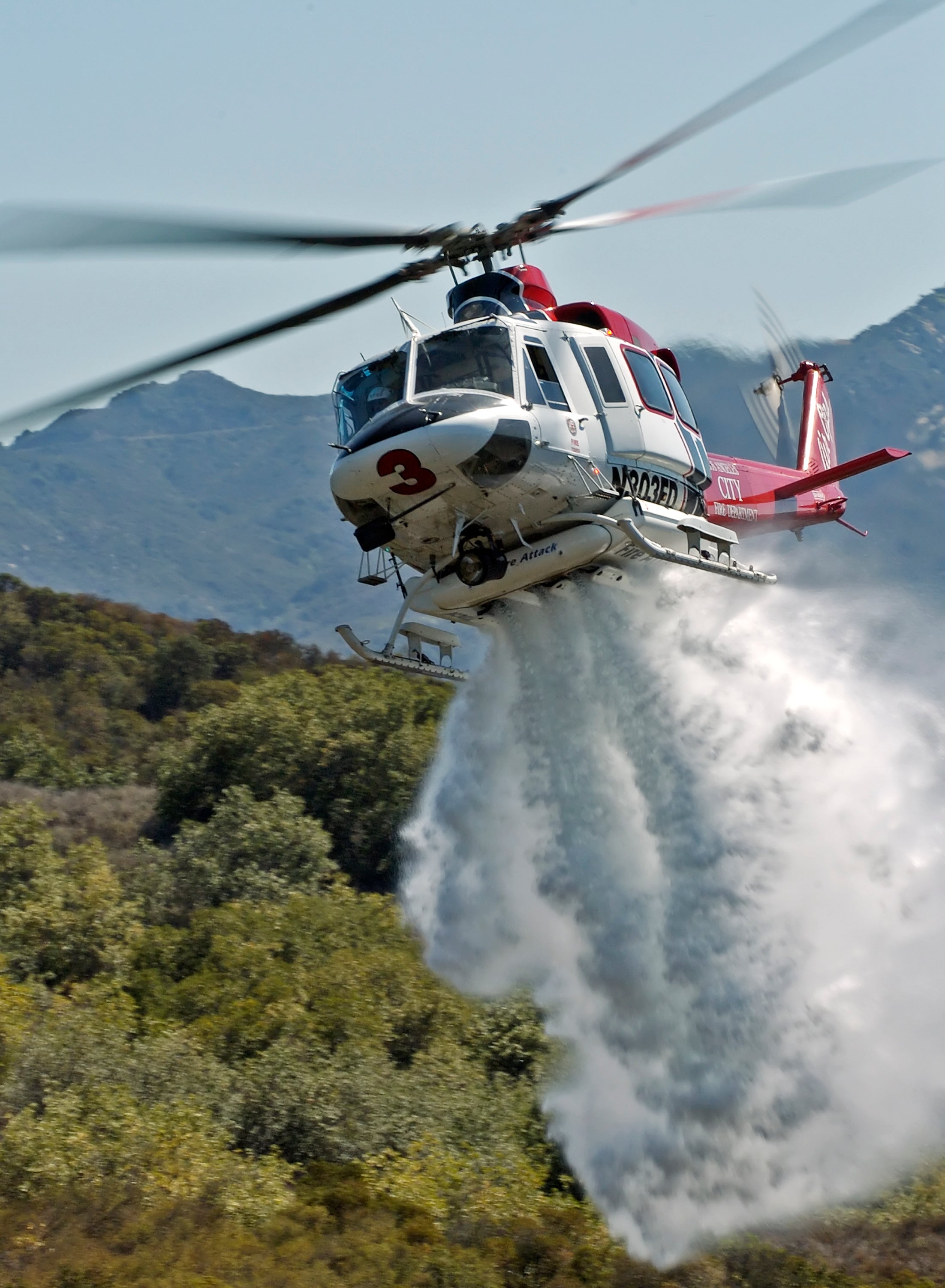

DART's Simplex Aerospace Model 304 Fire Attack™ System is a proven workhorse in the aerial firefighting industry. Compatible with Bell 205-A-1, 212, 412/EP, AB412, & UH1H models, the system consists of a belly mounted carbon fiberglass tank, which holds 1,420 liters (375 gallons) of water or 114 liters (30 gallons) of foam retardant.

Description

DART's Simplex Aerospace Model 304 Fire Attack™ System is a proven workhorse in the aerial firefighting industry. Compatible with Bell 205-A-1, 212, 412/EP, AB412, & UH1H models, the system consists of a belly mounted carbon fiberglass tank, which holds 1,420 liters (375 gallons) of water or 114 liters (30 gallons) of foam retardant.

Key Features

  • Hover refill in less than 60 seconds
  • Cargo hook access
  • Cockpit controlled selectable drop patterns
  • Optional dual controls & aft hook (for storing hover pump)

Key Benefits

  • Lightest Fire Attack System for the Medium Bell
  • Highest capacity for the Medium Bell
  • Installation/removal in 30 minutes
  • FAA certified for day/night VFR
  • Corrosion resistant surfaces and parts

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR09181RC
STC EASA - Europe RC1195
STC DGCA - Mexico IA-416/2017
STC ANAC - Argentina CTS 0707.16(A)
STC TCCA - Canada 10S-GA-05-78
STC JCAB - Japan STC-139-HQT
STC CAAC - China VSTC0677
STC ANAC - Brazil 2017S03-23

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

VNE 110 KIASl Restricted category when snorkel is deployed

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 395 lb / 179 kg

Load Capacity And Volume

  • Volume: 375 gal / 1420 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
