Description

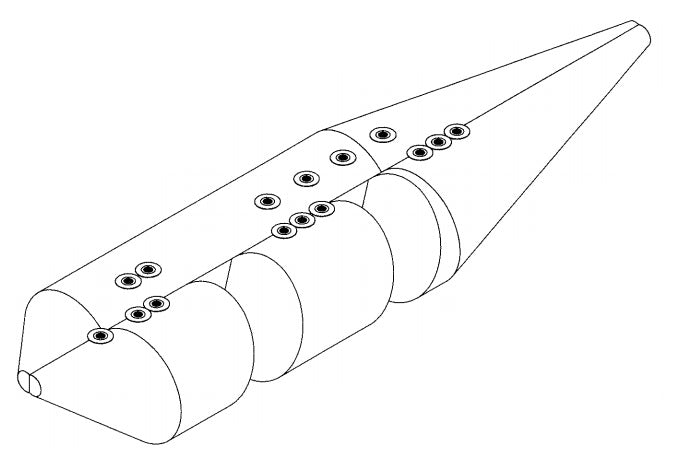

These floats are designed as replacements for the MD Float System. The floats consist of 6 separate air-holding chambers. The chambers are separated by bulkheads made of the same urethane nylon as the float tube to minimize the loss of buoyancy in the event of a puncture tear. Each chamber contains an inlet check valve for inflation by the cylinder/valve assembly, topping valve to provide a means for manual inflation and PRV for pressure relief to prevent over-pressurization.
*Price is per float.
Key Features
- OEM direct replacement float bags
- No life limit on inflatables (On-condition floats)
- Maintenance intervals based on accumulated installed time on aircraft
- Patented lightweight urethane-coated fabric
- Single float design
- Designed with multi air-holding chambers
- All float pressure relief valves are field replaceable
Key Benefits
- Plug-and-Play installation
- Worldwide R&O support
- Exchange program available
- Reduced ownership cost: no life limit on inflatables (Floats)
- Significant weight reduction vs. competition
- Best lead time
- Industry leading turn-around-time
- Economic solution vs. OEM float replacement
- Spare parts availability
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | FAA - USA | SH8041NM | MD369D/MD369E/MD369HE/MD369HM/MD369HS/MD500N | Replacement Floats |
| STC | TCCA - Canada | SH96-87 | MD369D/MD369E/MD369HE/MD369HM/MD369HS/MD500N | Replacement Floats |
