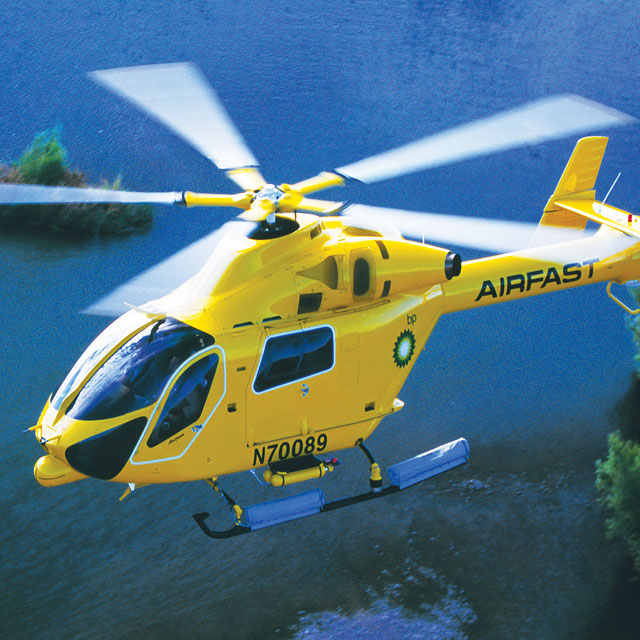

MD 900 Tri-Bag Float System (single inflation sys.)

Part Number: 20744-200
Aircraft Models: MD Helicopters - MDExplorer

Price:
The DART MD 900 Tri-Bag Emergency Float System is the only float system certified for take off after a water landing. The system includes Fwd & Aft floats manufactured using our patented lightweight urethane-coated fabric. This maintenance friendly system has longer inspection intervals and does not have to be returned to the manufacturer for recertification. For customer requiring support, DART offers worldwide R&O support and an exchange program. *Kit includes 2 Fwd & 2 Aft Tri-Bag floats. Price is for complete float system.

Description

The DART MD 900 Tri-Bag Emergency Float System is the only float system certified for take off after a water landing. The system includes Fwd & Aft floats manufactured using our patented lightweight urethane-coated fabric. This maintenance friendly system has longer inspection intervals and does not have to be returned to the manufacturer for recertification. For customer requiring support, DART offers worldwide R&O support and an exchange program. *Kit includes 2 Fwd & 2 Aft Tri-Bag floats. Price is for complete float system.

Key Features

  • Single inflation system: mechanical activation
  • No life limit on inflatables (On-condition floats & liferafts)
  • Maintenance intervals based on accumulated installed time on aircraft
  • Certified for take-off after water landing
  • Eliminates the squib pyrotechnic firing system
  • Patented lightweight urethane-coated fabric
  • Corrosion resistant stainless steel hoses, fittings & valves
  • Kit includes Fwd & Aft Floats
  • Single float design
  • All float pressure relief valves are field replaceable
  • Includes skid extensions, all parts and installation hardware
  • Compatible with Ground Handling Wheels

Key Benefits

  • Worldwide R&O support
  • Exchange program available
  • Reduced maintenance cost: longer inspection intervals vs. competition
  • Reduced ownership cost: no life limit on inflatables (Floats)
  • Significant weight reduction vs. competition
  • Best lead time
  • Industry leading turn-around-time
  • Complete aftermarket retrofit: operator/owner installed
  • Spare parts availability

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.0039 MD900 MD 900 Emergency Float Kit
STC FAA - USA SR01205LA MD900 MD900 Emergency Float Kits
STC FAA - USA SR01263LA MD900 MD900 Emergency Float and 2 Six-Man Liferaft Kits
STC CAAC - China VSTC0040A MD900 MD 900 Emergency Float Kit

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

30 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 158.00 lbs / 71.67 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
