MD 500 N Spray System

Mission Equipment
Part Number: 000-008500-000
Aircraft Models: MD Helicopters - MD500

Price:

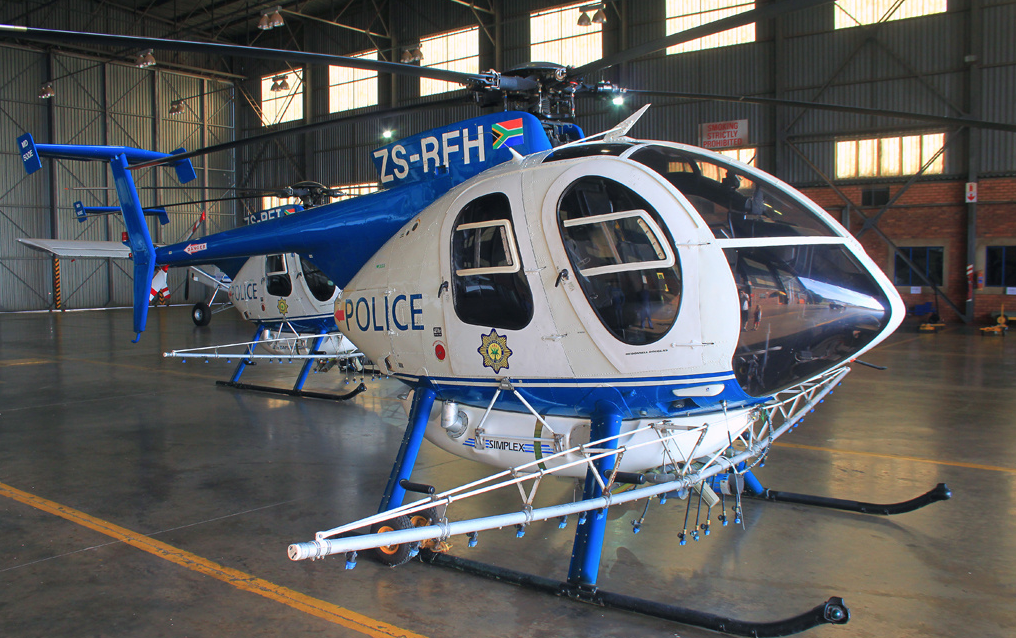

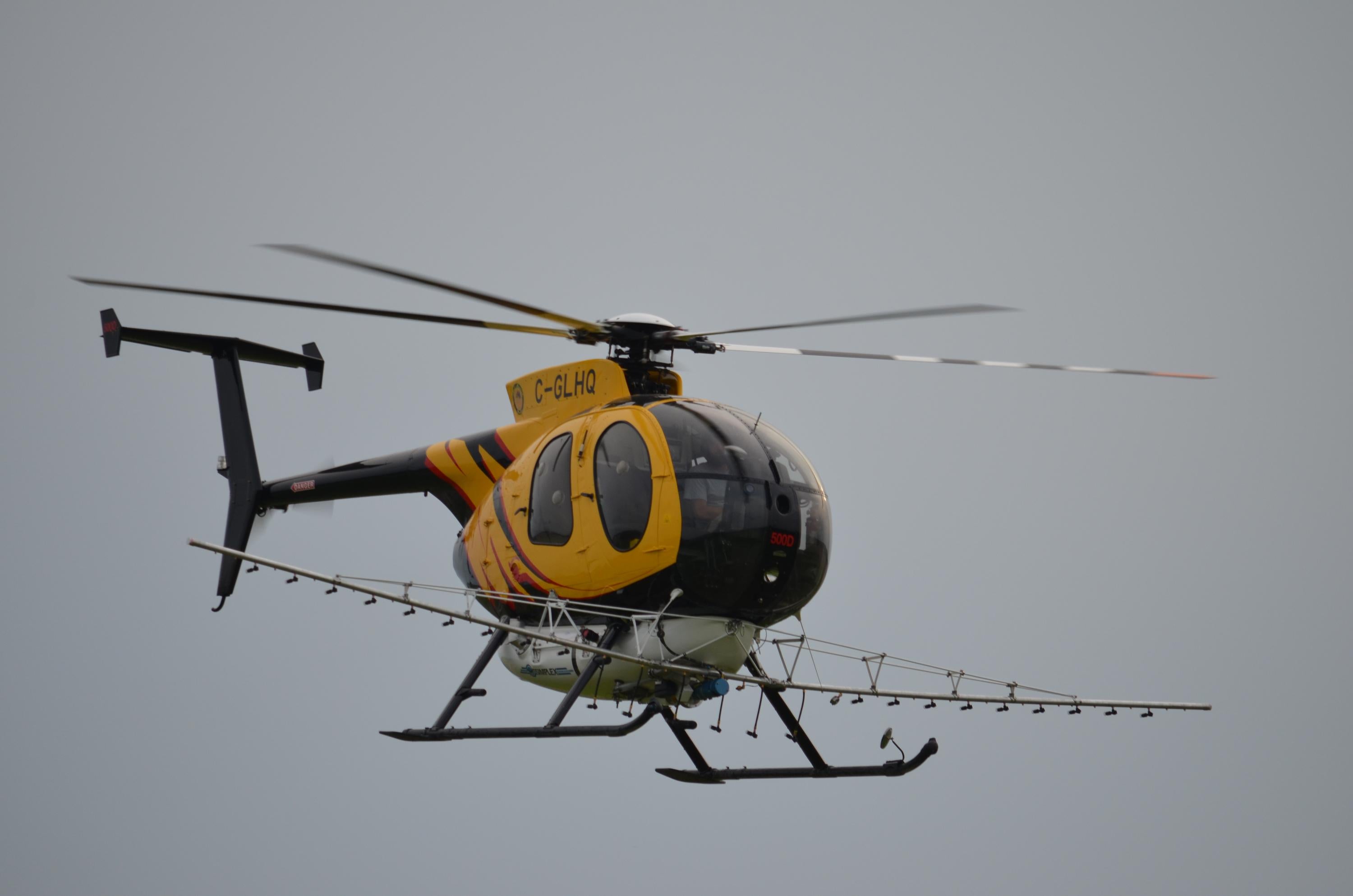

DART's Simplex Aerospace Model 8500 Spray System for the MD 500. The system consists of a belly-mounted composite tank, which holds 492 liters/130 gallons of liquid. The forward mounted boom has a width of 8 meters (27 ft)

Description

DART's Simplex Aerospace Model 8500 Spray System for the MD 500. The system consists of a belly-mounted composite tank, which holds 492 liters/130 gallons of liquid. The forward mounted boom has a width of 8 meters (27 ft)

Key Features

  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Forward mounted (100% RD) booms (27ft/8m)
  • Electric driven spray pump and motor
  • 52 Nozzle Ports

Key Benefits

  • Aerodynamic design results in low drag
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available (200-500000-002)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SH7091NM MD369/MD369A/MD369D/MD369E/MD369F/MD369FF/MD369H/MD369HE/MD369HM/MD369HS/MD500N Installation of 8500 Spray System
STC FAA - USA SH15-11 MD369/MD369A/MD369D/MD369E/MD369F/MD369FF/MD369H/MD369HE/MD369HM/MD369HS/MD500N Installation of 8500 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 221 lb / 100 kg

Load Capacity And Volume

  • Volume: 130 gal / 492 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
