Description

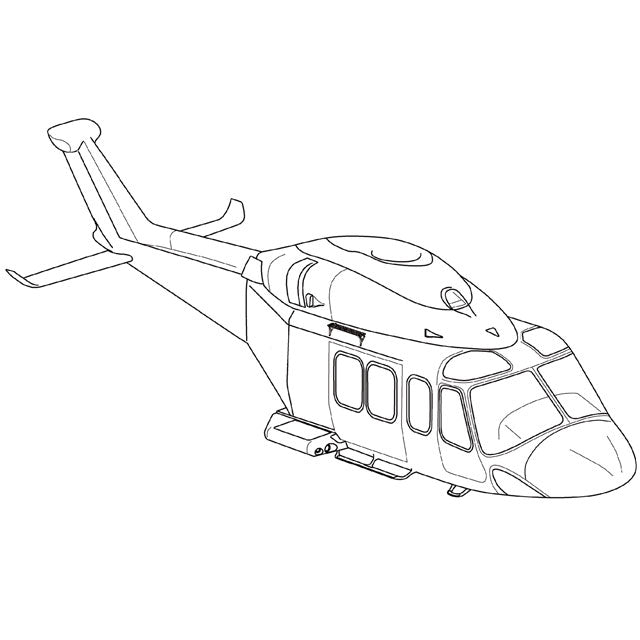

Our Maintenance Step Kit provides a secure work platform that is ideally located on the left and/or right side of the aircraft roof so that it can be used by the pilot and maintenance personnel to perform inspections on the main rotor and transmission. The kit installs easily with bolts into existing plug locations (for blade fold and mooring provisions) at STA 5795.0 and 5128.3. Fabricated from sturdy CNC machined components, the Maintenance Steps feature a non-slip embossed relief pattern for added personnel safety and a machined design for additional durability.
*Comes fully assembled. Installs into existing plug locations at STA 5795.0 and 5128.3 on LH roof. Not compatible with MR Blade Fold & Helicopter Mooring Provisions kit. Cannot be used for mooring/securing the helicopter. 1 kit completes LH side of aircraft.
Key Features
- Installs easily into existing plug locations
- Sturdy, durable CNC machined fabrication
- Non-slip embossed relief pattern
Key Benefits
- Secure platform for inspections and maintenance
- Step with grab bar (D139-799-112) provides a hand hold to assist personnel during rappel operations
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DGCA - Mexico | IA-444/2017 | AB139/AW139 | Maintenance Kit Installations |
| STC | CAAC - China | VSTC0869 | AB139/AW139 | Installation of D139-799 Maintenance Kits |
| STC | DCA - Malaysia | VSTC/2022/016 | AB139/AW139 | Installation of DART D139-799 Maintenance Kits |
| STC | EASA - Europe | 10038656, Rev 1 | AW139 | Maintenance Kit Installations |
| STC | ANAC - Brazil | 2012S02-13 | AB139/AW139 | Maintenance Kit Installations |
| STC | TCCA - Canada | LoA C-11-0841 | AB139/AW139 | Maintenance Kit Installations |
| STC | FAA - USA | SR02138SE | AB139/AW139 | Maintenance Kit Installations |
| STC | JCAB - Japan | STC-425-1-TYO | AW139 | Installation of D139-799-011/-012/-112 Maintenance Step Kits |
