Maintenance Step


Part Number: D119-675-013

Aircraft Models: AgustaWestland - AW119

  • In stock STOCK STOCK Please contact sales for a lead time Please contact sales for a lead time

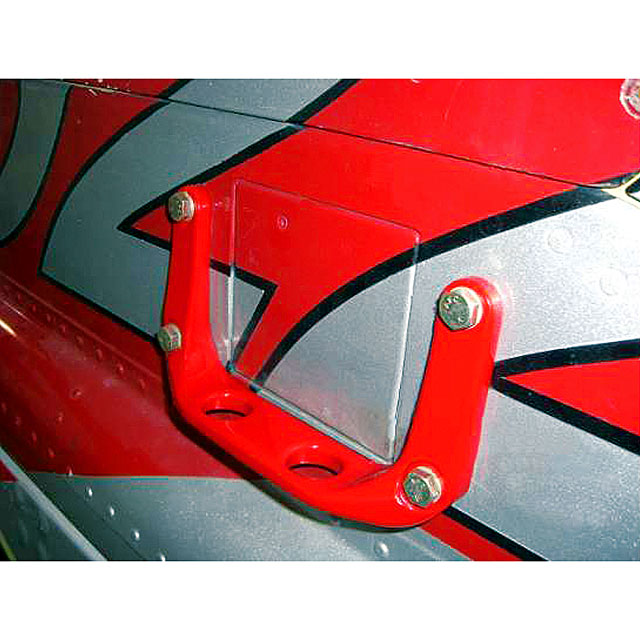

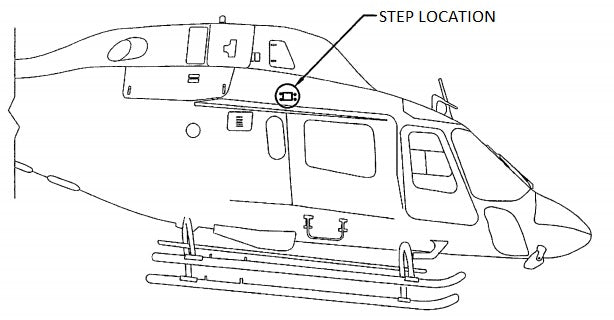

Our Maintenance Steps consist of 2 maintenance step / tiedown brackets that are attached to existing hardpoints at STA 130 (3310mm) and WL 58 (1475mm). The Maintenance Step increases the area of the existing maintenance steps for improved security and provides additional tiedown points for the aircraft. *Includes both LH and RH Steps. Installs below existing maintenance step. 1 kit completes 1 aircraft.

Key Features

  • Attaches to existing hardpoints
  • Provides additional tie down points
  • Installs below existing maintenance step
  • Kit includes LH & RH steps

Key Benefits

  • Increases safety for personnel during inspections and maintenance
  • Increases the stepping area of the existing maintenance step

Approvals

Approval type Authority Reference number Aircraft approved Description
STC ANAC - Brazil 2009S02-06 AW119/AW119MKII Heli-Access-Step™
STC EASA - Europe EASA.IM.R.S.01458 AW119/AW119MKII Heli-Access-Step™
STC FAA - USA SR00948SE AW119/AW119MKII Heli-Access-Step™
Aircraft Type Certificate IAC AR - Russia CT316 AW119MKII AW119 Type Certificate
STC TCCA - Canada LoAC-11-0119/C-11-0120/C-11-0121 AW109S/AW119/AW119MKII Bearpaws, Heli-Access-Step™, Cargo Mirror

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

None

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 1.06 lbs / 0.48 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
