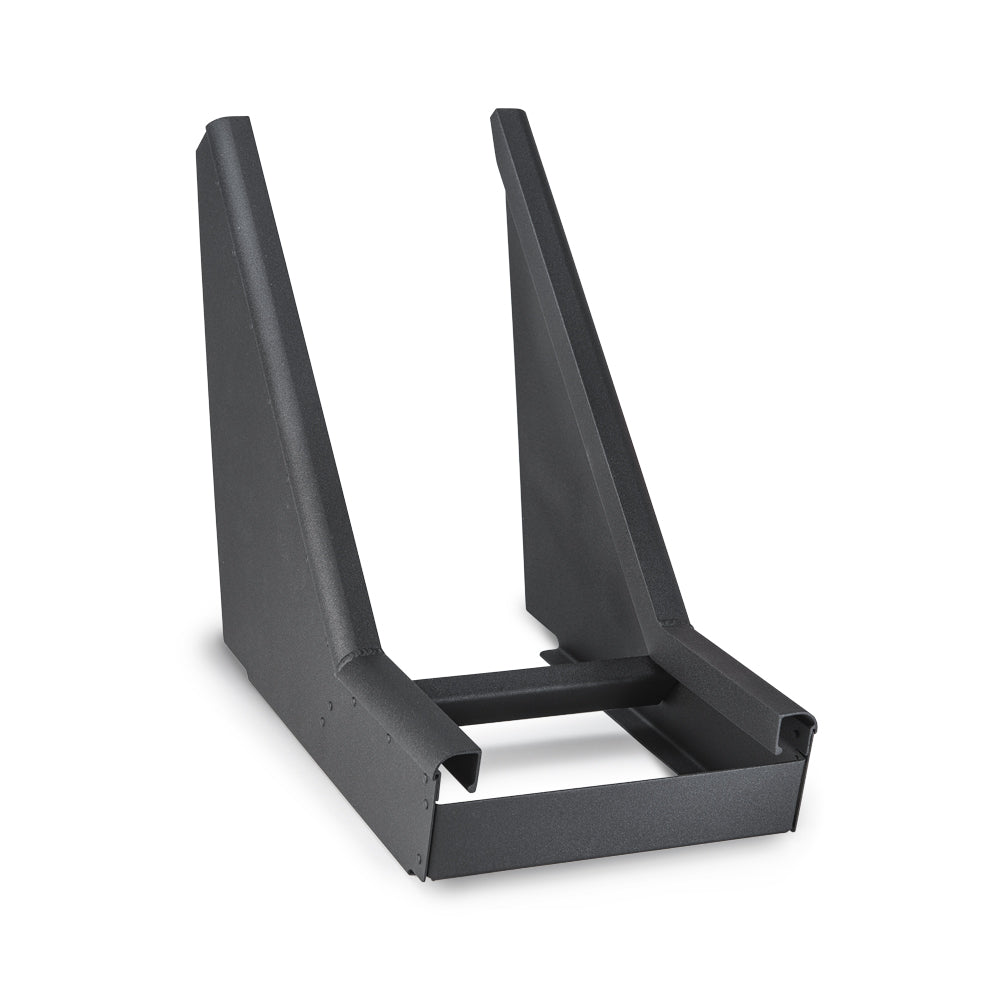

Low Slope Avionics Console

Part Number: D206-549-011
Aircraft Models: Bell - 206A/B;Bell - 206L

Price:
The Avionics Console mounts onto the instrument panel pedestal to allow installation of additional avionics units. *Comes pre-assembled, mounts onto the instrument panel pedestal, allows installation of additional avionics units. Low slope console provides approximately equal space vertically and horizontally for avionics installation. Radio depth cannot exceed 14.5" measured from the face plate when installing on the lower portion of the console. Max static load of 60 lbs or 3 lbs per inch of face plate length.

Description

The Avionics Console mounts onto the instrument panel pedestal to allow installation of additional avionics units. *Comes pre-assembled, mounts onto the instrument panel pedestal, allows installation of additional avionics units. Low slope console provides approximately equal space vertically and horizontally for avionics installation. Radio depth cannot exceed 14.5" measured from the face plate when installing on the lower portion of the console. Max static load of 60 lbs or 3 lbs per inch of face plate length.

Key Features

  • Modern look
  • Easy installation
  • More space
  • Better visibility

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-485/2018 206A/206B/206L/206L1/206L3/206L4/407 Shroud Module
STC EASA - Europe RC 1180 206A/206B/206L/206L1/206L3/206L4/407 Avionic Console
STC TCCA - Canada SH89-28 206A/B/206L/206L1/206L3/206L4/407 Shroud Module
STC FAA - USA SR00551NY 206A/206B/206L/206L1/206L3/206L4/407 Shroud Module

OEM Cross References

N/A

External Warning

Low Slope console provides approximately equal space vertically and horizontally for avionics installation.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Radios over 4" long

Flight Restrictions

N/A

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.00 lbs / 0.91 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
