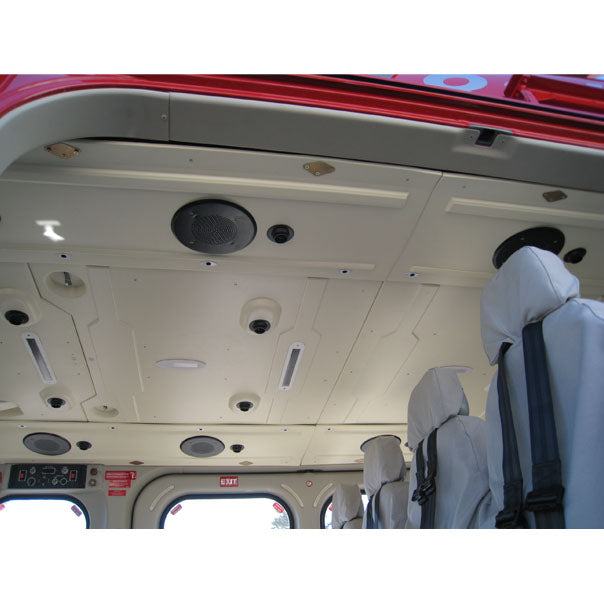

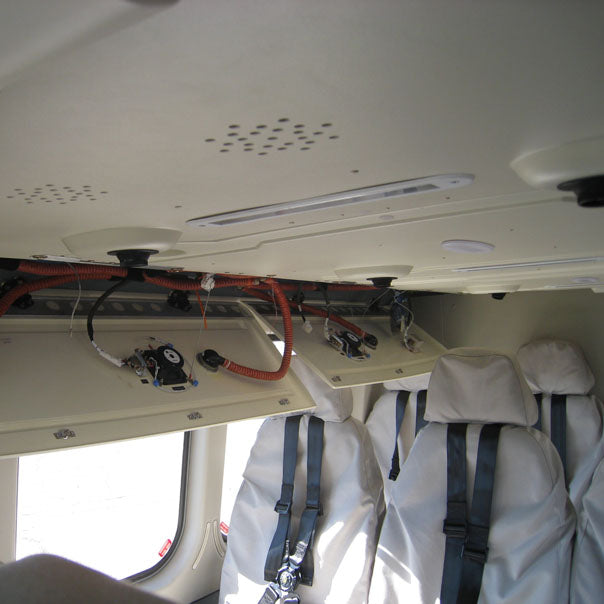

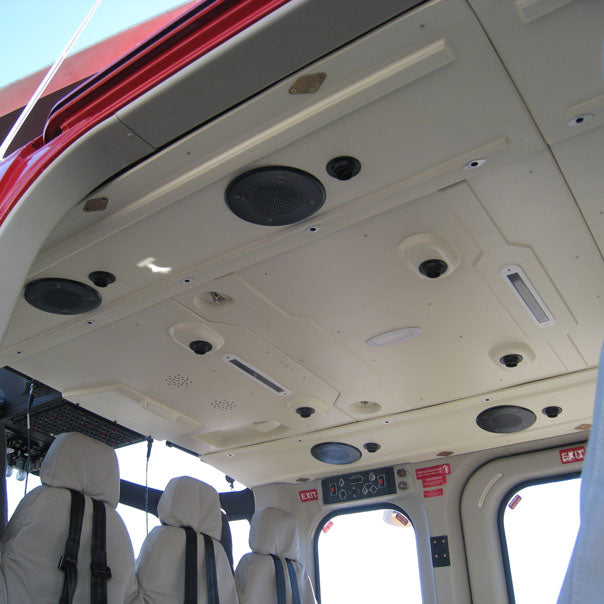

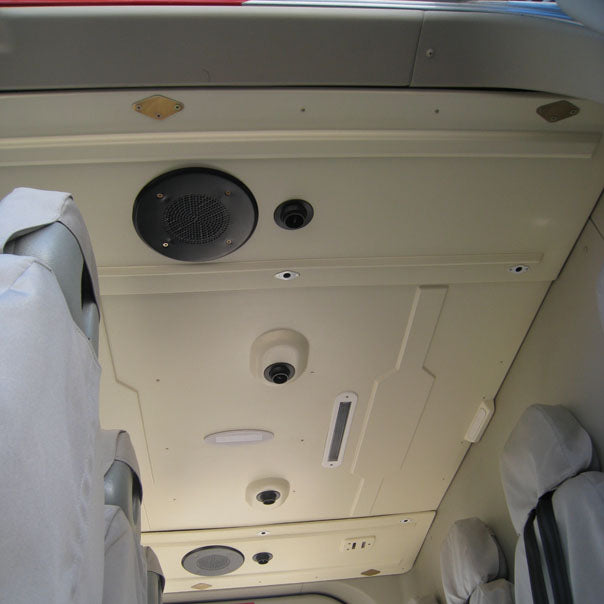

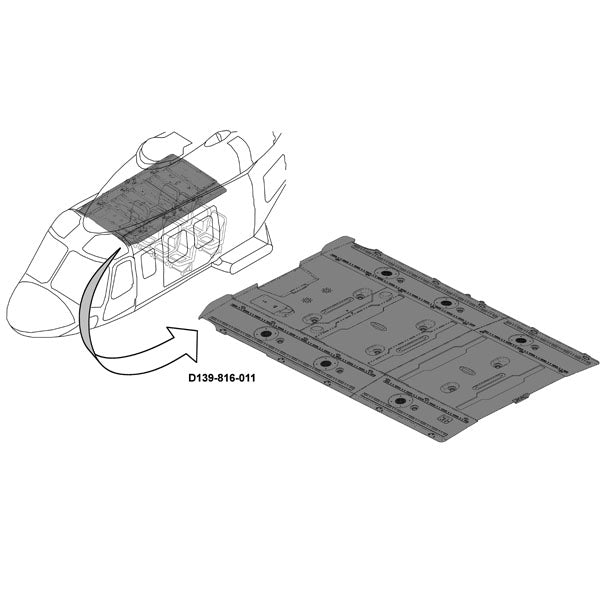

The new Lightweight Ceiling Panels replace the existing OEM interior ceiling panels with quality, engineered aerospace grade design and material. The DART panels are 40 lbs lighter than conventional OEM panels, translating into extra payload (passengers, cargo, and/or fuel). Furthermore, our design splits the center portion into 3 individually removable panels for improved access for maintenance. The side panels are hinged to drop down for easy maintenance. The streamlined construction provides more headroom while also improving ventilation and distribution for center passengers.
*Includes 3 center panels, 2 side panels. Includes speakers, LED lighting, air conditioning tubing, and anodized aluminum air vents. Does not include temperature sensor p/n 362150V01251 or emergency lights p/n 2LA455115-26. Does not include airframe mounted hinges. Price is per aircraft.
Couldn't load pickup availability
Key Features
Modern, low power LED lights that reduce current draw by at least 3A
Reduced maintenance costs with easier access for maintenance on first-generation interior
No change to cabin noise levels (tested)
Improved quality of audio system
More headroom for outboard passengers
No change to cabin emergency lights
Pre-cut for temperature sensor and emergency lights installation
Manufactured from lightweight gray Lexan
Anodized aluminum air vents included
Key Benefits
40 lbs (18.1 kg) weight reduction over conventional OEM system
Increased comfort level with better air flow & distribution
Easier access for maintenance with 3 removable panels
Approvals
Approval type
Authority
Reference number
Aircraft approved
Description
STC
EASA - Europe
10045158, Rev. 1
AW139
Interior Panel Installation
STC
ANAC - Brazil
2013S09-02
AB139/AW139
Interior Panel Installation
STC
TCCA - Canada
SH12-54
AB139/AW139
Interior Panel Installation
STC
FAA - USA
SR03251NY
AB139/AW139
Interior Panel Installation
OEM Cross References
N/A
External Warning
Does not include airframe mounted hinges. Does not include temperature sensor (P/N 362150V01251) or emergency lights (2LA455115-26). Kit contains parts with limited shelf life.
Prerequisite
N/A
Compatible With
N/A
Not Compatible With
N/A
Flight Restrictions
N/A
Installation Time
40 hrs
Dimensions And Weight
Length: N/A
Width: N/A
Weight Display: 40.00 lbs (18.10 kg) net weight decrease
