Left Hand Pilot in Command - Medium/Standard Design, Mechanical 212/412

Mission Equipment
Part Number: D212-803-217
Aircraft Models: Bell - 212

Price:
Login to see prices and leadtimes
The DART Aerospace Left Hand Pilot in Command allow operators to bring the left hand pilot position to the same operational level as the right hand pilot position. This will allow the aircraft to be operated with the Pilot in Command seated in either position with the installation of redundant instrumentation, flight controls, control mounted switches and emergency cargo release. The DART Aerospace Left Hand Pilot in Command modification allows for left hand pilot ope... Read more
The DART Aerospace Left Hand Pilot in Command allow operators to bring the left hand pilot position to the same operational level as the right hand pilot position. This will allow the aircraft to be operated with the Pilot in Command seated in either position with the installation of redundant instrumentation, flight controls, control mounted switches and emergency cargo release. The DART Aerospace Left Hand Pilot in Command modification allows for left hand pilot operations with or without passengers. In addition to the complete kit including replacement collective head and switches, DART Aerospace also offers a mechanical kit without switches for customers who have already procured the required hardware. Additionally, the modification can be completed by most approved AMOs. *Includes replacement collective head and mechanical hardware only. Requires prior installation of Bell Dual Control kit, Bell Co-pilot Instrument kit, and the DART Emergency Cargo Release kit p/n D412-704-011 or similar approved emergency cargo release kit. 1 kit modifies 1 aircraft. Read less

Description

The DART Aerospace Left Hand Pilot in Command allow operators to bring the left hand pilot position to the same operational level as the right hand pilot position. This will allow the aircraft to be operated with the Pilot in Command seated in either position with the installation of redundant instrumentation, flight controls, control mounted switches and emergency cargo release. The DART Aerospace Left Hand Pilot in Command modification allows for left hand pilot operations with or without passengers. In addition to the complete kit including replacement collective head and switches, DART Aerospace also offers a mechanical kit without switches for customers who have already procured the required hardware. Additionally, the modification can be completed by most approved AMOs. *Includes replacement collective head and mechanical hardware only. Requires prior installation of Bell Dual Control kit, Bell Co-pilot Instrument kit, and the DART Emergency Cargo Release kit p/n D412-704-011 or similar approved emergency cargo release kit. 1 kit modifies 1 aircraft.

Key Features

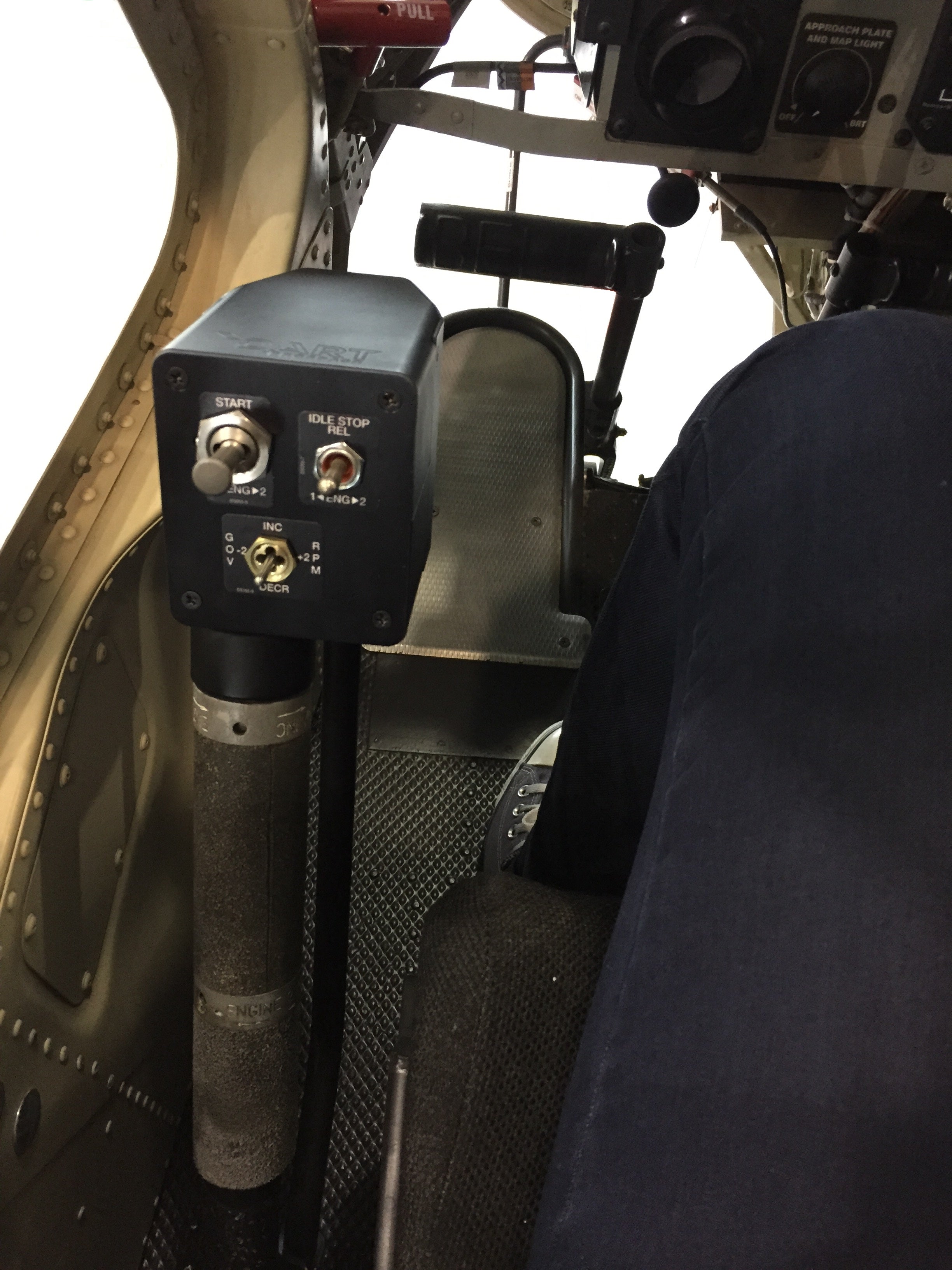

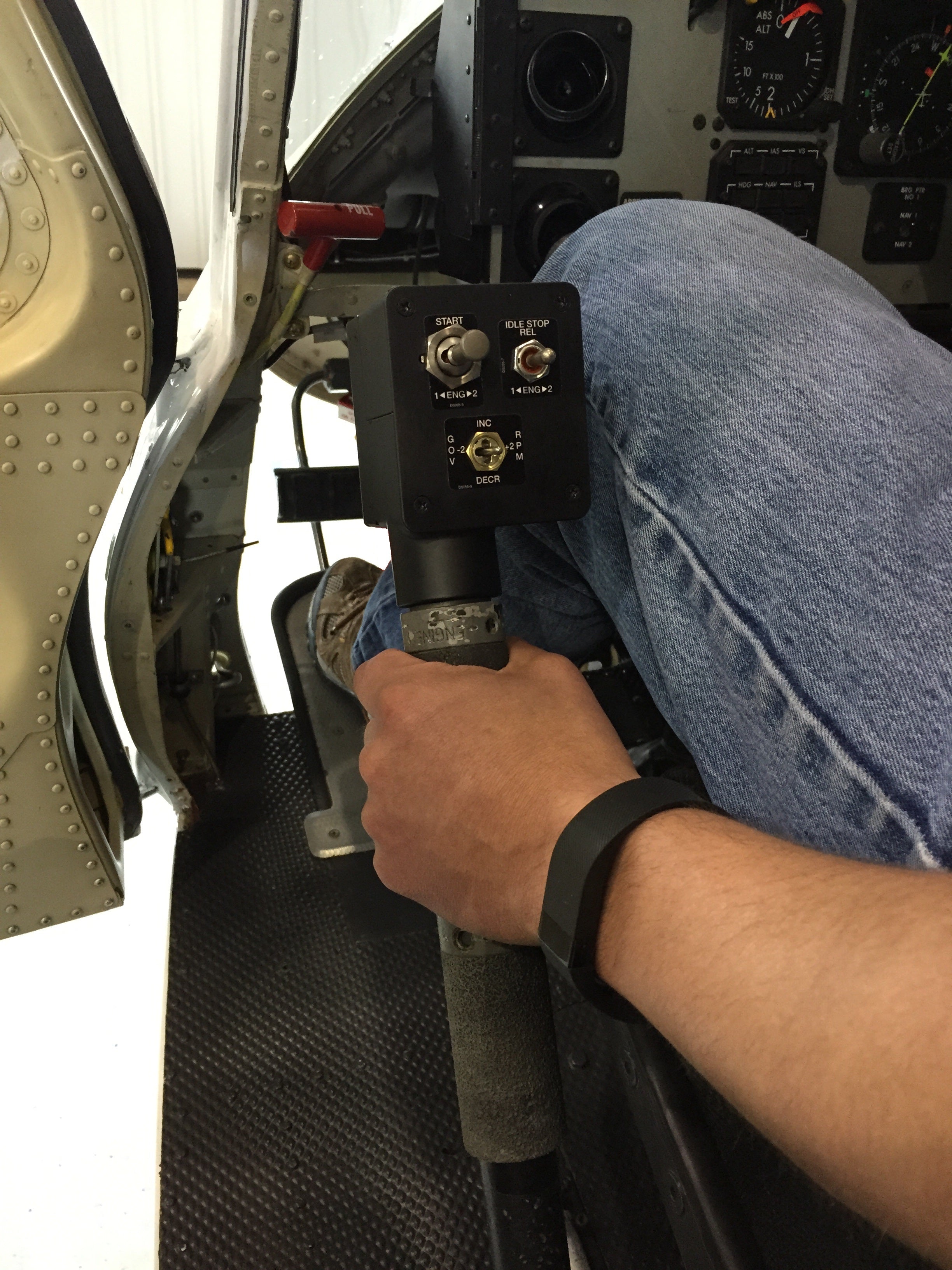

  • Includes new, larger collective head with option to add additional switches
  • Available with switches & wiring or without (for operators who have already acquired the required equipment)

Key Benefits

  • Safety improvement
  • Increased operational efficiency: saves up to 1 hour per mission
  • Cost-effective: the only modification available that can be completed by most AMO's
  • Allows for left hand pilot operations without passenger restrictions

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH16-34 205A/205A1/205B/212/412/412EP LH Pilot in Command Kits Installations
STC EASA - Europe 10048356, Rev. 1 205A1/212/412/412EP Left Hand Pilot in Command
STC FAA - USA SR02233SE 205A/205A1/205B/212/412/412EP Left Hand Pilot in Command

OEM Cross References

N/A

External Warning

Customer must modify standard OEM LH Crew Door if not modified with a bubble window when installing a DART LH PIC Kit to ensure there are no interference with the control stick.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 1.5 lbs / 0.68 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
