LED Pulse Light Kit

Mission Equipment
Part Number: D212-580-043
Aircraft Models: Bell - 204

Price:

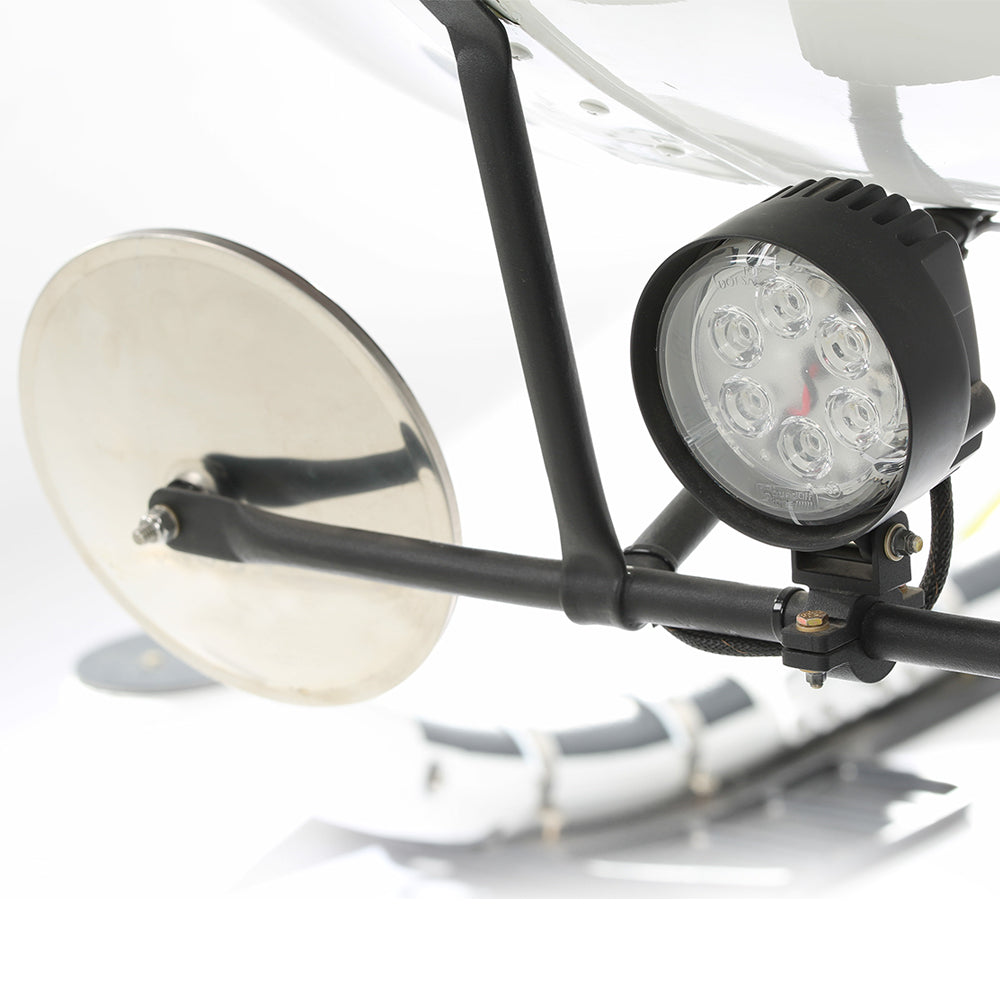

DART Aerospace's LED Pulse Lights install easily on any DART Dual Cargo Mirror and provide excellent forward conspicuity for all Medium Bell aircraft. DART Aerospace's LED Pulse Lights are brighter than conventional incandescent bulbs and provide superior forward recognition in limited visibility conditions or high traffic areas. LED lights are more durable and consume less power than incandescent. The pulse unit mounts easily in the avionics bay and the lights are co... Read more

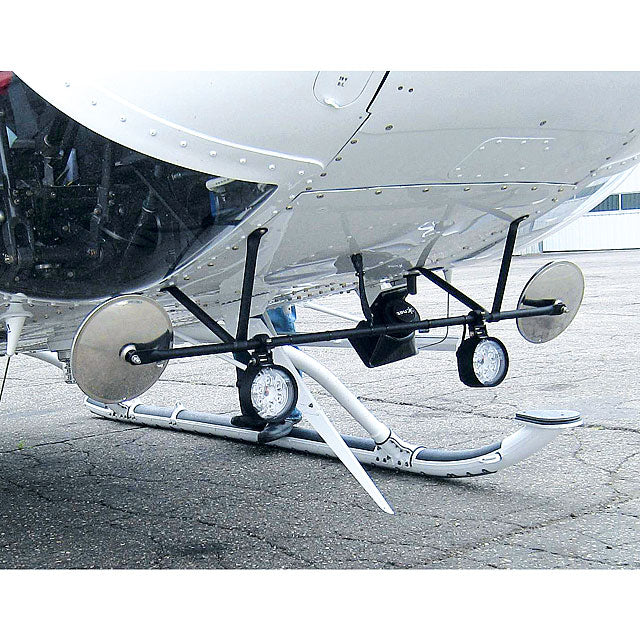

DART Aerospace's LED Pulse Lights install easily on any DART Dual Cargo Mirror and provide excellent forward conspicuity for all Medium Bell aircraft. DART Aerospace's LED Pulse Lights are brighter than conventional incandescent bulbs and provide superior forward recognition in limited visibility conditions or high traffic areas. LED lights are more durable and consume less power than incandescent. The pulse unit mounts easily in the avionics bay and the lights are controlled by an overhead circuit breaker panel switch. The 204/205/212/214/412 dual mirrors are fixed onto a bracket installed along the rivet lines on the nose of the aircraft, and provide better viewing of the cargo hook for pickup and release from both pilot and co-pilot positions. DART Aerospace's LED Pulse Lights install easily on any DART Dual Cargo Mirror and provide excellent forward conspicuity for all Medium Bell aircraft. *Installs on DART Dual Cargo Mirror D204-562-041, D205-563-041, D212-580-041. Includes 2 LED lights, pulse unit & switch. Pulse lights are compatible on any DART Mirror. Wiring harness not included. 1 kit completes 1 aircraft. Read less

Description

DART Aerospace's LED Pulse Lights install easily on any DART Dual Cargo Mirror and provide excellent forward conspicuity for all Medium Bell aircraft. DART Aerospace's LED Pulse Lights are brighter than conventional incandescent bulbs and provide superior forward recognition in limited visibility conditions or high traffic areas. LED lights are more durable and consume less power than incandescent. The pulse unit mounts easily in the avionics bay and the lights are controlled by an overhead circuit breaker panel switch. The 204/205/212/214/412 dual mirrors are fixed onto a bracket installed along the rivet lines on the nose of the aircraft, and provide better viewing of the cargo hook for pickup and release from both pilot and co-pilot positions. DART Aerospace's LED Pulse Lights install easily on any DART Dual Cargo Mirror and provide excellent forward conspicuity for all Medium Bell aircraft. *Installs on DART Dual Cargo Mirror D204-562-041, D205-563-041, D212-580-041. Includes 2 LED lights, pulse unit & switch. Pulse lights are compatible on any DART Mirror. Wiring harness not included. 1 kit completes 1 aircraft.

Key Features

  • D212-580 mirror has multiple installation locations for improved viewing

Key Benefits

  • Adjustable mirrors LED Pulse Lights:
  • Brighter LED Light (1,000 lumens)
  • Longer life (30,000+ hrs)
  • Less power consumption (2 amps)
  • Compatible with all DART Mirrors
  • Superior forward conspicuity

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-624/2019 204B/205A1/205B/212/214B/214B1/412/412CF/412EP Instalación de espejo de carga y luz de pulso
STC EASA - Europe 10017077, Rev. 2 204B/205A1/212/214B/214B1/412/412EP Cargo Mirror and Pulse Light Installation
STC ANAC - Brazil 2009S11-09 204B/205A1/212/214B/214B1/412 Cargo Mirror and Pulse Light Installation
STC TCCA - Canada SH92-16 204B/205A1/212/214B/214B1/412/412CF/412EP Cargo Mirror and Pulse Light Installation
STC FAA - USA SH975NE 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP Cargo Mirror and Pulse Light Installation
STC CAAC - China VSTC0682 412EP Cargo Mirror and Pulse Light Installation

OEM Cross References

OEM Replacement / AAL-706-103-002
OEM Replacement / AAL-706-103-003

External Warning

Wiring Harness not included.

Prerequisite

N/A

Compatible With

Any DART Mirror

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

8 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 4.30 lbs / 1.95 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
