Large Vertical Reference Floor Window Kit - Sliding Door Compatible

Mission Equipment
Part Number: D350-567-025
Aircraft Models: Airbus - AS350

Price:
DART Vertical Reference Floor Window Kits are available in three sizes to meet a variety of operational needs. You may now easily see through the floor window for vertical reference flying. Since the wider windows allow you to view further up the line, you can choose a shorter line, increasing your operational options. The huge outside windows are installed in the AFT panel using 1/4" fasteners that may be readily disassembled for maintenance. The Vertical Refer... Read more

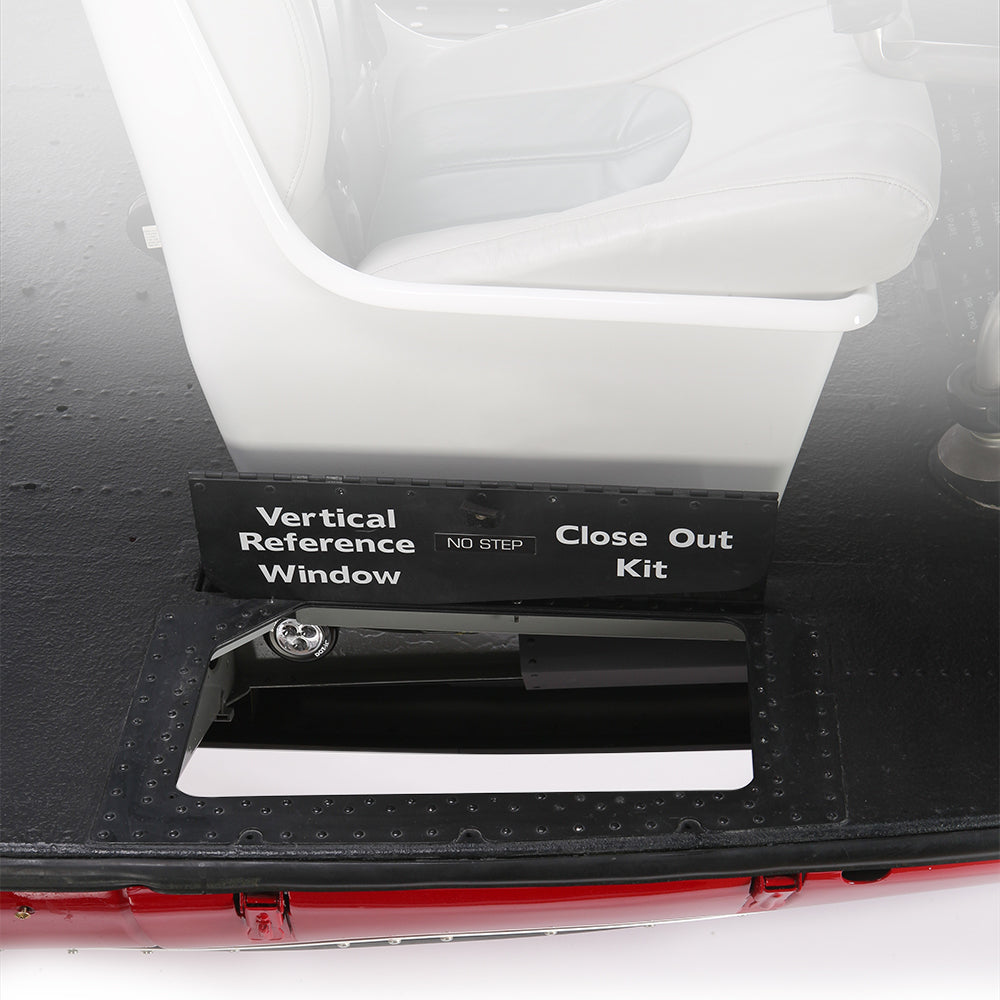

DART Vertical Reference Floor Window Kits are available in three sizes to meet a variety of operational needs. You may now easily see through the floor window for vertical reference flying. Since the wider windows allow you to view further up the line, you can choose a shorter line, increasing your operational options. The huge outside windows are installed in the AFT panel using 1/4" fasteners that may be readily disassembled for maintenance. The Vertical Reference Floor Window Kit is now available in two options: Install the Interior Window or Install the New Close Out Kit. The DART Close Out Kit includes aluminium panels that act as a barrier between the floor & the belly panel, preventing dirt & other FOD (Foreign Object Damage) from entering the region.

This Kit includes Part Number: D350-567-023, Description: Large Exterior Window Kit + Part Number: D350-567-031, Description: Small Interior Floor Window kit. Read less

Description

DART Vertical Reference Floor Window Kits are available in three sizes to meet a variety of operational needs. You may now easily see through the floor window for vertical reference flying. Since the wider windows allow you to view further up the line, you can choose a shorter line, increasing your operational options. The huge outside windows are installed in the AFT panel using 1/4" fasteners that may be readily disassembled for maintenance. The Vertical Reference Floor Window Kit is now available in two options: Install the Interior Window or Install the New Close Out Kit. The DART Close Out Kit includes aluminium panels that act as a barrier between the floor & the belly panel, preventing dirt & other FOD (Foreign Object Damage) from entering the region.

This Kit includes Part Number: D350-567-023, Description: Large Exterior Window Kit + Part Number: D350-567-031, Description: Small Interior Floor Window kit.

Key Features

  • AFT panel 1/4" turn fasteners enable for easy window removal for servicing / Maintenance.
  • There is also a Close-Out Retrofit Kit available (See Prerequisites).
  • There are no Vne (Never Exceed Speed) restrictions.

Key Benefits

  • Compatible with Standard Close-Out Kit i.e. Part Number: D350-567-141, Description: Floor Window Close Out (Regular Seats) as well.
  • Large windows result in a better viewing envelope and allow the pilot to see more of the line.
  • Multiple window sizes allow for optimal adaptability.
  • Three External Window Sizes.
  • Two Internal Window Sizes.

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DCA - Malaysia VSTC/2018/011 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F1/AS355F2/AS355N/AS355NP Installation of vertical reference floor window
STC DGAC – Ecuador ACTS-20-006 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Installation of Vertical Reference (floor) Window
STC ANAC - Brazil 2009S05-16 AS350B Vertical Reference Floor Window Kit
STC ANAC - Brazil 2009S05-17 AS350B1/AS350B2/AS350B3/AS350BA Vertical Reference Floor Window Kit
STC ANAC - Brazil 2009S05-18 AS355F/AS355F1/AS355F2/AS355N Vertical Reference Floor Window Kit
STC EASA - Europe EASA.IM.R.S.01560 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Vertical Reference Floor Window Kit
STC EASA - Europe EASA.IM.R.S.01561 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC CASA - Australia F95/1538 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS350F/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC DGCA - Mexico IA-164/2012 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC TCCA - Canada SH92-18 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC FAA - USA SH989NE AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Vertical Reference Floor Window Kit
STC FAA - USA SH990NE AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit

OEM Cross References

OEM Replacement / 40905
OEM Replacement / 40906
OEM Replacement / 40907
OEM Replacement / 40908
OEM Replacement / 201154
OEM Replacement / 40901
OEM Replacement / 40902
OEM Replacement / 40904

External Warning

N/A

Prerequisite

N/A

Compatible With

Energy Attenuating Seat; Sliding Door (requires relocation of landing light).

Not Compatible With

All close out kits are not compatible with AS355.

Flight Restrictions

None

Installation Time

40-70 hrs (depending on the aircraft configuration and model and kit option selected)

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 4.90 lbs / 2.22 kg net weight increase

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
