Large Vertical Reference Floor Window Kit

Mission Equipment
Part Number: D350-567-027
Aircraft Models: Airbus - AS350

Price:
Login to see prices and leadtimes
Our Vertical Reference Floor Window Kits are available in 3 sizes to fit different operational requirements. You can now look through the floor window with ease for vertical reference flying. The larger windows let you see further up the line, so you can choose a shorter line, thus enhancing your operating versatility. The large exterior windows install in the Aft panel with quarter turn fasteners allowing the window to be easily detached for maintenance purposes. The... Read more

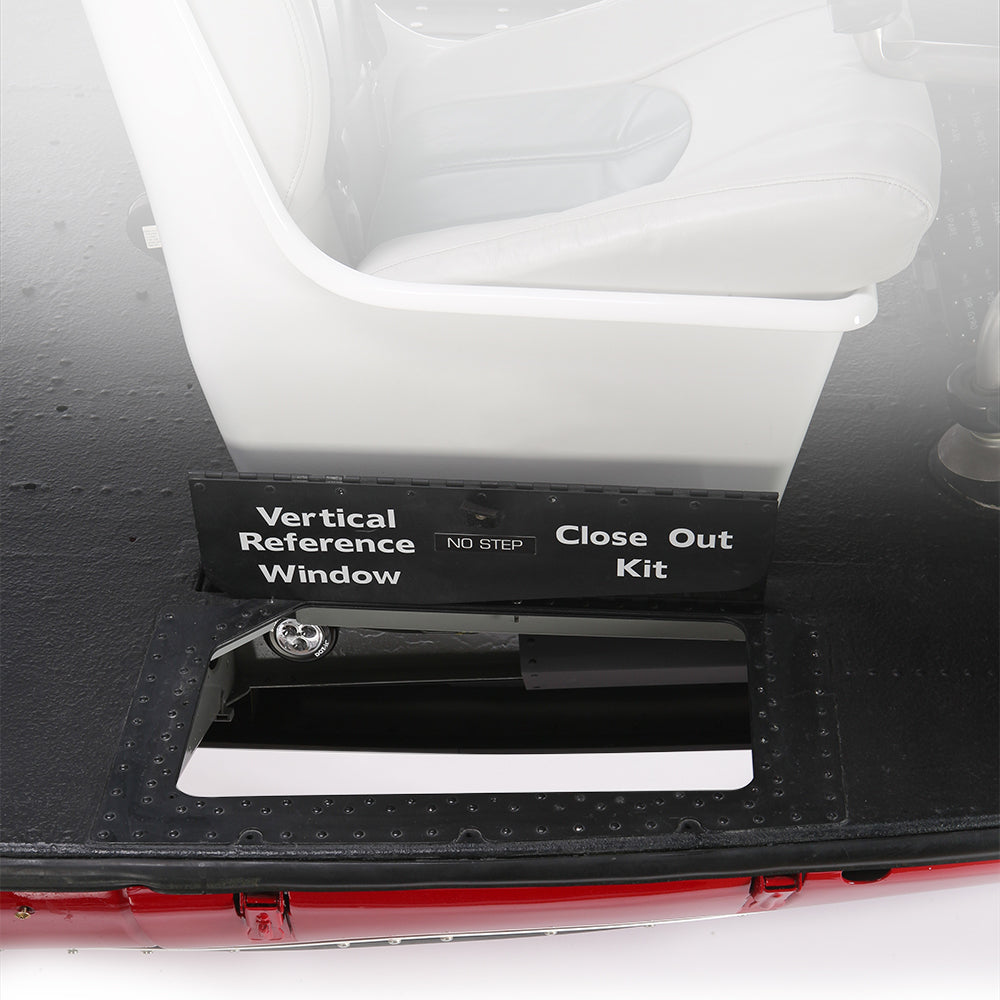

Our Vertical Reference Floor Window Kits are available in 3 sizes to fit different operational requirements. You can now look through the floor window with ease for vertical reference flying. The larger windows let you see further up the line, so you can choose a shorter line, thus enhancing your operating versatility. The large exterior windows install in the Aft panel with quarter turn fasteners allowing the window to be easily detached for maintenance purposes. The Vertical Reference Floor Window Kit now offers another configuration choice: Install the interior window or install the new Close Out Kit. DART Aerospace's Close Out Kit features aluminum panels that provide a barrier between floor and belly panel to prevent debris or foreign objects from entering the area. With the Close Out Kit installed the interior window may be removed for improved viewing of the line. The D350-567-141 Close Out Kit is an optional kit to be quoted separately. However, the D350-567-141 is not compatible with energy attenuating seat or on AS355 model.

*Kit includes D350-567-115 large interior window, D350-567-023 large exterior window and optional D350-567-141(Not compatible with energy attenuating seats and or AS355 model) Close Out Kit. Compatible with energy attenuating seat and landing light. Read less

Description

Our Vertical Reference Floor Window Kits are available in 3 sizes to fit different operational requirements. You can now look through the floor window with ease for vertical reference flying. The larger windows let you see further up the line, so you can choose a shorter line, thus enhancing your operating versatility. The large exterior windows install in the Aft panel with quarter turn fasteners allowing the window to be easily detached for maintenance purposes. The Vertical Reference Floor Window Kit now offers another configuration choice: Install the interior window or install the new Close Out Kit. DART Aerospace's Close Out Kit features aluminum panels that provide a barrier between floor and belly panel to prevent debris or foreign objects from entering the area. With the Close Out Kit installed the interior window may be removed for improved viewing of the line. The D350-567-141 Close Out Kit is an optional kit to be quoted separately. However, the D350-567-141 is not compatible with energy attenuating seat or on AS355 model.

*Kit includes D350-567-115 large interior window, D350-567-023 large exterior window and optional D350-567-141(Not compatible with energy attenuating seats and or AS355 model) Close Out Kit. Compatible with energy attenuating seat and landing light.

Key Features

  • 1/4 turn fasteners in Aft panel allow window to be easily detached for maintenance
  • Close Out Retrofit Kit also available.
  • Close Out Kit (D350-567-141) NOT compatible with aircraft equipped with energy attenuating seats.
  • No VNE restriction

Key Benefits

  • Compatible with Close Out Kit (D350-567-141)
  • Large windows result in an improved viewing envelope and allow more of the line to be viewed by the pilot
  • Multiple window sizes allow for maximum versatility
  • 2 sizes of interior windows
  • 3 sizes of exterior windows

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DCA - Malaysia VSTC/2018/011 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F1/AS355F2/AS355N/AS355NP Installation of vertical reference floor window
STC DGAC – Ecuador ACTS-20-006 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Installation of Vertical Reference (floor) Window
STC ANAC - Brazil 2009S05-16 AS350B Vertical Reference Floor Window Kit
STC ANAC - Brazil 2009S05-17 AS350B1/AS350B2/AS350B3/AS350BA Vertical Reference Floor Window Kit
STC ANAC - Brazil 2009S05-18 AS355F/AS355F1/AS355F2/AS355N Vertical Reference Floor Window Kit
STC EASA - Europe EASA.IM.R.S.01560 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Vertical Reference Floor Window Kit
STC EASA - Europe EASA.IM.R.S.01561 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC CASA - Australia F95/1538 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS350F/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC DGCA - Mexico IA-164/2012 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC TCCA - Canada SH92-18 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit
STC FAA - USA SH989NE AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Vertical Reference Floor Window Kit
STC FAA - USA SH990NE AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Vertical Reference Floor Window Kit

OEM Cross References

OEM Replacement / 40905
OEM Replacement / 40906
OEM Replacement / 40907
OEM Replacement / 40908
OEM Replacement / 201154
OEM Replacement / 40901
OEM Replacement / 40902
OEM Replacement / 40904

External Warning

N/A

Prerequisite

N/A

Compatible With

Energy Attenuating Seat (requires relocation of landing light)

Not Compatible With

Sliding Doors; Close out kits are not compatible with AS355.

Flight Restrictions

None

Installation Time

40-70 hrs (depending on the aircraft configuration and model and kit option selected)

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 4.90 lbs / 2.22 kg net weight increase

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
