Hinge Panel Door Push-out Window Full Kit, Clear - Fits LH or RH

Part Number: D412-709-015
Aircraft Models: Bell - 205
Price:

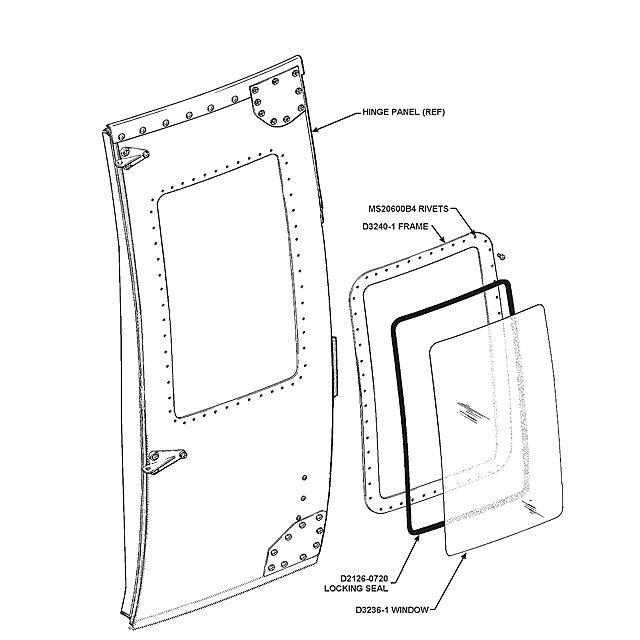

DART Escape Panel Modification and Window Push-out Kits enhance passenger safety. *Kit consists of replacement window, locking seal & frame to replace Bell 205-030-285-001 / 002 (Fits LH or RH) riveted windows. 2 kits complete 1 aircraft. Price is per window.

Description

DART Escape Panel Modification and Window Push-out Kits enhance passenger safety. *Kit consists of replacement window, locking seal & frame to replace Bell 205-030-285-001 / 002 (Fits LH or RH) riveted windows. 2 kits complete 1 aircraft. Price is per window.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01021 205A/205A1/205B/212/214B/214B1/412/412CF/412EP Replacement Window Kit
STC TCCA - Canada SH04-31 205A/205A1/205B/212/214B/214B1/412/412CF/412EP Replacement Window Kit
STC FAA - USA SR02058NY 205A/205A1/205B/212/214B/214B1/412/412CF/412EP/AB412/AB412EP Replacement Window Kit

OEM Cross References

OEM Replacement / 205-030-285-002
OEM Replacement / 205-030-285-001

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

6 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.50 lb / 0.22 kg net weight increase

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
