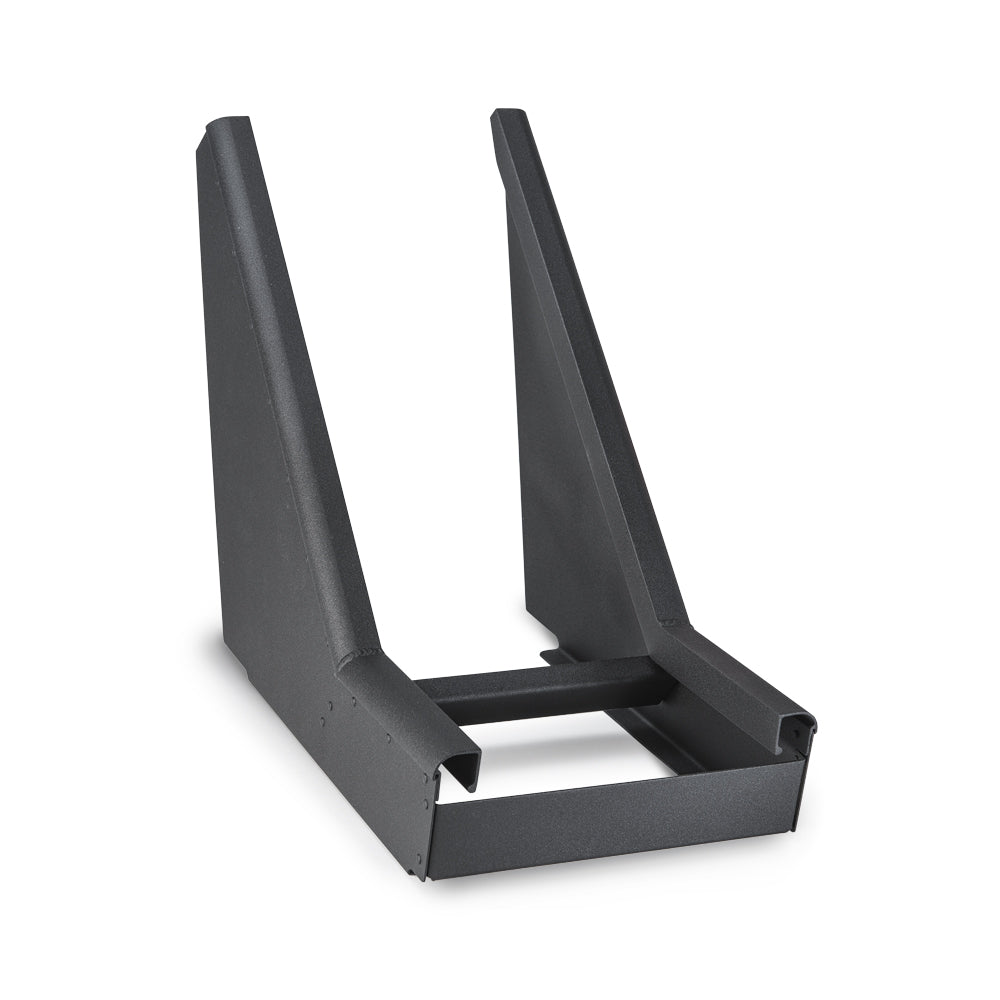

High Slope Avionics Console

Mission Equipment
Part Number: D407-549-017
Aircraft Models: Bell - 407

Price:
The Avionics Console mounts onto the instrument panel pedestal to allow installation of additional avionics units. *Comes pre-assembled, mounts onto the instrument panel pedestal, allows installation of additional avionics units. High slope console provides more vertical than horizontal space for avionics installation. Radio depth cannot exceed 14.5" measured from the face place when installing on the lower portion of the console. Max static load of 60 lbs or 3 lbs per inch of faceplate length.

Description

The Avionics Console mounts onto the instrument panel pedestal to allow installation of additional avionics units. *Comes pre-assembled, mounts onto the instrument panel pedestal, allows installation of additional avionics units. High slope console provides more vertical than horizontal space for avionics installation. Radio depth cannot exceed 14.5" measured from the face place when installing on the lower portion of the console. Max static load of 60 lbs or 3 lbs per inch of faceplate length.

Key Features

  • Modern look
  • Easy Installation
  • More Space
  • Better visibility

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-485/2018 206A/206B/206L/206L1/206L3/206L4/407 Shroud Module
STC EASA - Europe RC 1180 206A/206B/206L/206L1/206L3/206L4/407 Avionic Console
STC TCCA - Canada SH89-28 206A/B/206L/206L1/206L3/206L4/407 Shroud Module
STC FAA - USA SR00551NY 206A/206B/206L/206L1/206L3/206L4/407 Shroud Module

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Lower portion of the console is not compatible with radios over 4ヤ long

Flight Restrictions

None

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 2.00 lbs / 0.91 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
