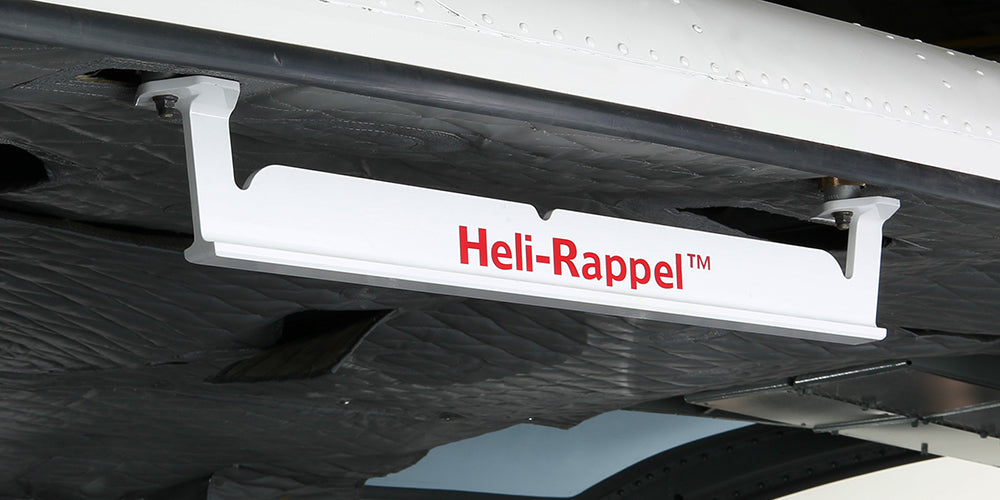

Heli-Rappel™ Kit 500 lbs, Fits LH or RH

Part Number: D205-523-013
Aircraft Models: Bell - 205

Price:
Installed in the roof structure of the cabin, the Heli-Rappel™ provides a secure and safe system for deploying personnel into the field from a hover position up to a maximum forward speed of 30 kias. The Heli-Rappel™ Kit can be used on either side of the aircraft and 2 kits can be used simultaneously. The Heli-Rappel™ Kit comes in both a 300 lbs capacity and 500 lbs capacity. *3 points. Rope, carabiners & descent equipment are customer supplied. Not compatible with D412-707-011 Emergency Escape ladder. DSI 9692-011 Placards is required for Chinese registered a/c only. Price is per side.

Description

Installed in the roof structure of the cabin, the Heli-Rappel™ provides a secure and safe system for deploying personnel into the field from a hover position up to a maximum forward speed of 30 kias. The Heli-Rappel™ Kit can be used on either side of the aircraft and 2 kits can be used simultaneously. The Heli-Rappel™ Kit comes in both a 300 lbs capacity and 500 lbs capacity. *3 points. Rope, carabiners & descent equipment are customer supplied. Not compatible with D412-707-011 Emergency Escape ladder. DSI 9692-011 Placards is required for Chinese registered a/c only. Price is per side.

Key Features

N/A

Key Benefits

  • D205-523-013 TC/FAA/ANAC approved for day/night VFR operations

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-134-HQT 412EP Heli-Rappel™ Installation
STC ANAC - Brazil 2010S10-07 205A1/212/214B/214B1/412/412EP Heli-Rappel™ Installation
STC EASA - Europe CS-099 205A1/205B/212/214B/214B1/412/412CF/412EP Heli-Rappel™ Installation
STC TCCA - Canada SH96-90 205A/205A1/205B/212/214B/214B1/412/412CF/412EP Heli-Rappel™ Installation
STC FAA - USA SR00511NY 205A/205A1/205B Heli-Rappel™ Installation
STC FAA - USA SR00512NY 212/412/412CF/412EP Heli-Rappel™ Installation
STC FAA - USA SR00513NY 214B/214B1 Heli-Rappel™ Installation
STC CAAC - China VSTC0683 412EP Installation of Heli-Rappel

OEM Cross References

N/A

External Warning

Bell 214ST is NOT approved for this product. Rope, carabiners & descent equipment are customer supplied.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Emergency Escape Ladder: D412-707-011

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 3.50 lbs / 1.59 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
