Heli Pump and Slimline

Heli Pump and Slimline

  • Out of stock STOCK STOCK Please contact sales for a lead time Please contact sales for a lead time

A complete fuel pump system in a tiny package

Product Description

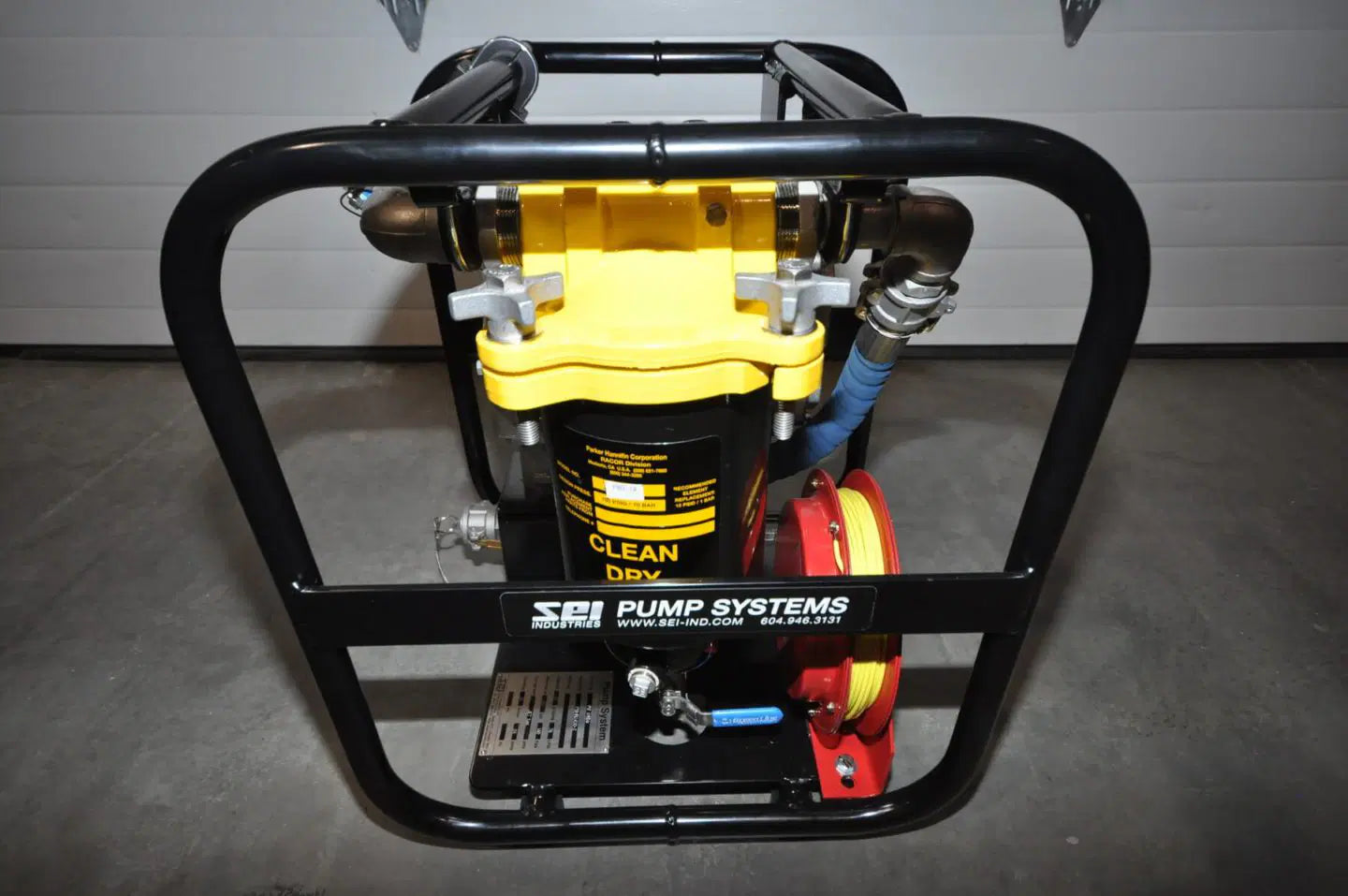

In use around the world by military special forces and helicopter operators, the Heli Pump is a complete turnkey electric aviation fuel pumping system in a tiny package. Designed for rapid deployment, the Heli-Pump quickly distributes fuel from almost any source and can be powered by the helicopter’s DC system. It offers two-stage filtration, making it ideal for remote site operations. When not in use, the Heli-Pump can be easily packed and stored inside the cargo area of most helicopters. Choose from a variety of models to suit your needs.

SLIMLINE HELI-PUMP

  • 15 USGPM (57 LPM) 24 VDC, 10 AMP electric pump
  • Filter/separator
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims without carrying case: 28.5” x 22” x 11”, 57 lbs (72.4 cm x 56 cm x 28 cm, 26 kg)
  • Total pump system dims with carrying case: 32” x 28” x 17”, 117 lbs (82 cm x 72 cm x 43 cm, 53 kg)

HR1210 HELI-PUMP

  • 11 USGPM (41 LPM) 12 VDC, 25 AMP electric pump
  • Filter/separator
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Mechanical totalizing flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims: 20” x 23” x 17.5” – 78 lbs (51 cm x 58 cm x 45 cm – 35 kg)

HR 2410 HELI-PUMP

  • 11 USGPM (41 LPM) 24 VDC, 10 AMP electric pump
  • Filter/separator
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Mechanical totalizing flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims: 20” x 23” x 17.5” – 78 lbs (51 cm x 58 cm x 45 cm – 35 kg)

HR2420 HELI-PUMP

  • 20 USGPM (75 LPM) 24 VDC, 30 AMP electric pump
  • Filter/separator
  • 12 ft. of 1” discharge hose with nozzle
  • 12 ft. of 1” suction hose with camlocks
  • Mechanical totalizing flow meter (GPM) or (LPM)
  • Camlock connection drum stub
  • 12 ft. grounding wire
  • 12 ft. of electric cable (connection to battery)
  • Water detection paste
  • Pump dims: 20” x 23” x 17.5” – 112 lbs (51 cm x 58 cm x 45 cm – 50 kg)



Key Features

  • Monitor, filter, an electric pump, plus intake and delivery hoses and a lightweight anti-drip nozzle.
  • Operates from a vehicle battery or from the helicopter’s own power supply.
  • Electric supply cable with clamps for connection to the power supply and in-line fuse.
  • Ground connection lug.
  • Powder-coated aluminumroll cage.

Key Benefits

N/A

Approvals

N/A

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
