Heli-Access-Step™ RH - High Gear, Short Step, Float Compatible


Part Number: D350-591-122

Aircraft Models: Airbus - AS350

  • A few left in stock!

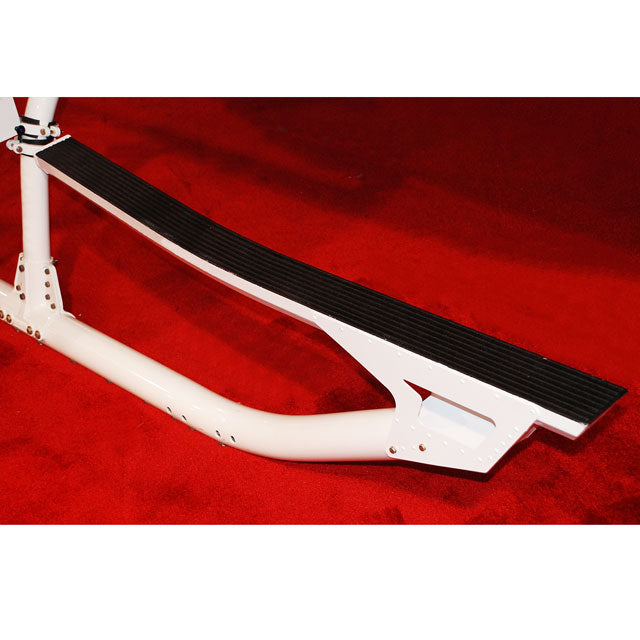

DART recognizes the industry need for lightweight steps that are strong and functional. This step mounts on the FWD end of the skidtube with a sheet metal enclosure and to the FWD crosstube using a reliable, lightweight support/clamping system. Painted white with a high-gloss, scratch resistant finish, our steps feature a non-skid surface. *Air Cruisers and Aerazur float compatible. Not compatible with DART (Apical) floats. DSI now available to improve the fit between the baskets and the high skid step. DSI 9670-011 lowers D350-591-121/-122 high skid steps to improve compatibility with D350-607-XXX baskets. Price is per side.

Key Features

  • Compatible with Air Cruisers & Aerazur floats
  • Non-skid surface

Key Benefits

  • Lightweight
  • Uses a reliable, lightweight support/clamping system for easy install

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-88-2-TYO AS355N Heli-Access-Step Installation
STC ANAC - Brazil 1999S02-01 AS350B1/AS350B2/AS350B3/AS350BA Heli-Access-Step™
STC ANAC - Brazil 1999S02-02 AS355F/AS355F1/AS355F2/AS355N Heli-Access-Step™
STC ANAC - Brazil 1999S02-03 AS350B Heli-Access-Step™
STC OEM 350 A 08 4127 AS350B2 Heli-Access-Step™
STC EASA - Europe DGAC 157-SI-0930, LBA RC 1148, UK 27937, UK 27938 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Heli-Access-Step™
STC TCCA - Canada SH92-6 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Heli-Access-Step™
STC FAA - USA SH967NE AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Heli-Access-Step™
STC JCAB - Japan STC-228-TYO AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2 Heli-Access-Step™
STC JCAB - Japan STC-88-1-TYO AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2 Heli-Access-Step™

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

Air Cruisers and Aerazur floats

Not Compatible With

DART Floats

Flight Restrictions

None

Installation Time

3 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 8.00 lbs / 3.63 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
