Heli-Access-Step™ - Low Gear, Fits LH or RH


Part Number: D205-633-017

Aircraft Models: Bell - 205

  • In stock

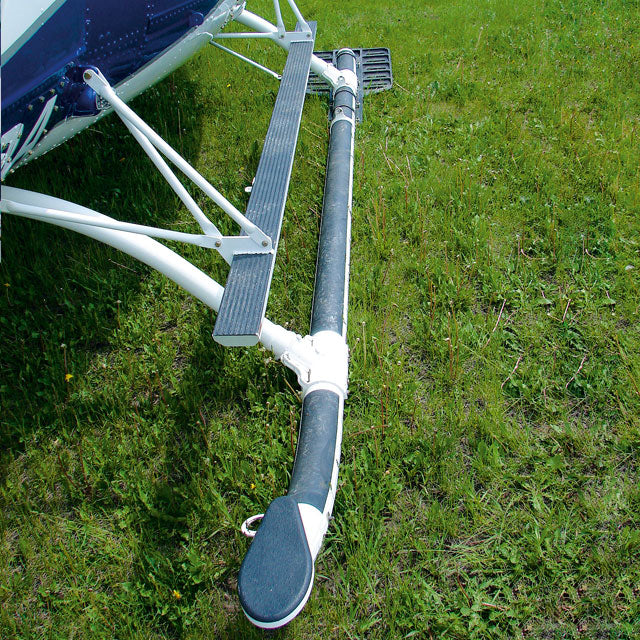

The DART Aerospace Heli-Access-Steps™ attach to existing fuselage hardpoints and assist with splitting the height difference between the aircraft floor and the ground. *Mounts to fuselage at STA 63 & STA 129. Step length 89.7". Price is per side.

Key Features

  • Attaches to existing fuselage hardpoints
  • Non-slip surface

Key Benefits

  • Splits height difference between the aircraft floor and the ground
  • Rated for 500 lbs personnel load in flight

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-133-HQT 412EP Heli-Access-Step™ D205-633
STC EASA - Europe LBA RC 1182 205A1/212/214B/214B1/412 Heli-Access Step™ D205-633
STC TCCA - Canada SH96-57 205A/205A1/205B/212/214B/214B1/412/412CF/412EP Heli-Access-Step™ D205-633
STC FAA - USA SR00592NY 214B/214B1 Heli-Access-Step™ D205-633
STC FAA - USA SR00593NY 205A/205A1/205B/210 Heli-Access-Step™ D205-633
STC FAA - USA SR00594NY 212/412/412CF/412EP/AB412/AB412EP Heli-Access-Step™ D205-633
STC CAAC - China VSTC0681 412EP Heli-Access-Step Installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Isolair Tank can't be installed on High Gear

Flight Restrictions

N/A

Installation Time

3 hrs

Dimensions And Weight

  • Length: 89.7" / 2.3m
  • Width: N/A
  • Weight Display: 13.70 lbs / 6.21 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
