Description

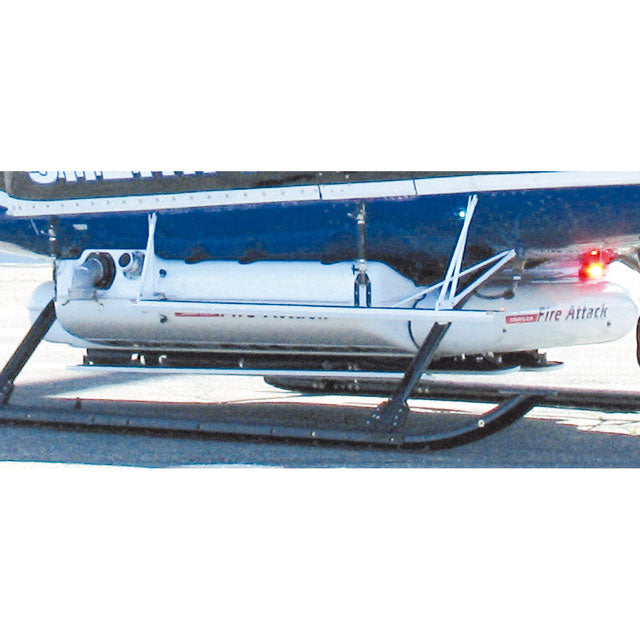

The DART Aerospace Heli-Access-Steps™ attach to existing fuselage hardpoints and assist with splitting the height difference between the aircraft floor and the ground.
*Mounts to fuselage at STA 63 & STA 129. Simplex Model 304 Fire Attack™ Tank Compatible. Step length 89.7". Price is per side.
Key Features
- Attaches to existing fuselage hardpoints
- Non-slip surface
Key Benefits
- Splits height difference between the aircraft floor and the ground
- Rated for 500 lbs personnel load in flight
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | JCAB - Japan | STC-133-HQT | 412EP | Heli-Access-Step™ D205-633 |
| STC | EASA - Europe | LBA RC 1182 | 205A1/212/214B/214B1/412 | Heli-Access Step™ D205-633 |
| STC | TCCA - Canada | SH96-57 | 205A/205A1/205B/212/214B/214B1/412/412CF/412EP | Heli-Access-Step™ D205-633 |
| STC | FAA - USA | SR00592NY | 214B/214B1 | Heli-Access-Step™ D205-633 |
| STC | FAA - USA | SR00593NY | 205A/205A1/205B/210 | Heli-Access-Step™ D205-633 |
| STC | FAA - USA | SR00594NY | 212/412/412CF/412EP/AB412/AB412EP | Heli-Access-Step™ D205-633 |
| STC | CAAC - China | VSTC0681 | 412EP | Heli-Access-Step Installation |
