Heli-Access-Step™ LH - High Gear, Long Step, Aerazur Float Compatible

Part Number: D350-591-311
Aircraft Models: Airbus - AS350

Price:

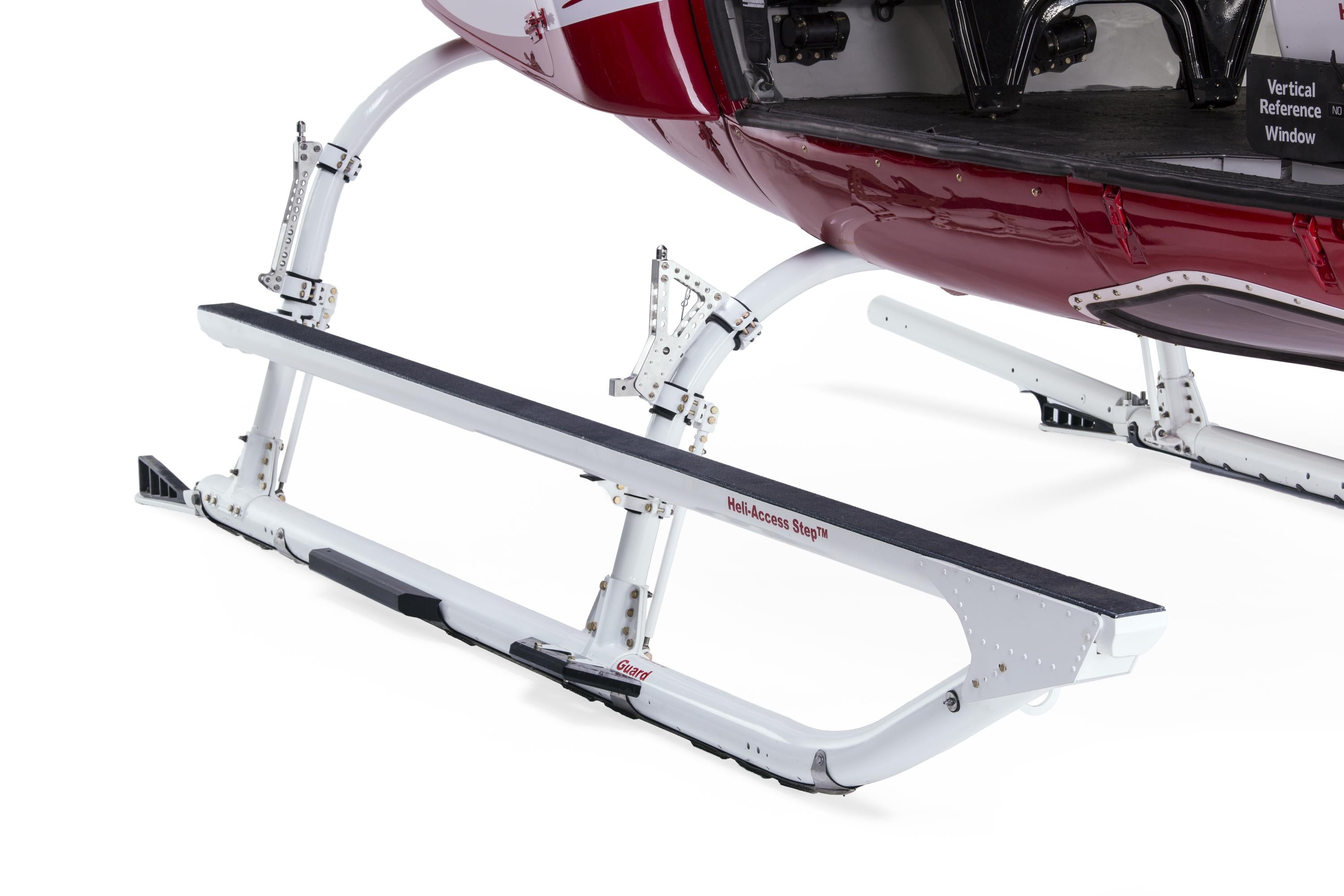

DART recognizes the industry need for lightweight steps that are strong and functional. This step mounts on the FWD end of the skidtube with a sheet metal enclosure and to the FWD & AFT crosstubes using a reliable, lightweight support/clamping system. Painted white with a high-gloss, scratch resistant finish, our steps feature a non-skid surface. *Not compatible with DART (Apical) floats. Requires D350-615-041 for use with OEM ground handling wheels. DSI now avai... Read more
DART recognizes the industry need for lightweight steps that are strong and functional. This step mounts on the FWD end of the skidtube with a sheet metal enclosure and to the FWD & AFT crosstubes using a reliable, lightweight support/clamping system. Painted white with a high-gloss, scratch resistant finish, our steps feature a non-skid surface. *Not compatible with DART (Apical) floats. Requires D350-615-041 for use with OEM ground handling wheels. DSI now available to improve the fit between the baskets and the high skid step. DSI 9670-013 lowers D350-591-213/-214/-311/-312 high skid steps to improve compatibility with D350-607-XXX baskets. Replaces D350-591-111A or D350-591-211. Price is per side. Read less

Description

DART recognizes the industry need for lightweight steps that are strong and functional. This step mounts on the FWD end of the skidtube with a sheet metal enclosure and to the FWD & AFT crosstubes using a reliable, lightweight support/clamping system. Painted white with a high-gloss, scratch resistant finish, our steps feature a non-skid surface. *Not compatible with DART (Apical) floats. Requires D350-615-041 for use with OEM ground handling wheels. DSI now available to improve the fit between the baskets and the high skid step. DSI 9670-013 lowers D350-591-213/-214/-311/-312 high skid steps to improve compatibility with D350-607-XXX baskets. Replaces D350-591-111A or D350-591-211. Price is per side.

Key Features

  • Compatible with Aerazur floats
  • Non-skid surface

Key Benefits

  • Lightweight
  • Uses a reliable, lightweight support/clamping system for easy install

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-88-2-TYO AS355N Heli-Access-Step Installation
STC ANAC - Brazil 1999S02-01 AS350B1/AS350B2/AS350B3/AS350BA Heli-Access-Step™
STC ANAC - Brazil 1999S02-02 AS355F/AS355F1/AS355F2/AS355N Heli-Access-Step™
STC ANAC - Brazil 1999S02-03 AS350B Heli-Access-Step™
STC OEM 350 A 08 4127 AS350B2 Heli-Access-Step™
STC EASA - Europe DGAC 157-SI-0930, LBA RC 1148, UK 27937, UK 27938 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Heli-Access-Step™
STC TCCA - Canada SH92-6 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Heli-Access-Step™
STC FAA - USA SH967NE AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N Heli-Access-Step™
STC JCAB - Japan STC-228-TYO AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2 Heli-Access-Step™
STC JCAB - Japan STC-88-1-TYO AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2 Heli-Access-Step™

OEM Cross References

N/A

External Warning

Replaces D350-591-111A or D350-591-211.

Prerequisite

N/A

Compatible With

Heli-Utility Basket: D350-607-041/D350-607-043

Not Compatible With

DART Floats

Flight Restrictions

None

Installation Time

3 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 12.00 lbs / 5.42 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
