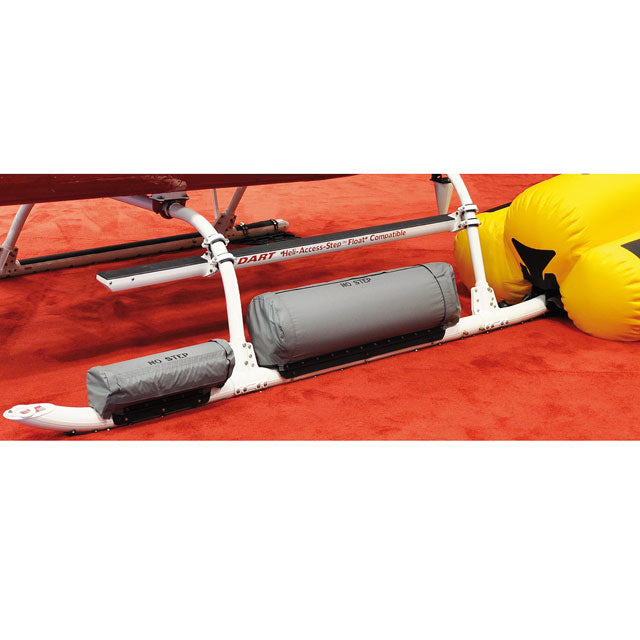

Heli-Access-Step™ LH - High Gear, Float Compatible 206A/B


Part Number: D206-628-013

Aircraft Models: Bell - 206A/B

  • A few left in stock!
DART recognizes the industry need for lightweight steps that are strong and functional. Our steps are torsionally stiffer than other steps on the market eliminating rolling or rotation of the steps. They install on the crosstubes with a unique duplex clamping system that self-locks when weight is applied to prevent the step from slipping. Not only does the dual clamping system make installation simple, it also eases removal for inspection. *Compatible with DART & OEM crosstubes and DART (Apical) Tri-Bag and OEM float systems. Price is per side.

Key Features

  • Full-length
  • Self-locking clamping system

Key Benefits

  • Lightweight
  • Torsionally stiffer
  • Won't roll or rotate when stepped on
  • Duplex clamping system prevents step from sliding down and eases installation/removal

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-785/2021 206A/206B/206L/407 STC for D206-628 steps
STC ANAC - Brazil 2009S08-23 206A/206B/206L1/206L3/206L4 Heli-Access-Step™, Crew Step, Maintenance Step
STC EASA - Europe EASA.IM.R.S.01339 206A/206B/206L1/206L3/206L4/407 Heli-Access-Step™, Crew Step, Maintenance Step
STC FAA - USA SA00500SE 206A/206B/206L/206L1/206L3/206L4/407 Heli-Access-Step™, Crew Step, Maintenance Step
STC TCCA - Canada SH98-14 206A/B/206L/206L1/206L3/206L4/407 Heli-Access-Step™, Crew Step, Maintenance Step
STC FAA - USA SR00915SE OH-58A/OH-58A+/OH-58C Heli-Access-Step™

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

DART & OEM Crosstubes; OEM Float Systems; DART Tribag; DART Kwik Float

Not Compatible With

Quick Release Pin: DSI 9235-011

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 7.83 lbs / 3.55 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
