Description

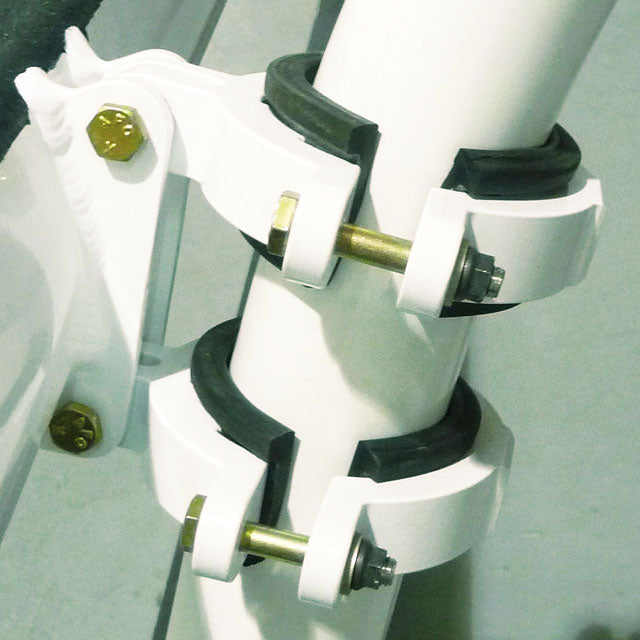

DART recognizes the industry need for lightweight steps that are strong and functional. Our steps are torsionally stiffer than other steps on the market eliminating rolling or rotation of the steps. They install on the crosstubes with a unique duplex clamping system that self-locks when weight is applied to prevent the step from slipping. Not only does the dual clamping system make installation simple, it also eases removal for inspection.
*Compatible with DART & OEM crosstubes. Price is per side.
Key Features
- Full-length
- Self-locking clamping system
Key Benefits
- Lightweight
- Torsionally stiffer
- Won't roll or rotate when stepped on
- Duplex clamping system prevents step from sliding down and eases installation/removal
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DGCA - Mexico | IA-785/2021 | 206A/206B/206L/407 | STC for D206-628 steps |
| STC | ANAC - Brazil | 2009S08-23 | 206A/206B/206L1/206L3/206L4 | Heli-Access-Step™, Crew Step, Maintenance Step |
| STC | ANAC - Brazil | 2009S08-24 | 407 | Heli-Access-Step™ |
| STC | EASA - Europe | EASA.IM.R.S.01339 | 206A/206B/206L1/206L3/206L4/407 | Heli-Access-Step™, Crew Step, Maintenance Step |
| STC | FAA - USA | SA00500SE | 206A/206B/206L/206L1/206L3/206L4/407 | Heli-Access-Step™, Crew Step, Maintenance Step |
| STC | TCCA - Canada | SH98-14 | 206A/B/206L/206L1/206L3/206L4/407 | Heli-Access-Step™, Crew Step, Maintenance Step |
